1976 Kawasaki KV100-A7 Taillight Diagram

← All diagrams

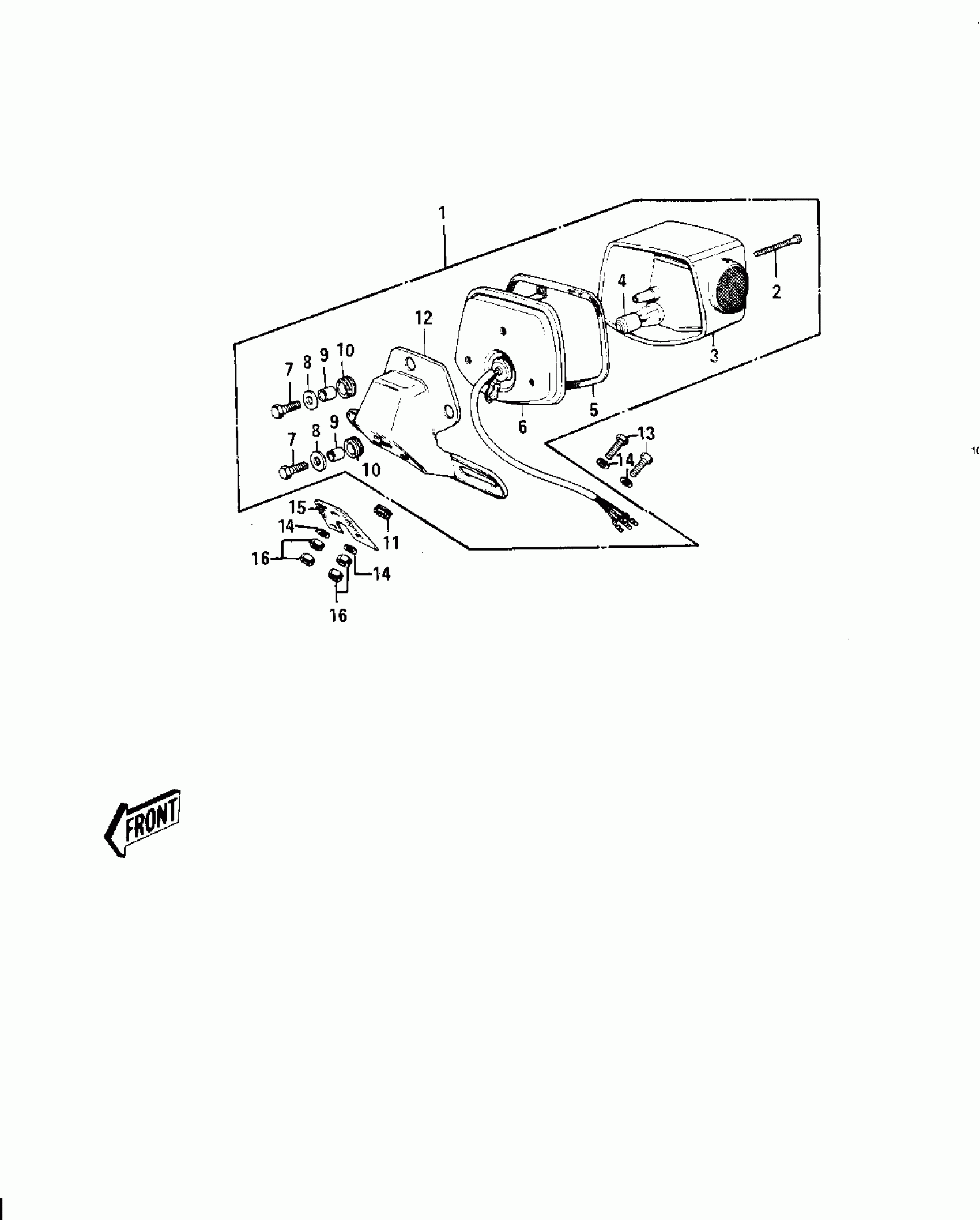

Find the part on the Taillight diagram for your 1976 Kawasaki KV100-A7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Kawasaki KV100-A7 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY,TAIL

23024-044

1
Out of stock

2

SCREW

220R0455

1
Out of stock

3

LENS,TAIL LAMP

23026-028

1
Out of stock

4

BULB,6V 32/3CP

92069-074

1
Out of stock

5

GASKET,TAIL LAMP LENS

23028-019

1
Out of stock

6

BODY COMP TAIL LAMP

23027-1018

1
Out of stock

7

BOLT-UPSET,6X20

112G0620

1
Out of stock

8

WASHER,6.5X20X1.6,WHITE

92022-193

1
Out of stock

9

COLLAR,6.8X10X8.5

92027-129

1
Out of stock

10

DAMPER RUBBER

92075-076

1
Out of stock

11

GROMMET,10MM

92071-019

1
Out of stock

12

BRACKET,TAIL LAMP

23036-035

1
Out of stock

13

BOLT-UPSET

112G0630

1
Out of stock

14

WASHER,6.5X20X1.6

92022-125

1
Out of stock

15

DAMPER-TAIL LAMP SHCK

35039-005

1
Out of stock

16

NUT 6MM

312B0600

1
Out of stock
