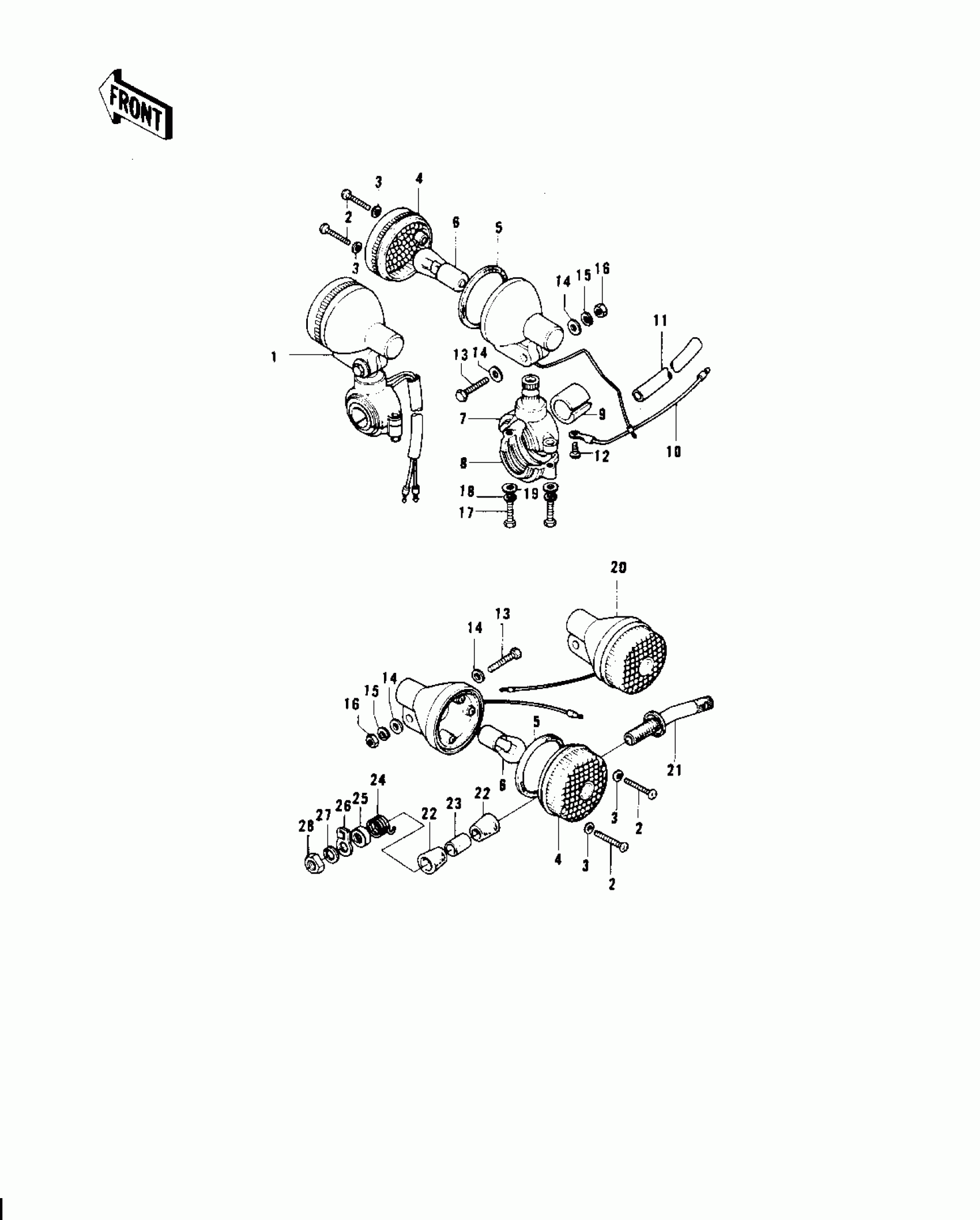

Kawasaki KV100-A7 TURN SIGNALS ('74-'75) Diagram

#

Description
Price

1

LAMP ASY-FR TURN SIG

23037-005

Unavailable

2

SCREW-PAN HEAD,4X20

220E0420A

$2.25

3

WASHER,PLAIN,4MM

23058-002

$1.77

4

LENS-SIGNAL LAMP,"045-6588"

23048-1001

$8.05

5

GASKET,SIGNAL LAMP

23050-003

$4.39

6

BULB,6V 21CP

92069-056

$4.86

7

BRACKET-SIGNAL LAMP,FR

23051-1013

$20.88

7

BRACKET-SIGNAL LAMP,FR

23051-1013

$20.88

8

BRACKET-SIGNAL LAMP,FR

23051-1004

Unavailable

8

BRACKET-SIGNAL LAMP,FR

23051-1004

Unavailable

9

DAMPER

23066-003

$7.58

10

WIRE-LEAD,SIGNAL LAMP

26011-061

Unavailable

11

COVER-WIRING HARNESS

26009-004

Unavailable

12

SCREW PAN HEAD 3X5

220B0305A

$0.54

13

BOLT-UPSET

112G0630

Unavailable

14

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

15

WASHER SPRING 6MM

461F0600

Unavailable

16

NUT 6MM

311B0600

Unavailable

17

BOLT

110N0516

Unavailable

18

WASHER SPRING 5MM

461F0500

Unavailable

19

WASHER-PLAIN-SMALL,5MM

410D0500

$1.20

20

LAMP-REAR TURN SIGNAL

23040-033

Unavailable

21

BKT-RR SIGNAL LAMP

23051-037

$42.09

22

DAMPER RUBBER

92075-148

Unavailable

23

COLLAR 12.7X17.3X30

92027-168

Unavailable

24

SPRING

92081-111

Unavailable

25

WASHER CUP 12.5X35X4T

92022-235

Unavailable

26

CLAMP-RR SIGNAL LAMP

92037-087

Unavailable

27

WASHER-SPRING,12MM

461F1200

Unavailable

28

NUT-HEX-FINE

315B1200

Unavailable
