2003 Kawasaki KLX400SR Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 2003 Kawasaki KLX400SR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

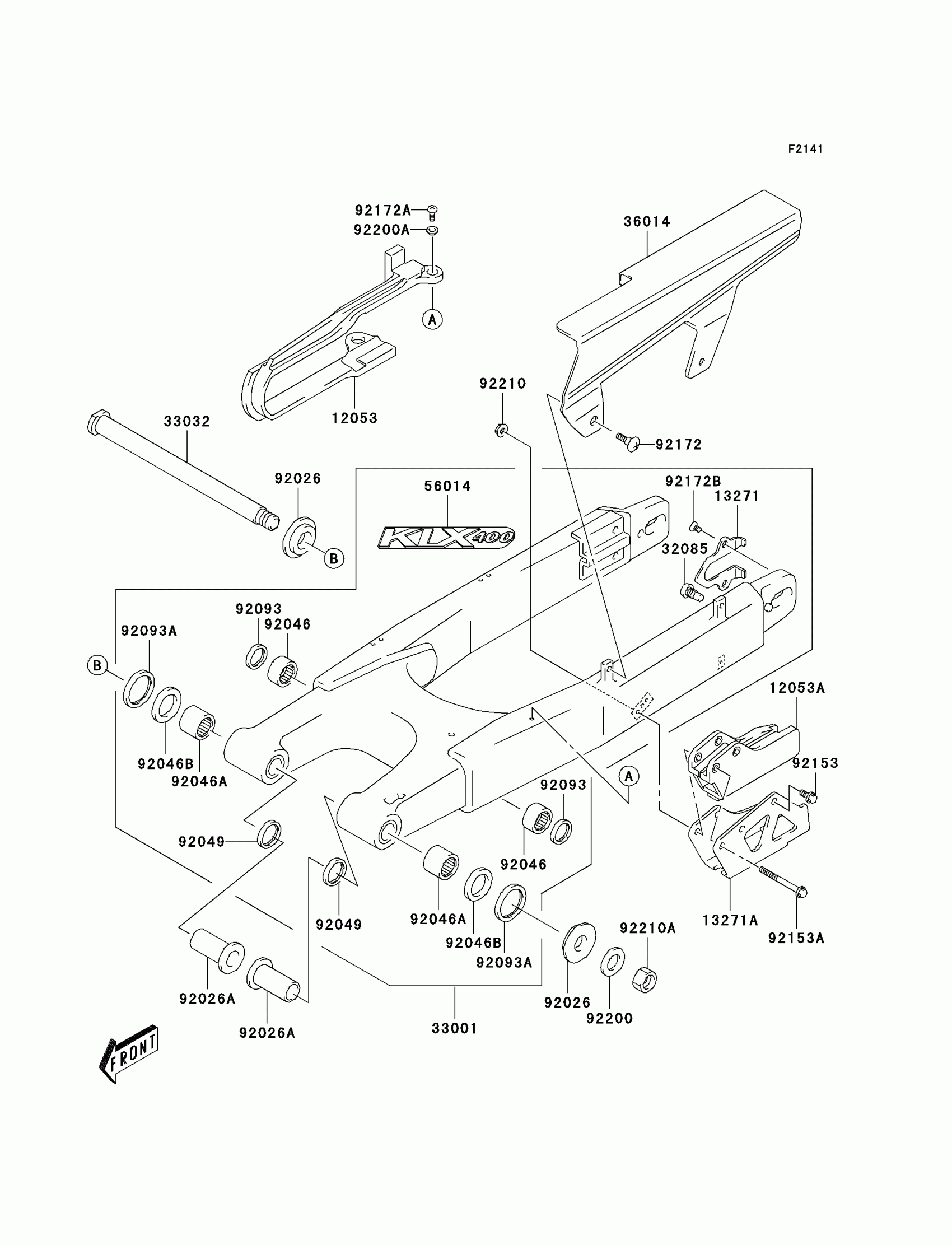

2003 Kawasaki KLX400SR Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12053

GUIDE-CHAIN

12053-S020

1
Out of stock

12053A

GUIDE-CHAIN

12053-S021

1
Out of stock

13271

PLATE

13271-S060

1
Out of stock

13271A

PLATE,CHAIN GUIDE

13271-S063

1
Out of stock

32085

STOPPER,CHAIN ADJUSTER

32085-S016

1
Out of stock

33001

ARM-COMP-SWING

33001-S008

1
Out of stock

33032

SHAFT-SWING ARM

33032-S005

1
Out of stock

36014

CASE-CHAIN

36014-S007

1
Out of stock

56014

EMBLEM,SWGARM,BLACK/GOLD

56014-S022-566

1
Out of stock

92026

SPACER

92026-S121

1
Out of stock

92026A

SPACER

92026-S130

1
Out of stock

92046

BEARING-NEEDLE

92046-S018

1
Out of stock

92046A

BEARING-NEEDLE,SWING ARM

92046-S019

1
Out of stock

92046B

BEARING-NEEDLE,22X35X2

92046-S023

1
Out of stock

92049

SEAL-OIL,SWING ARM

92049-S053

1
Out of stock

92093

SEAL

92093-S041

1
Out of stock

92093A

SEAL,29.2X37X4

92093-S045

1
Out of stock

92153

BOLT

92153-S144

1
Out of stock

92153A

BOLT

92153-S335

1
Out of stock

92172

SCREW,6X16

92172-S073

1
Out of stock

92172A

SCREW

92172-S110

1
Out of stock

92172B

SCREW,5X8

92172-S209

1
Out of stock

92200

WASHER

92200-S030

1
Out of stock

92200A

WASHER

92200-S200

1
Out of stock

92210

NUT

92210-S054

1
Out of stock

92210A

NUT

92210-S133

1
Out of stock
