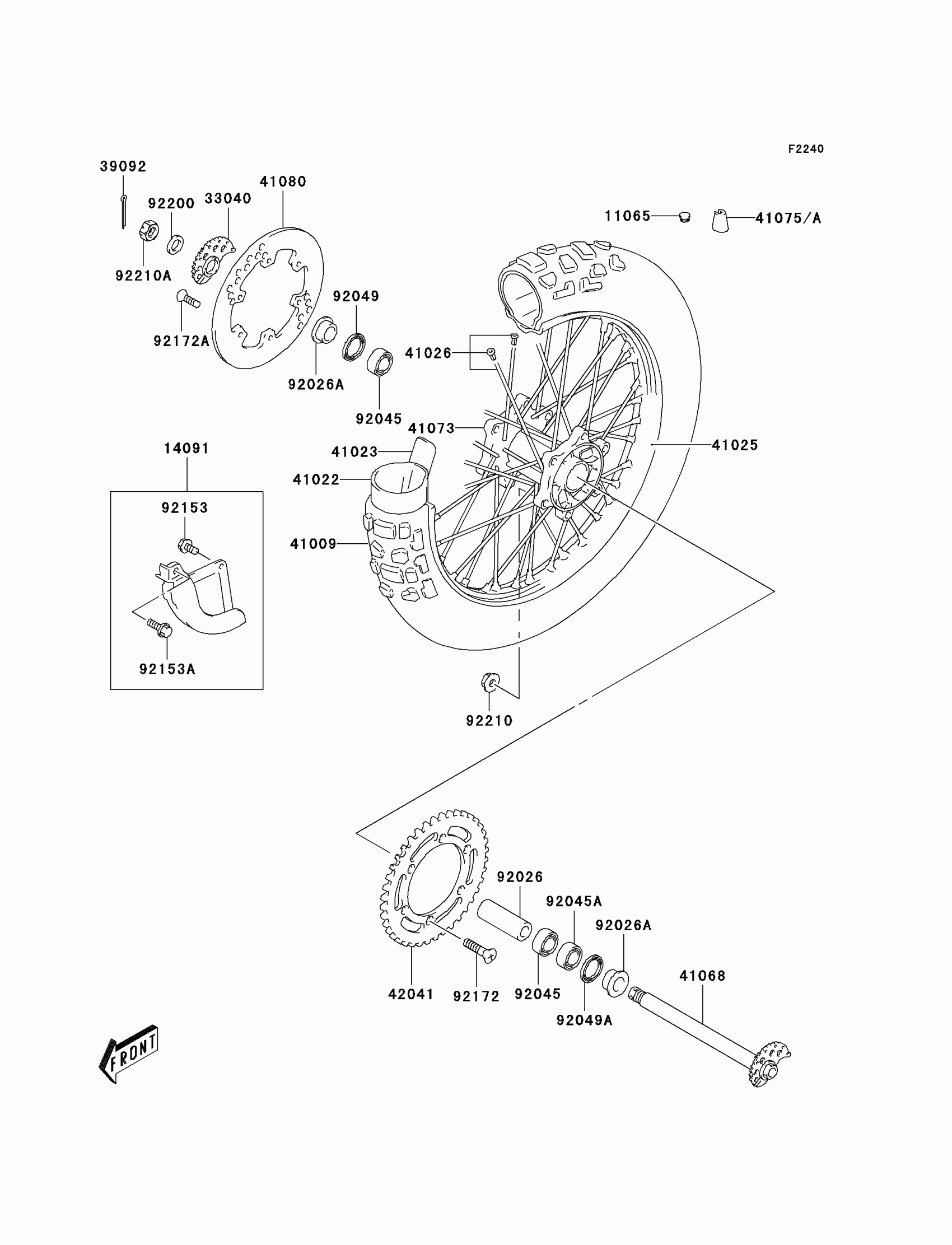

Kawasaki KLX400SR (Canada Only) Rear Hub Diagram

#

Description
Price

11065

CAP,STOPPER HANDLE

11065-S027

$2.31

14091

COVER,DISC

14091-S100

$31.02

33040

ADJUSTER-CHAIN

33040-S004

$23.12

39092

PIN-HAIR,REAR AXLE

39092-S008

Unavailable

41009

TIRE,120/90-18 65P

41009-S016

Unavailable

41022

TUBE-TIRE

41022-S007

$58.12

41023

BAND-RIM

41023-S007

$6.12

41025

RIM,2.15X18

41025-S012

$360.95

41026

SPOKE-ASSY,RR

41026-S007

$84.55

41068

AXLE,RR

41068-S013

$120.79

41073

WHEEL-ASSY,RR

41073-S006

$366.86

41075

BALANCER-WHEEL

41075-S004

$4.81

41075A

BALANCER-WHEEL

41075-S005

$4.81

41080

DISC,RR

41080-S008

$241.62

42041

SPROCKET-HUB,44T

42041-S008

$79.72

92026

SPACER

92026-S133

$25.02

92026A

SPACER

92026-S134

$33.60

92045

BEARING-BALL

92045-S059

$27.56

92045A

BEARING-BALL

92045-S060

$25.05

92049

SEAL-OIL,29X42X6

92049-S009

$10.76

92049A

SEAL-OIL,29X47X5

92049-S060

$9.78

92153

BOLT

92153-S011

$1.42

92153A

BOLT

92153-S013

$1.64

92172

SCREW,SPROCKET

92172-S111

$2.44

92172A

SCREW,6X17.5

92172-S210

$3.53

92200

WASHER

92200-S201

$5.27

92210

NUT

92210-S094

$2.97

92210A

NUT

92210-S134

Unavailable
