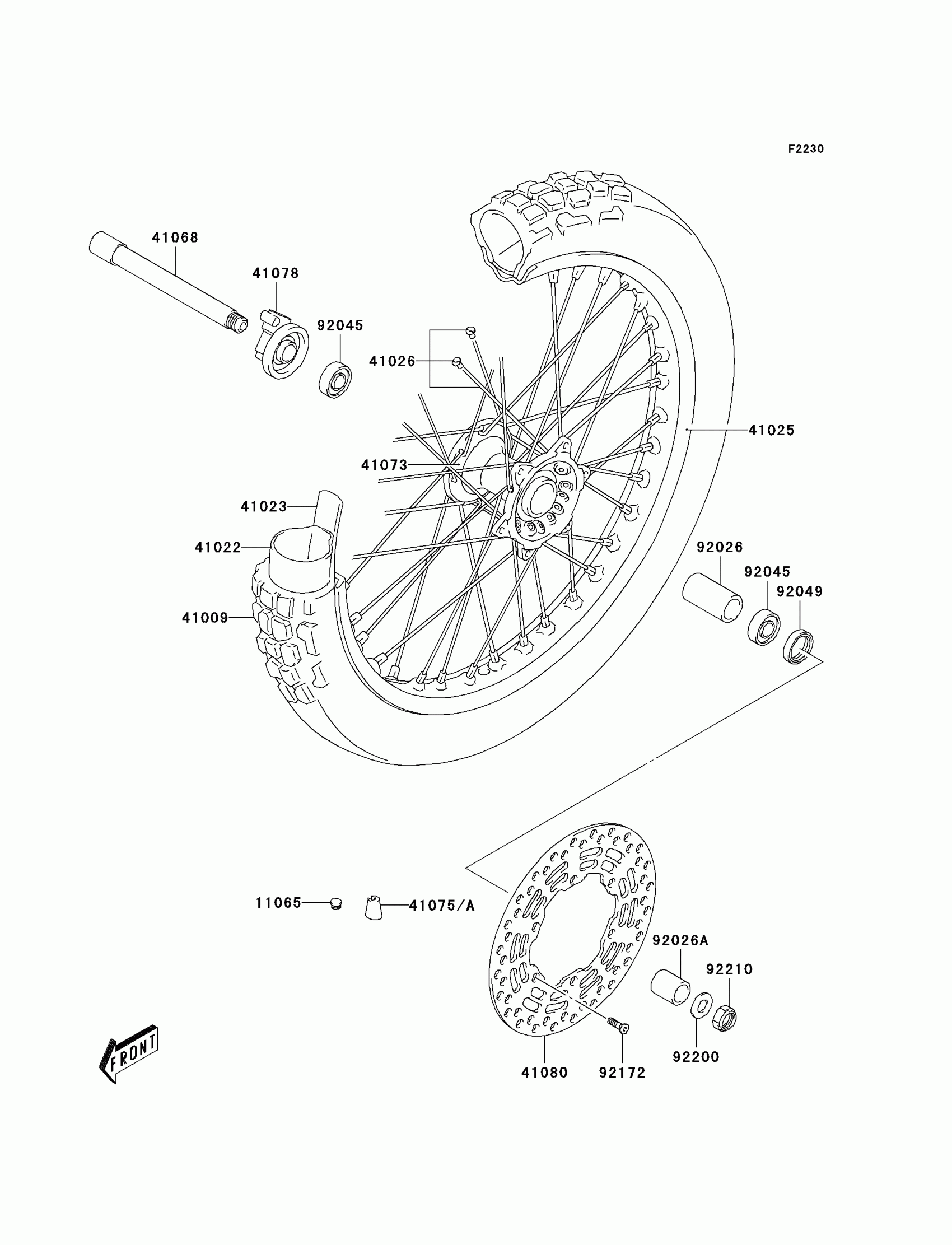

Kawasaki KLX400SR (Canada Only) Front Hub Diagram

Description

Price

11065

CAP,STOPPER HANDLE

11065-S027

$2.31

41009

TIRE,80/100-21 51P

41009-S015

Unavailable

41022

TUBE-TIRE

41022-S006

$39.07

41023

BAND-RIM

41023-S006

Unavailable

41025

RIM,1.60X21

41025-S011

$310.84

41026

SPOKE-ASSY,FR

41026-S006

Unavailable

41068

AXLE,FR

41068-S012

$86.29

41073

WHEEL-ASSY,FR

41073-S007

$240.93

41075

BALANCER-WHEEL

41075-S004

$4.81

41075A

BALANCER-WHEEL

41075-S005

$4.81

41078

CASE-ASSY-METER GEAR

41078-S002

$107.01

41080

DISC,FR

41080-S007

$225.97

92026

SPACER,20.5X27.3X70

92026-S128

$23.22

92026A

SPACER

92026-S129

$19.51

92045

BEARING-BALL

92045-S061

$51.02

92049

SEAL-OIL,25X37X6

92049-S059

$8.65

92172

SCREW,6X17.5

92172-S210

$3.53

92200

WASHER

92200-S199

$2.68

92210

NUT

92210-S132

$16.00
