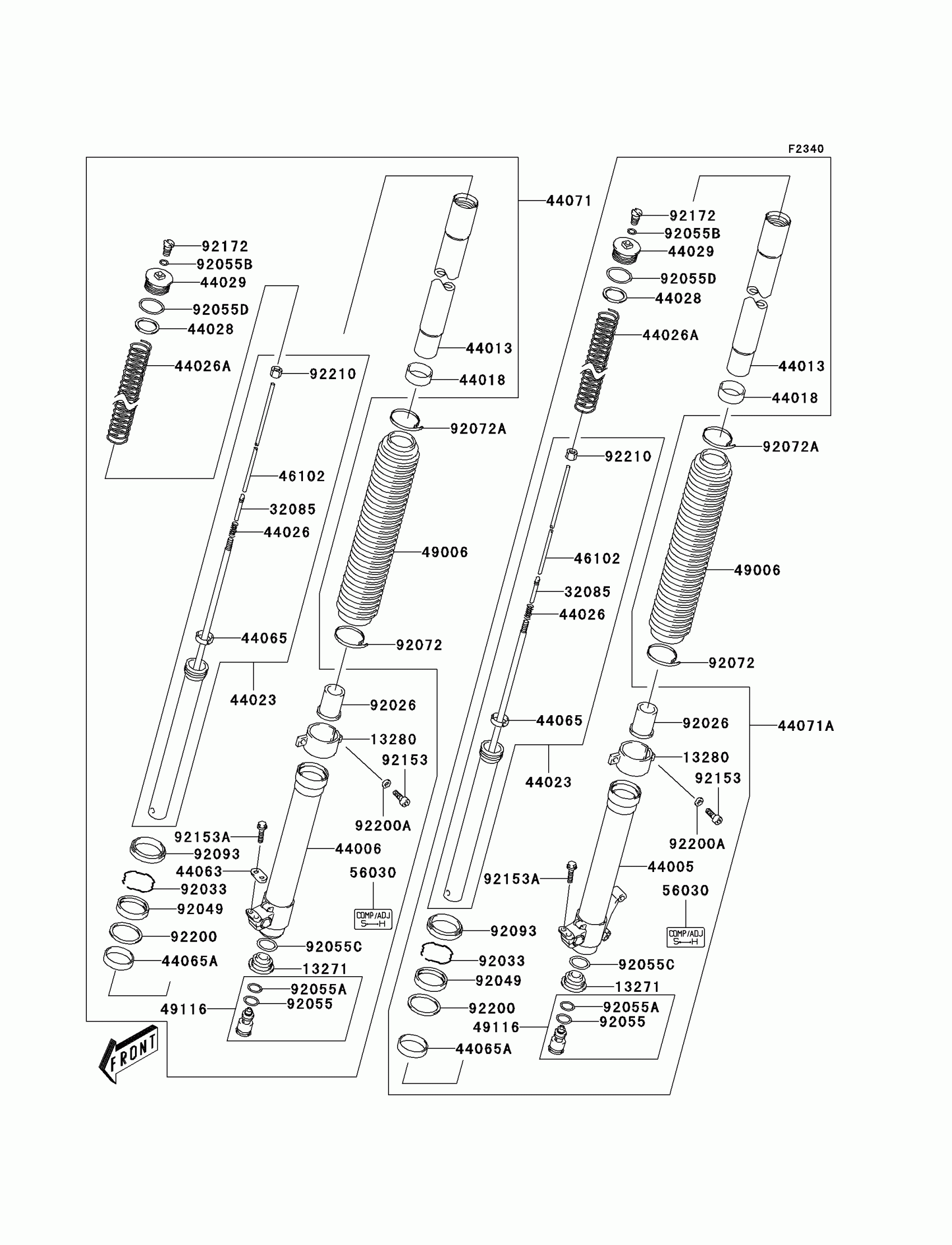

Kawasaki KLX400SR (Canada Only) Front Fork Diagram

#

Description
Price

13271

PLATE

13271-S059

$65.82

13280

HOLDER,BOOT

13280-S030

$42.86

32085

STOPPER,NEEDLE

32085-S015

$18.75

44005

PIPE-LEFT FORK OUTER,LH

44005-S008

$777.76

44006

PIPE-RIGHT FORK OUTER,RH

44006-S008

$777.76

44013

PIPE-FORK INNER

44013-S006

$586.88

44018

PISTON-FORK

44018-S004

$35.27

44023

CYLINDER-SET-FORK

44023-S003

$520.05

44026

SPRING-FRONT FORK

44026-S009

$5.53

44026A

SPRING-FRONT FORK

44026-S010

$107.01

44028

GUIDE-FORK SPRING

44028-S003

$10.17

44029

SEAT-FORK SPRING

44029-S002

$133.05

44063

HOLDER-FRONT AXLE

44063-S001

Unavailable

44065

BUSHING-FRONT FORK

44065-S002

$17.36

44065A

BUSHING-FRONT FORK

44065-S003

$25.20

44071

DAMPER-ASSY,RH

44071-S007

$1,764.54

44071A

DAMPER-ASSY,LH

44071-S008

$1,764.54

46102

ROD

46102-S004

$67.80

49006

BOOT,BLACK

49006-S032-503

$96.70

49116

VALVE-ASSY

49116-S004

$228.42

56030

LABEL

56030-S012

$5.44

92026

SPACER

92026-S127

$72.63

92033

RING-SNAP

92033-S051

$8.80

92049

SEAL-OIL

92049-S058

$35.50

92055

RING-O

92055-S075

$5.39

92055A

RING-O

92055-S076

$5.39

92055B

RING-O

92055-S077

$4.17

92055C

RING-O

92055-S078

$5.75

92055D

RING-O

92055-S079

$6.25

92072

BAND,BOOT

92072-S008

$17.03

92072A

BAND,BOOT

92072-S010

$18.69

92093

SEAL

92093-S044

$34.55

92153

BOLT

92153-S350

$2.49

92153A

BOLT,8X35

92153-S351

$4.25

92172

SCREW,PLUG

92172-S198

$13.14

92200

WASHER,SEAL

92200-S196

$8.78

92200A

WASHER

92200-S197

$1.75

92210

NUT

92210-S124

$14.93
