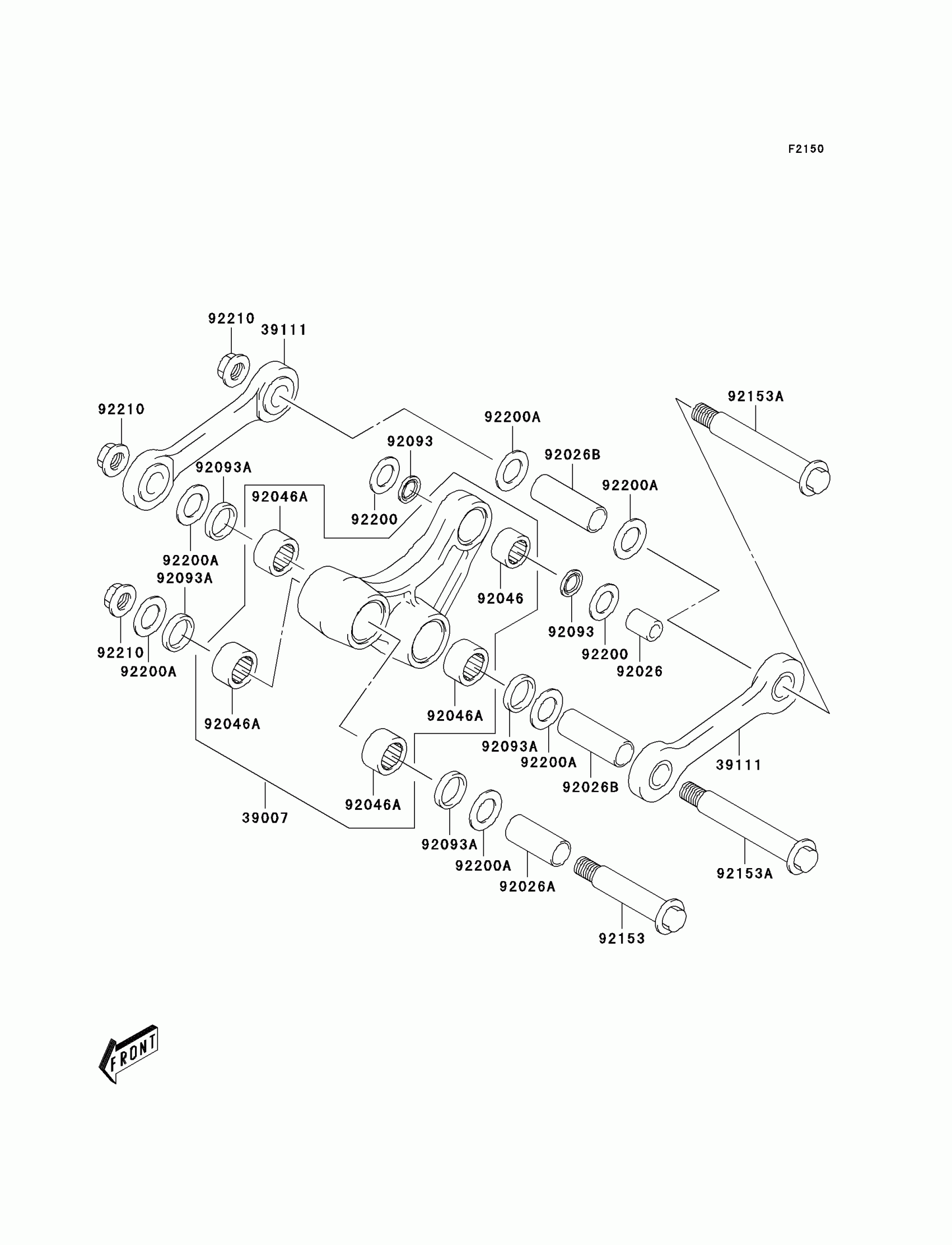

Kawasaki KLX400SR (Canada Only) Rear Suspension Diagram

Description

Price

39007

ARM-SUSP

39007-S013

$366.86

39111

ROD-TIE

39111-S005

$135.52

92026

SPACER,REAR CUSHION

92026-S046

Unavailable

92026A

SPACER,15X20X45

92026-S131

$21.31

92026B

SPACER,15X20X57.4

92026-S132

$21.31

92046

BEARING-NEEDLE,16X22X12

92046-S009

$19.83

92046A

BEARING-NEEDLE

92046-S018

$17.46

92093

SEAL,REAR CUSHION

92093-S010

$6.75

92093A

SEAL

92093-S041

$5.98

92153

BOLT,12X76

92153-S356

$16.83

92153A

BOLT,12X100

92153-S357

$20.51

92200

WASHER

92200-S081

$4.78

92200A

WASHER,20X32.5X1.6

92200-S180

$3.98

92210

NUT

92210-S106

$7.63
