2004 Kawasaki KLX400SR (Canada Only) Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2004 Kawasaki KLX400SR (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

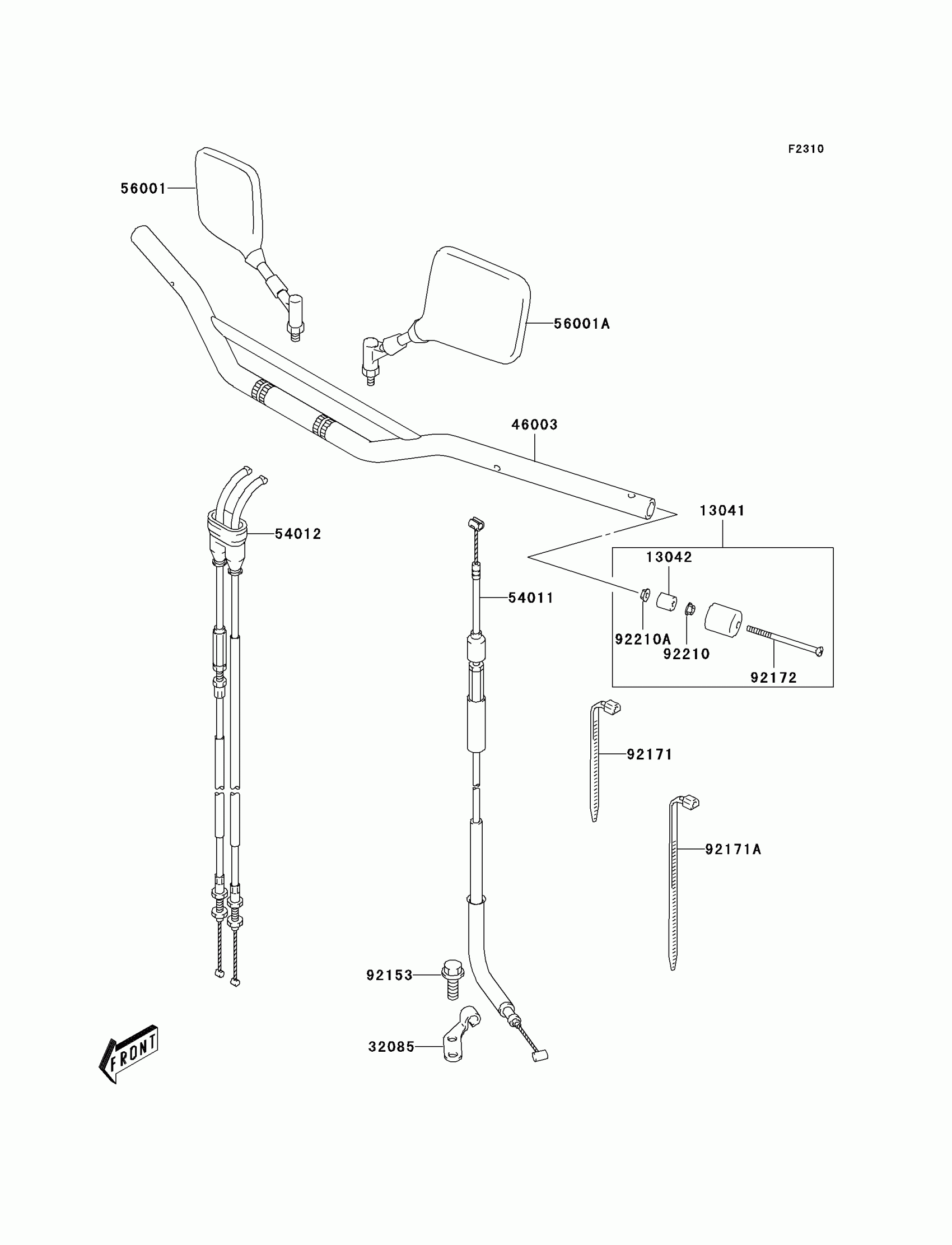

2004 Kawasaki KLX400SR (Canada Only) Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13041

BALANCER,HANDLEBAR

13041-S004

1
Out of stock

13042

1

$4.49

In stock

32085

1

$11.58

In stock

46003

HANDLE,B.SILVER

46003-S010-530

1

$128.23

In stock

54011

CABLE-CLUTCH

54011-S003

1

$34.04

In stock

54012

CABLE-THROTTLE

54012-S010

1
Out of stock

56001

MIRROR-ASSY,RH

56001-S009

1

$68.46

In stock

56001A

MIRROR-ASSY,LH

56001-S010

1

$68.46

In stock

92153

BOLT,CABLE GUIDE

92153-S259

1

$1.81

In stock

92171

CLAMP,L=145

92171-S015

1

$2.90

In stock

92171A

CLAMP,L=235

92171-S018

1

$4.97

In stock

92172

1

$1.86

In stock

92210

NUT

92210-S026

1
Out of stock

92210A

NUT

92210-S034

1
Out of stock
