2004 Kawasaki KLX400SR (Canada Only) Handle Lever Diagram

← All diagrams

Find the part on the Handle Lever diagram for your 2004 Kawasaki KLX400SR (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

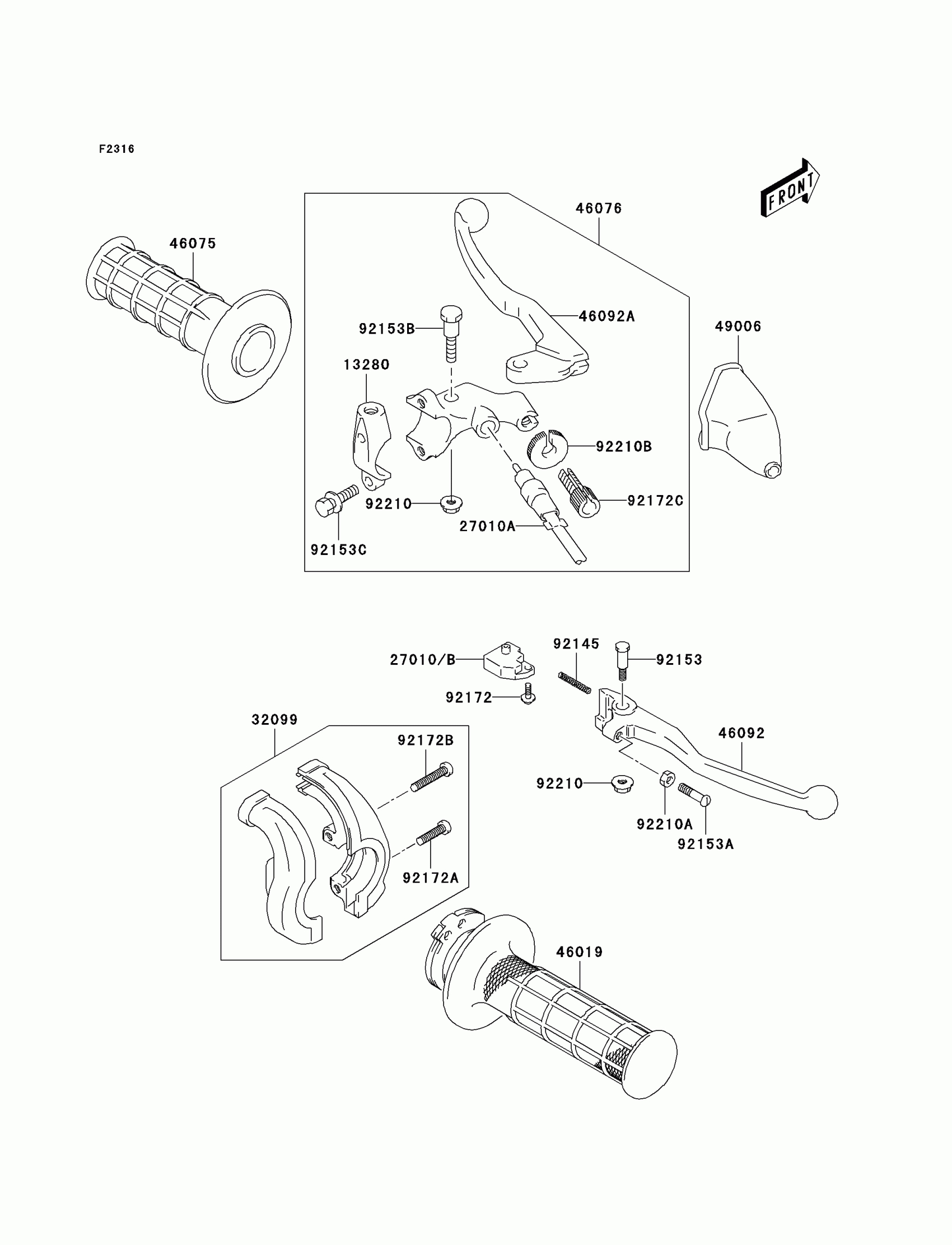

2004 Kawasaki KLX400SR (Canada Only) Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13280

HOLDER

13280-S032

1
Out of stock

27010A

SWITCH,CLUTCH

27010-S034

1
Out of stock

27010B

SWITCH,STOP

27010-S038

1
Out of stock

32099

CASE,THROTTLE

32099-S008

1
Out of stock

46019

GRIP-ASSY,THROTTLE

46019-S005

1
Out of stock

46075

GRIP,LH

46075-S008

1
Out of stock

46076

LEVER-ASSY-GRIP,CLUTCH

46076-S009

1
Out of stock

46092

LEVER-GRIP,BRAKE

46092-S013

1
Out of stock

46092A

LEVER-GRIP,CLUTCH

46092-S014

1
Out of stock

49006

BOOT,CLUTCH CABLE

49006-S030

1
Out of stock

92145

SPRING,RETURN

92145-S052

1
Out of stock

92153

BOLT

92153-S170

1
Out of stock

92153A

BOLT

92153-S171

1
Out of stock

92153B

BOLT

92153-S345

1
Out of stock

92153C

BOLT

92153-S346

1
Out of stock

92172

SCREW

92172-S053

1
Out of stock

92172A

SCREW

92172-S133

1
Out of stock

92172B

SCREW

92172-S155

1
Out of stock

92172C

SCREW,ADJUSTER

92172-S206

1
Out of stock

92210

NUT

92210-S053

1
Out of stock

92210A

NUT

92210-S065

1
Out of stock

92210B

NUT,LOCK

92210-S128

1
Out of stock
