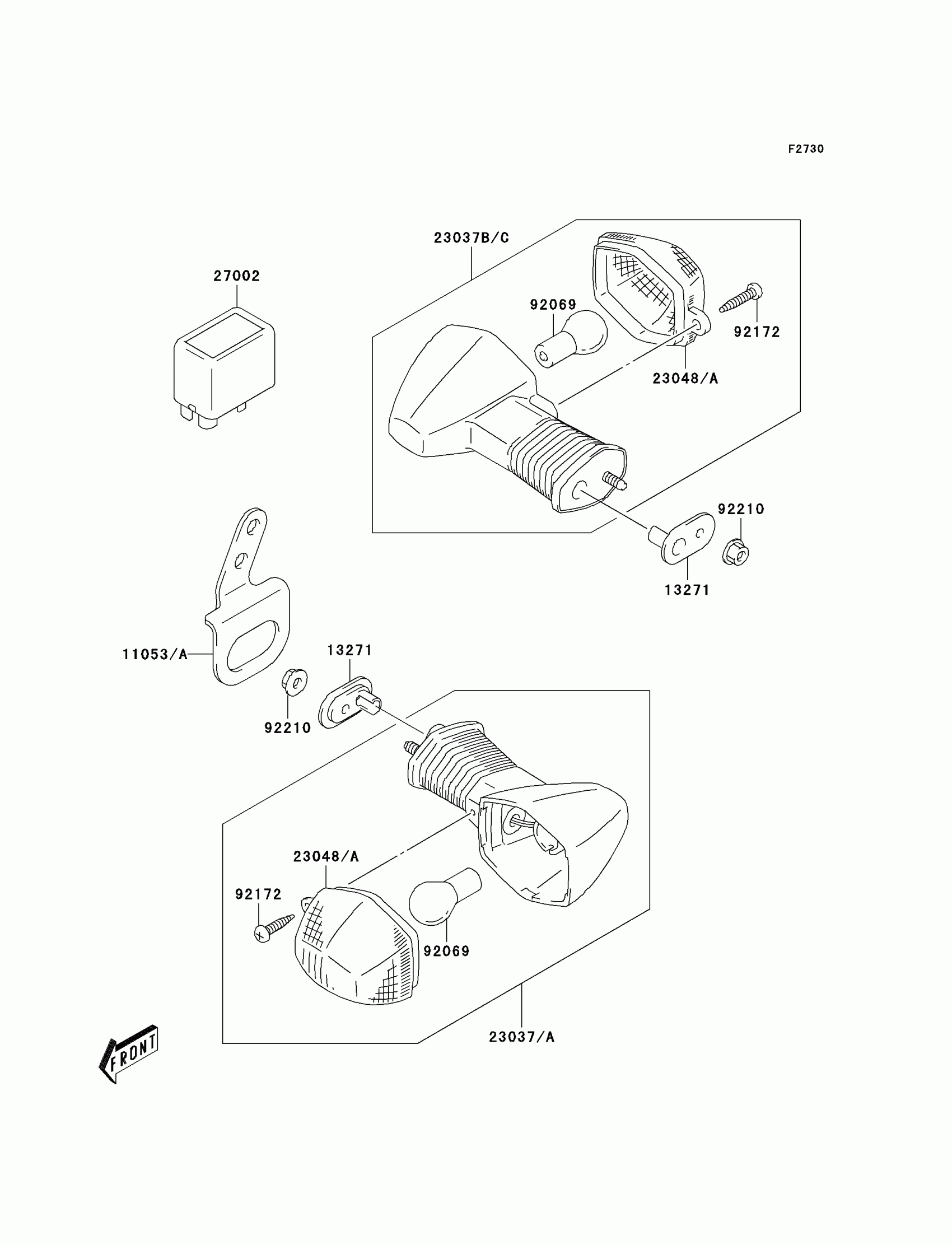

Kawasaki KLX400SR (Canada Only) Turn Signals Diagram

Description

Price

11053

BRACKET,TURNSIGNAL,RH

11053-S031

$8.24

11053A

BRACKET,TURNSIGNAL,LH

11053-S032

$8.24

13271

PLATE,TURNSIGNAL

13271-S057

$4.97

23037

LAMP-ASSY-SIGNAL,FR,RH

23037-S003

$56.73

23037A

LAMP-ASSY-SIGNAL,FR,LH

23037-S004

$56.73

23037B

LAMP-ASSY-SIGNAL,RR,RH

23037-S005

$56.73

23037C

LAMP-ASSY-SIGNAL,RR,LH

23037-S006

Unavailable

23048

LENS-SIGNAL LAMP,LH

23048-S004

$9.86

23048A

LENS-SIGNAL LAMP,RH

23048-S005

$11.41

27002

RELAY-ASSY

27002-S003

$113.74

92069

BULB,12V,21W

92069-S001

$3.81

92172

SCREW

92172-S026

$2.39

92210

NUT

92210-S067

$1.64
