2004 Kawasaki KLX400SR (Canada Only) Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2004 Kawasaki KLX400SR (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

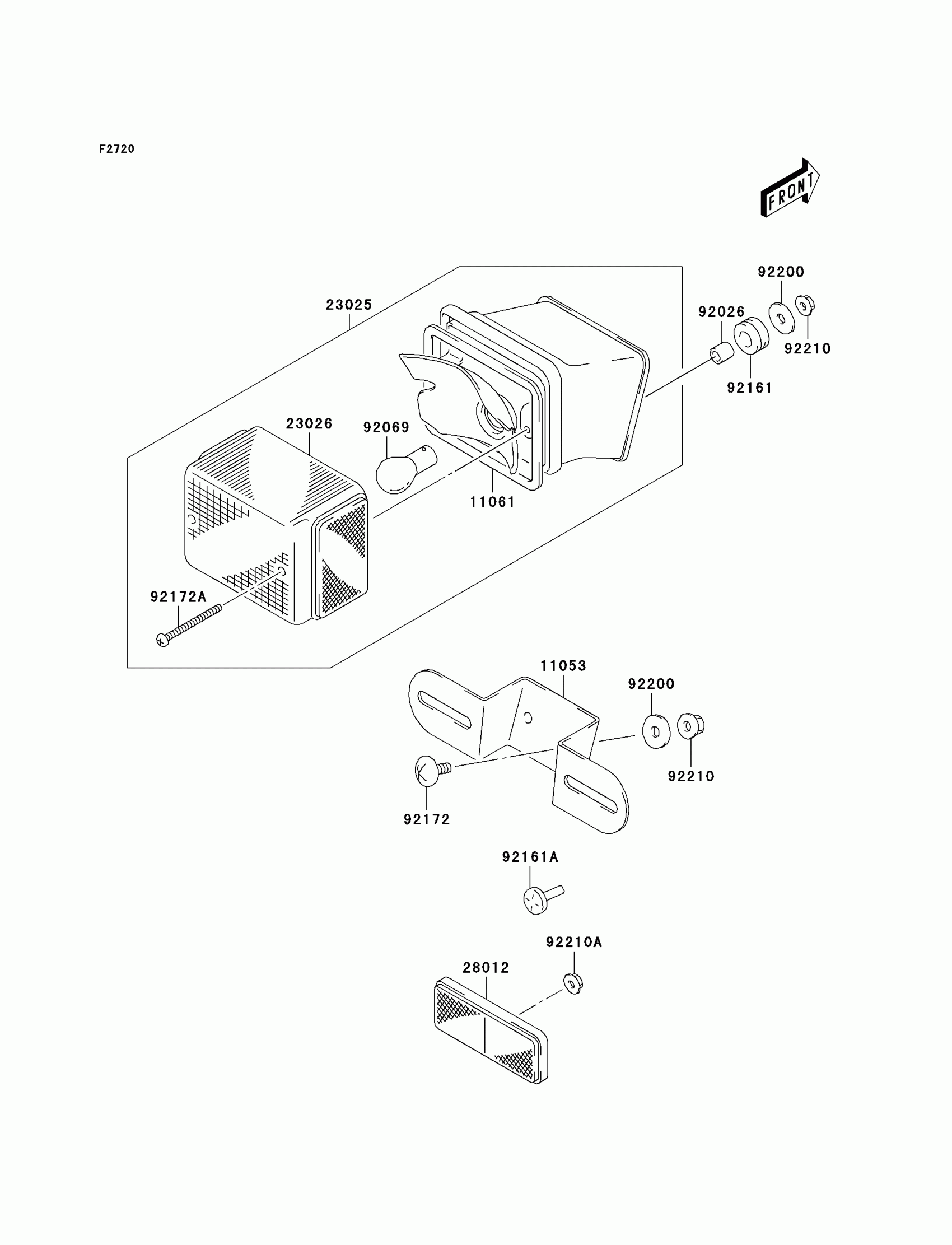

2004 Kawasaki KLX400SR (Canada Only) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053

BRACKET,LICENSE PLATE

11053-S033

1
Out of stock

11061

GASKET,LENS

11061-S089

1
Out of stock

23025

LAMP-TAIL

23025-S005

1
Out of stock

23026

LENS

23026-S014

1
Out of stock

28012

REFLECTOR-REFLEX,RR

28012-S003

1
Out of stock

92026

SPACER,6.5X10X10

92026-S005

1
Out of stock

92069

BULB,12V,21/5W

92069-S004

1
Out of stock

92161

DAMPER

92161-S005

1
Out of stock

92161A

DAMPER,LICENSE PLATE

92161-S129

1
Out of stock

92172

SCREW

92172-S017

1
Out of stock

92172A

SCREW,4X45

92172-S201

1
Out of stock

92200

WASHER,6.5X20X1.6

92200-S006

1
Out of stock

92210

NUT

92210-S004

1
Out of stock

92210A

NUT

92210-S067

1
Out of stock
