2004 Kawasaki KLX400SR (Canada Only) Starter Clutch Diagram

← All diagrams

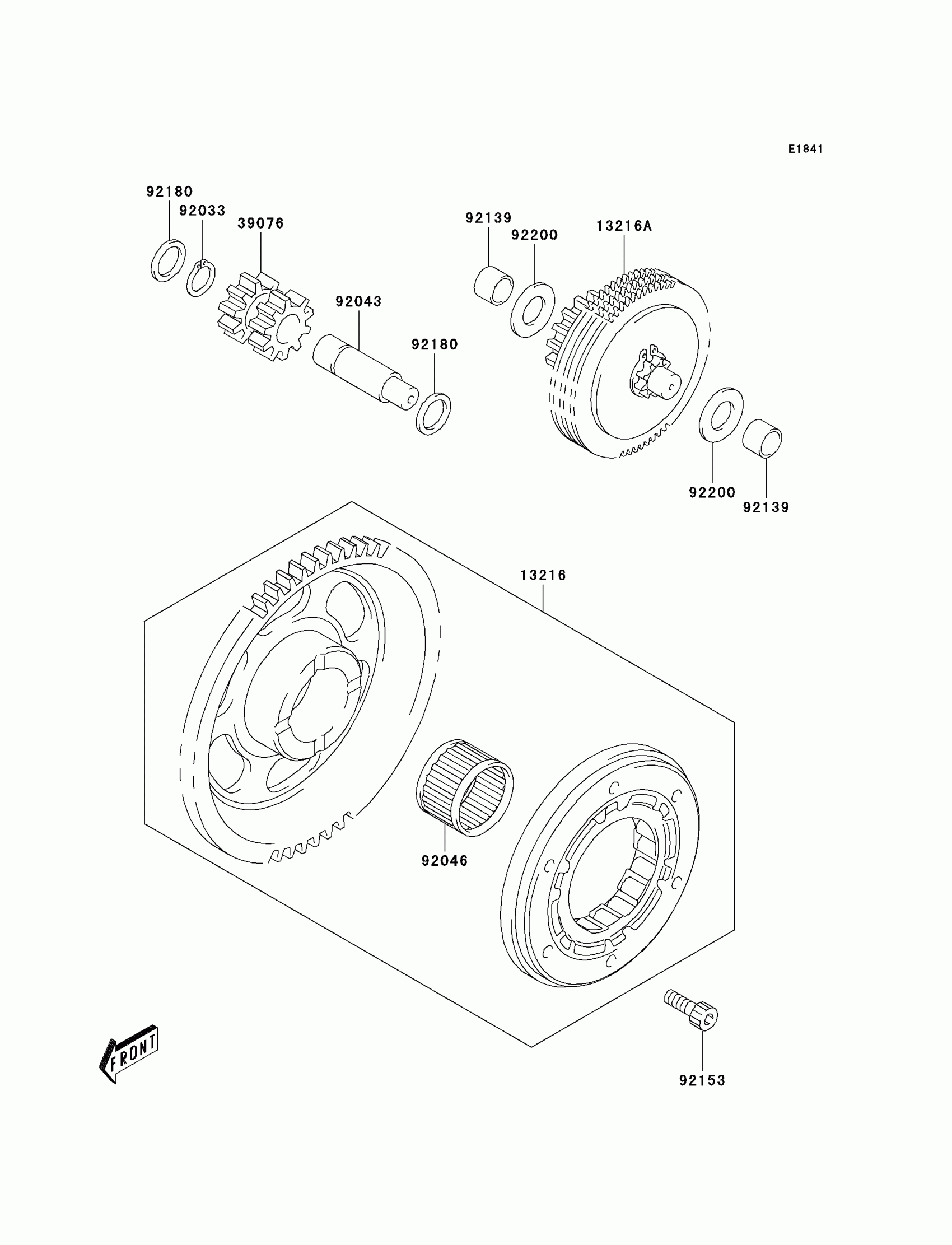

Find the part on the Starter Clutch diagram for your 2004 Kawasaki KLX400SR (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KLX400SR (Canada Only) Starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13216

GEAR-COMP,STARTER

13216-S010

1
Out of stock

13216A

GEAR-COMP,STARTER IDLE GEAR

13216-S011

1
Out of stock

39076

LIMITER,STARTER IDLE

39076-S005

1
Out of stock

92033

RING-SNAP

92033-S023

1
Out of stock

92043

PIN

92043-S052

1
Out of stock

92046

BEARING-NEEDLE,STARTER CLUTCH

92046-S021

1
Out of stock

92139

BUSHING

92139-S024

1
Out of stock

92153

BOLT

92153-S024

1
Out of stock

92180

SHIM,STARTER IDLE GEAR

92180-S010

1
Out of stock

92200

WASHER,LIMITER ASSY

92200-S129

1
Out of stock
← Meter Starter Motor →

More Electrical diagrams
