2004 Kawasaki KLX400SR (Canada Only) Generator Diagram

← All diagrams

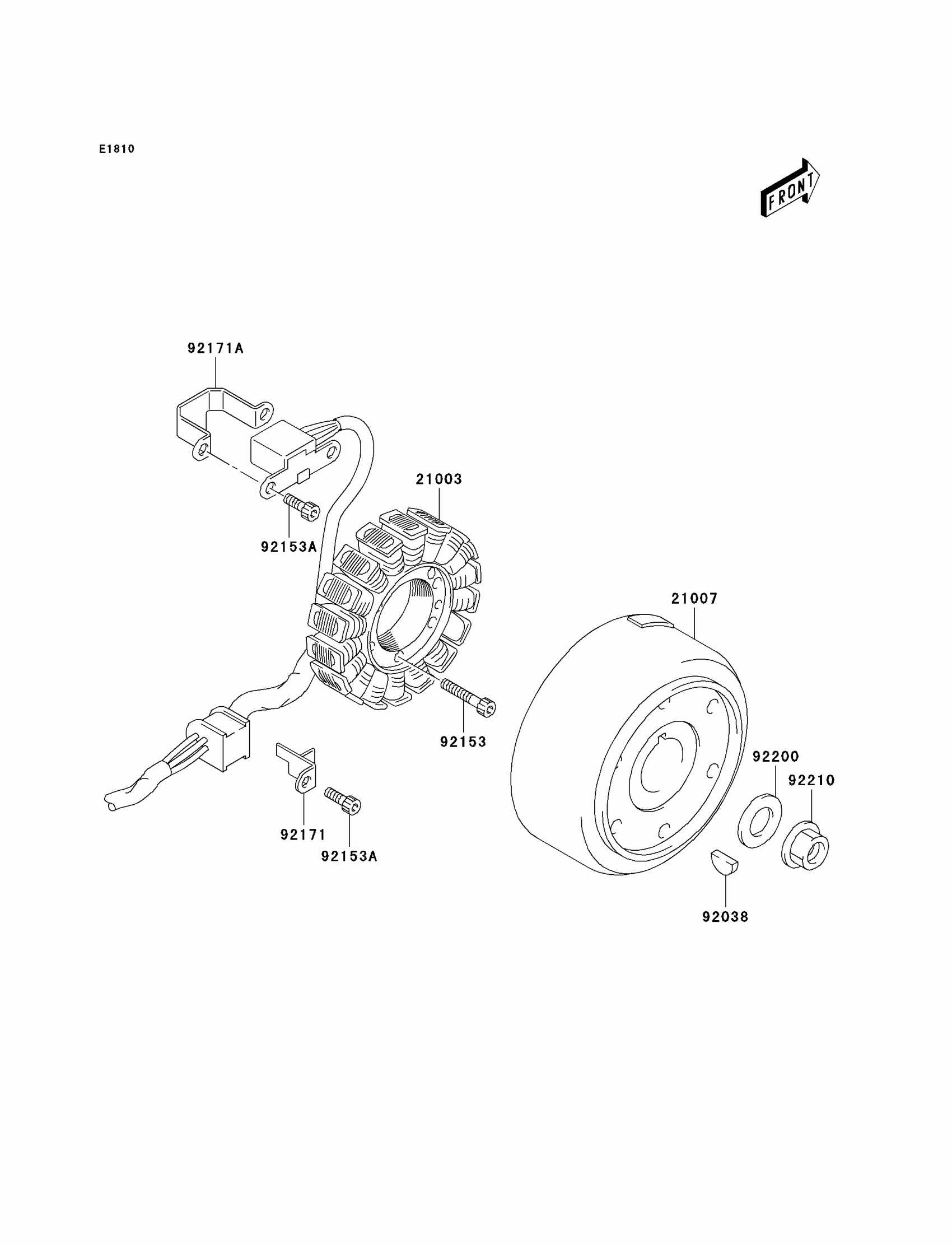

Find the part on the Generator diagram for your 2004 Kawasaki KLX400SR (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KLX400SR (Canada Only) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21003

STATOR

21003-S007

1

$502.54

In stock

21007

ROTOR

21007-S008

1

$485.39

In stock

92038

KEY

92038-S002

1

$3.81

In stock

92153

BOLT

92153-S081

1
Out of stock

92153A

BOLT

92153-S256

1

$1.98

In stock

92171

CLAMP,MAGNETO LEAD

92171-S099

1

$4.10

In stock

92171A

1

$4.97

In stock

92200

WASHER,12X27X2

92200-S189

1
Out of stock

92210

NUT

92210-S127

1
Out of stock
