2004 Kawasaki KLX400SR (Canada Only) Ignition System Diagram

← All diagrams

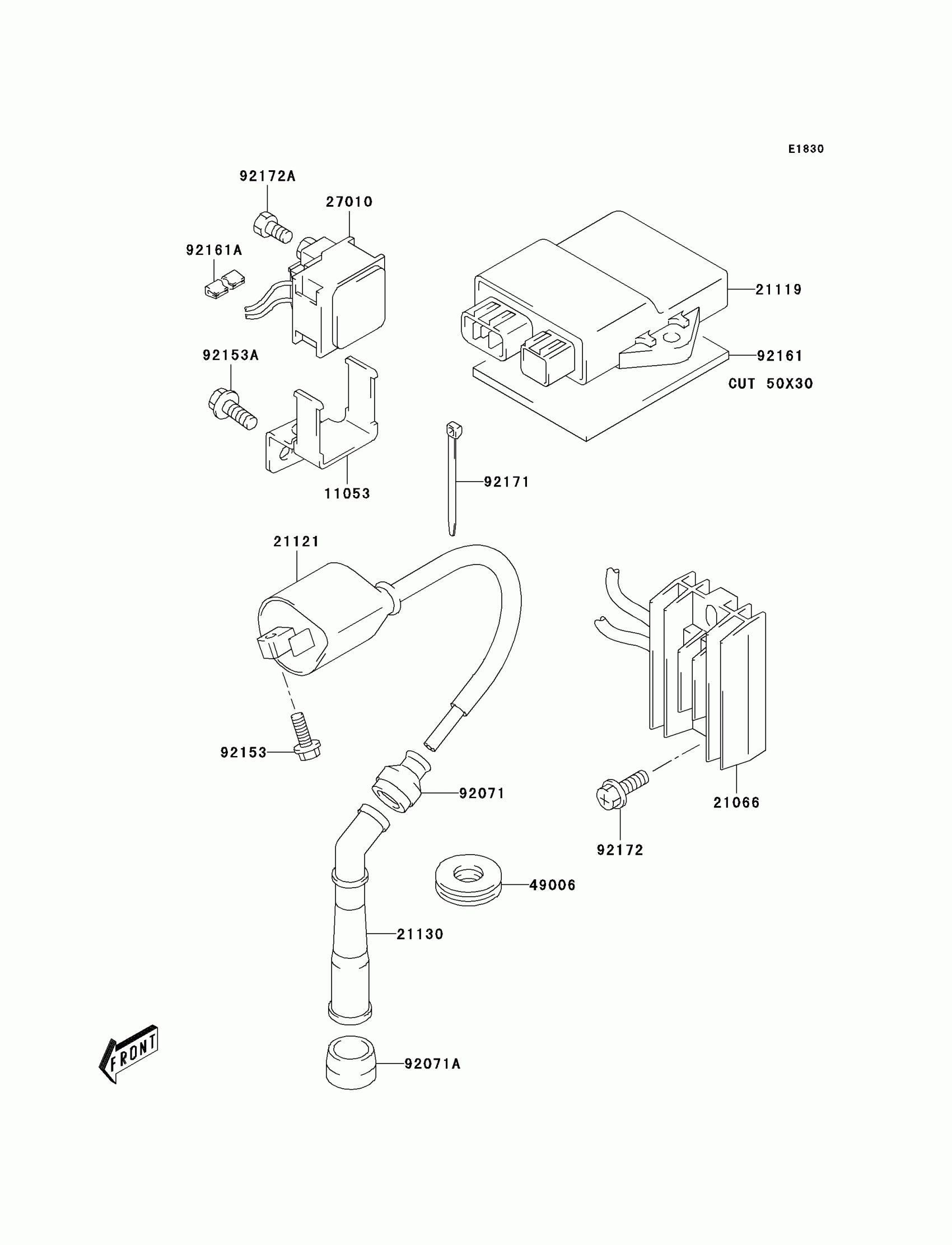

Find the part on the Ignition System diagram for your 2004 Kawasaki KLX400SR (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KLX400SR (Canada Only) Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053

1

$6.20

In stock

21066

REGULATOR-VOLTAGE

21066-S005

1

$204.58

In stock

21119

IGNITER

21119-S006

1

$593.50

In stock

21121

COIL-IGNITION

21121-S006

1

$92.87

In stock

21130

CAP-SPARK PLUG

21130-S006

1

$35.43

In stock

27010

1

$92.96

In stock

49006

BOOT,SPARK PLUG CAP

49006-S020

1

$5.03

In stock

92071

GROMMET,HIGHTENSION

92071-S004

1

$4.81

In stock

92071A

1

$5.05

In stock

92153

BOLT

92153-S001

1
Out of stock

92153A

BOLT

92153-S011

1

$1.64

In stock

92161

DAMPER,170X95X3.0

92161-S014

1

$4.56

In stock

92161A

1

$4.97

In stock

92171

CLAMP,L=145

92171-S015

1

$2.90

In stock

92172

SCREW

92172-S022

1

$1.64

In stock

92172A

SCREW,6X8

92172-S035

1

$1.42

In stock
