2004 Kawasaki KLX400SR (Canada Only) Headlight Diagram

← All diagrams

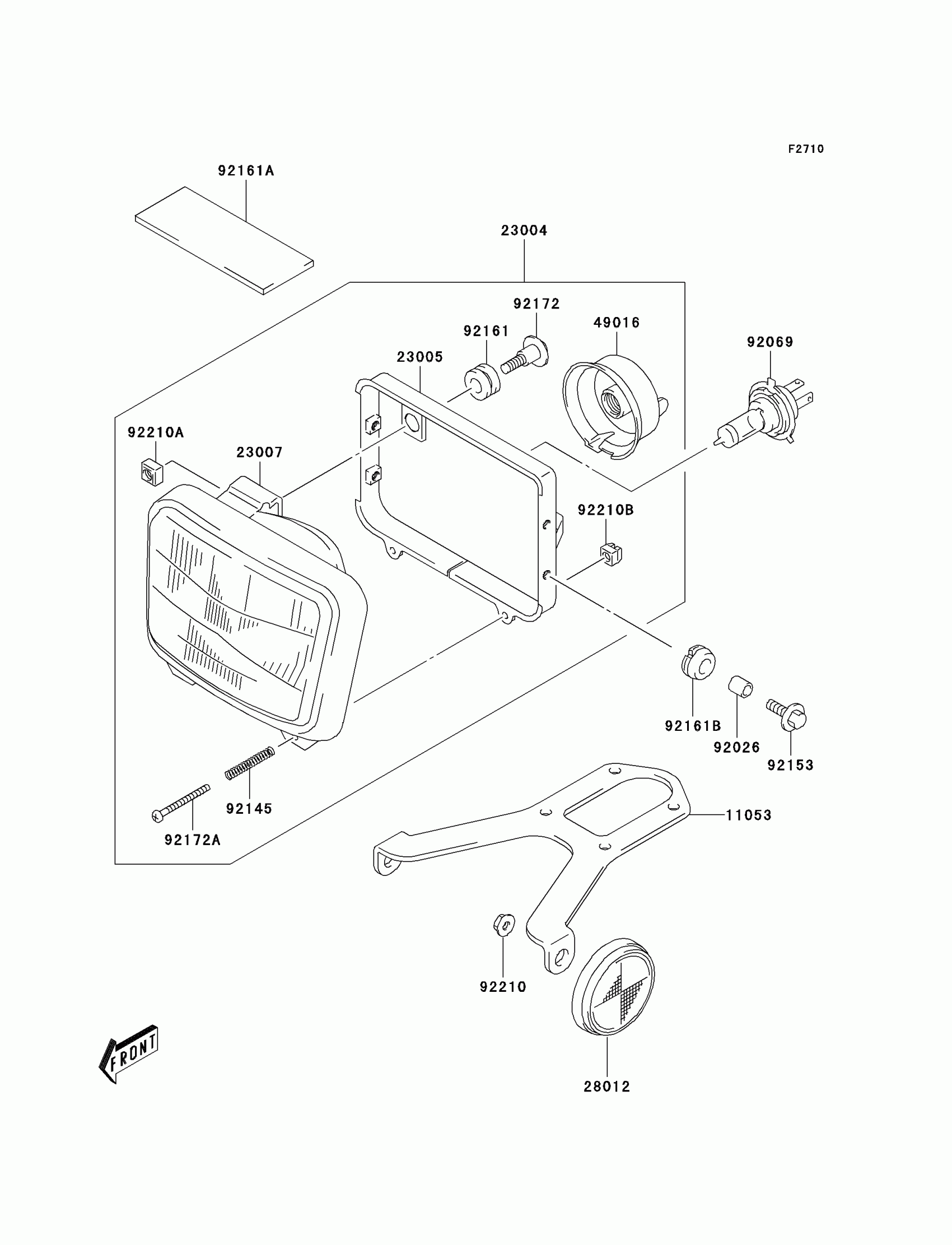

Find the part on the Headlight diagram for your 2004 Kawasaki KLX400SR (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KLX400SR (Canada Only) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053

BRACKET

11053-S038

1
Out of stock

23004

LAMP-HEAD

23004-S003

1

$293.75

In stock

23005

BODY-COMP-HEAD LAMP

23005-S001

1

$92.94

In stock

23007

LENS-COMP

23007-S005

1

$135.94

In stock

28012

REFLECTOR-REFLEX,FR

28012-S001

1
Out of stock

49016

COVER-SEAL,SOCKET

49016-S006

1

$14.32

In stock

92026

SPACER,6.5X10X10

92026-S005

1
Out of stock

92069

BULB,12V60/55W

92069-S007

1

$74.51

In stock

92145

SPRING

92145-S124

1

$6.12

In stock

92153

BOLT,6X20

92153-S049

1

$2.17

In stock

92161

DAMPER

92161-S118

1

$2.14

In stock

92161A

DAMPER,HEADLAMP

92161-S120

1

$7.78

In stock

92161B

DAMPER,HEADLAMP

92161-S128

1

$2.08

In stock

92172

SCREW

92172-S196

1

$3.81

In stock

92172A

SCREW

92172-S197

1

$5.69

In stock

92210

NUT

92210-S067

1
Out of stock

92210A

NUT

92210-S122

1
Out of stock

92210B

NUT,ADJUSTING

92210-S123

1
Out of stock
