2004 Kawasaki KLX400SR (Canada Only) Starter Motor Diagram

← All diagrams

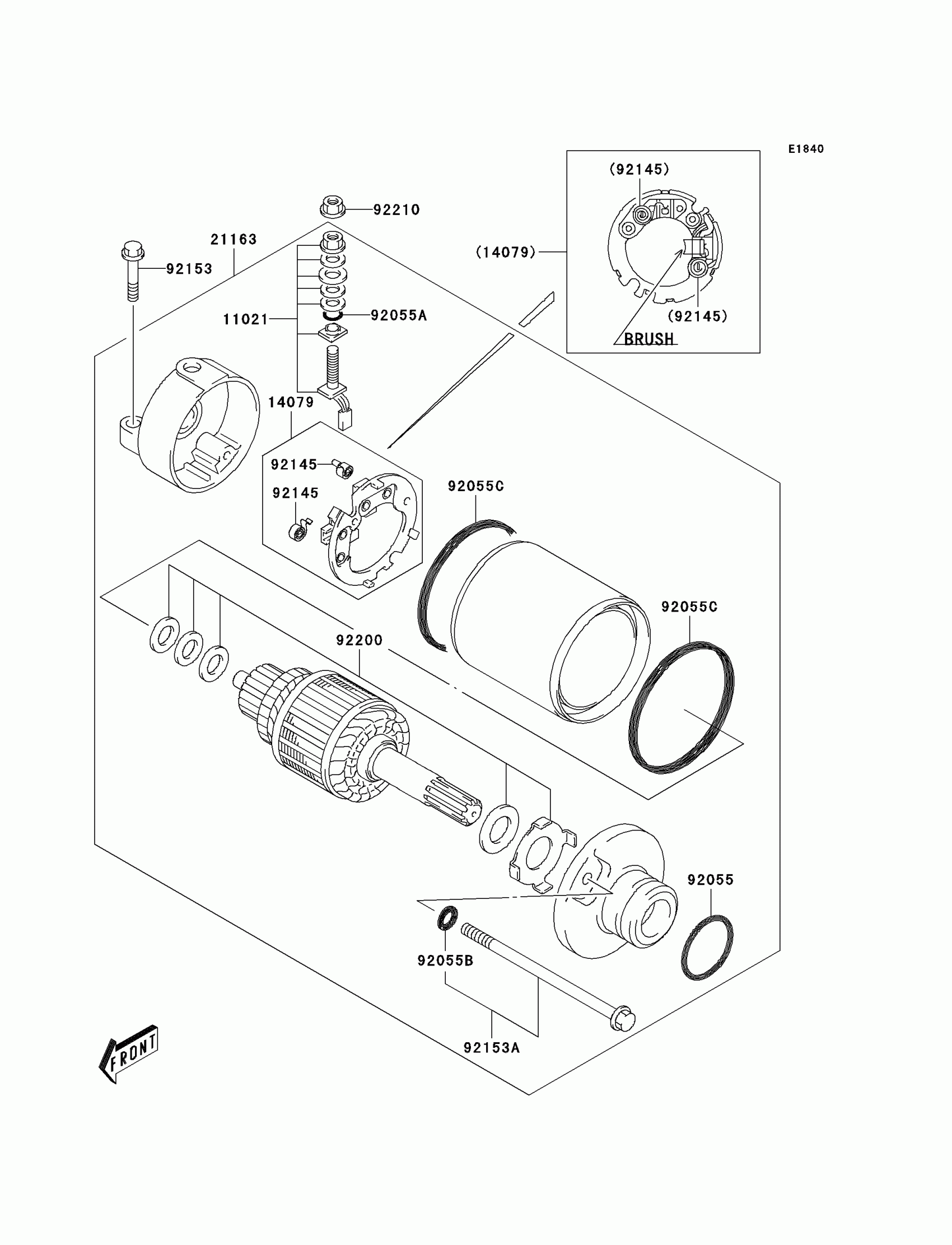

Find the part on the Starter Motor diagram for your 2004 Kawasaki KLX400SR (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KLX400SR (Canada Only) Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11021

BRUSH,TERMINAL SET

11021-S002

1
Out of stock

14079

HOLDER-ASSY

14079-S002

1
Out of stock

21163

STARTER-ELECTRIC

21163-S004

1
Out of stock

92055

RING-O,D:3,ID:24.5

92055-S008

1
Out of stock

92055A

RING-O

92055-S067

1
Out of stock

92055B

RING-O

92055-S068

1
Out of stock

92055C

RING-O

92055-S069

1
Out of stock

92145

SPRING,BRUSH

92145-S103

1
Out of stock

92153

BOLT

92153-S003

1
Out of stock

92153A

BOLT

92153-S293

1
Out of stock

92200

WASHER,SET

92200-S154

1
Out of stock

92210

NUT,STARTING MOTOR

92210-S099

1
Out of stock
