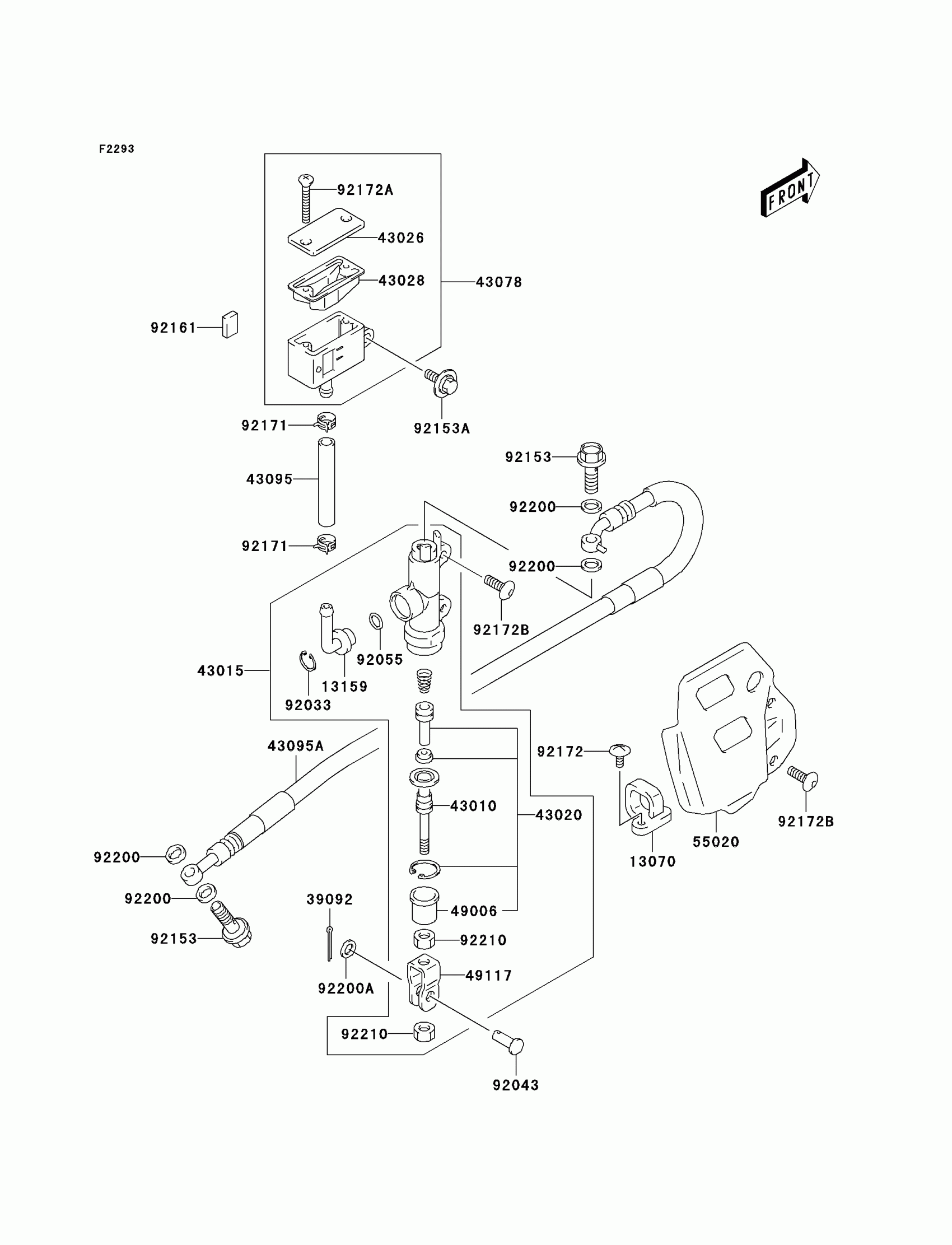

Kawasaki KLX400SR (Canada Only) Rear Master Cylinder Diagram

Description

Price

13070

GUIDE,BRAKE HOSE

13070-S019

$10.10

13159

CONNECTOR

13159-S002

Unavailable

39092

PIN-HAIR,FR FOOTREST COTTER

39092-S004

Unavailable

43010

ROD-ASSY-BRAKE

43010-S002

$23.86

43015

CYLINDER-ASSY-MASTER,RR

43015-S011

$221.07

43020

PISTON-COMP-BRAKE

43020-S007

$34.38

43026

CAP-BRAKE

43026-S008

$18.95

43028

DIAPHRAGM

43028-S006

$10.95

43078

RESERVOIR

43078-S007

Unavailable

43095

HOSE-BRAKE,RESERVOIR

43095-S012

$14.14

43095A

HOSE-BRAKE,RR

43095-S014

$80.09

49006

BOOT

49006-S026

$5.34

49117

YOKE

49117-S003

$18.61

55020

GUARD,REAR MASTER CYLINDER

55020-S030

$46.78

92033

RING-SNAP

92033-S042

Unavailable

92043

PIN,REAR MASTER CYLINDER

92043-S036

$3.49

92055

RING-O

92055-S071

Unavailable

92153

BOLT

92153-S053

Unavailable

92153A

BOLT,6X16

92153-S320

$2.76

92161

DAMPER,RESERVOIR TANK

92161-S124

$4.61

92171

CLAMP

92171-S109

$4.41

92172

SCREW,MOVABLE DRIVE

92172-S144

$1.64

92172A

SCREW

92172-S211

$2.68

92172B

SCREW,6X16

92172-S212

$3.76

92200

WASHER,10X15X1.5

92200-S014

$2.00

92200A

WASHER,REAR MASTER CYLINDER

92200-S135

$2.46

92210

NUT

92210-S112

Unavailable
