2025 Kawasaki KLX300SM Water Pump Diagram

← All diagrams

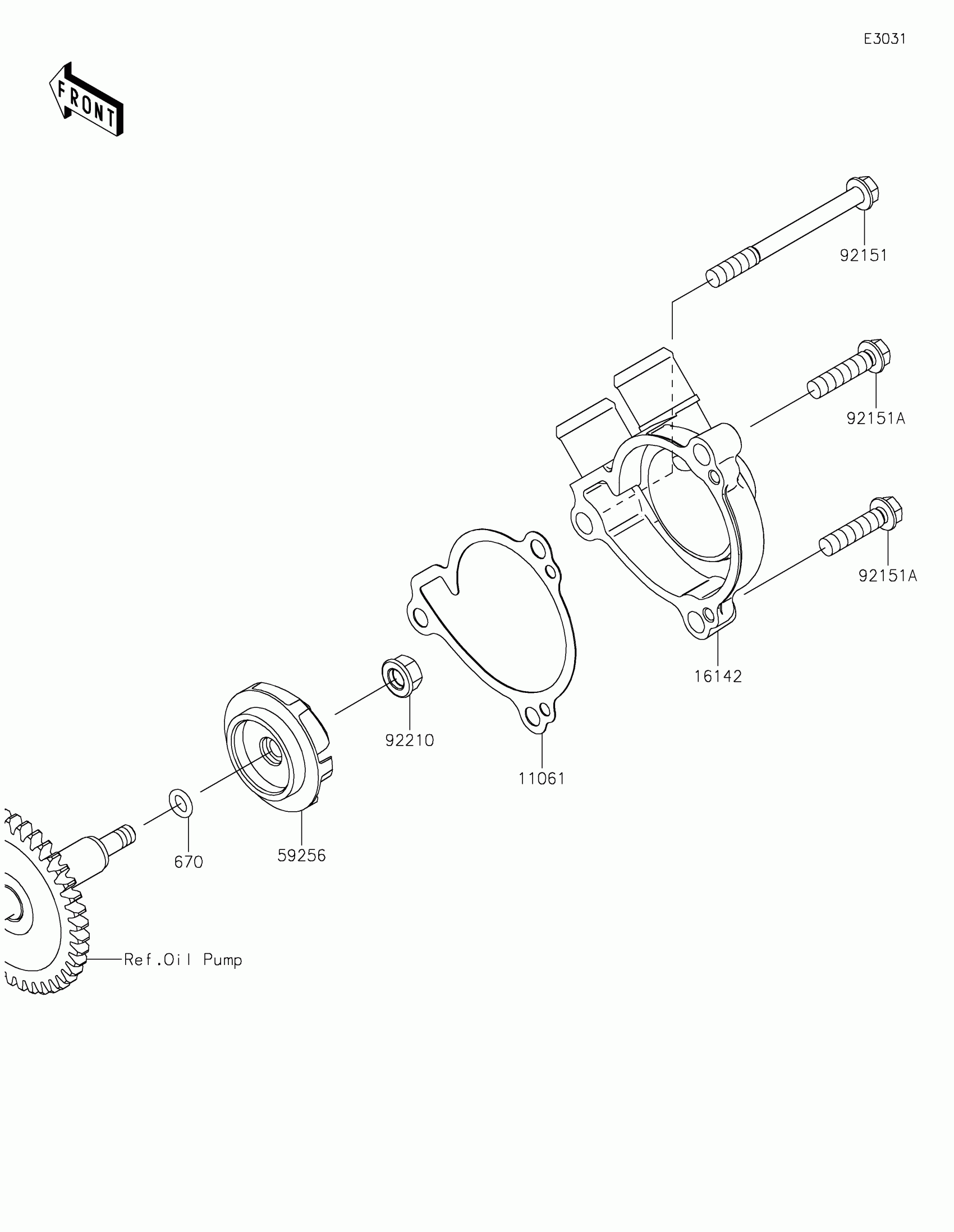

Find the part on the Water Pump diagram for your 2025 Kawasaki KLX300SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLX300SM Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,PUMP COVER

11061-1478

1

$3.94

In stock

16142

COVER-PUMP

16142-0059

1

$77.09

In stock

59256

IMPELLER

59256-1063

1

$33.92

In stock

92151

BOLT,6X65

92151-1199

1

$4.32

In stock

92151A

1

$2.06

In stock

92210

NUT,FLANGED,6MM

92210-0630

1
Out of stock

670

O RING,6MM

670B1506

1

$1.14

In stock
