2025 Kawasaki KLX300SM Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2025 Kawasaki KLX300SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

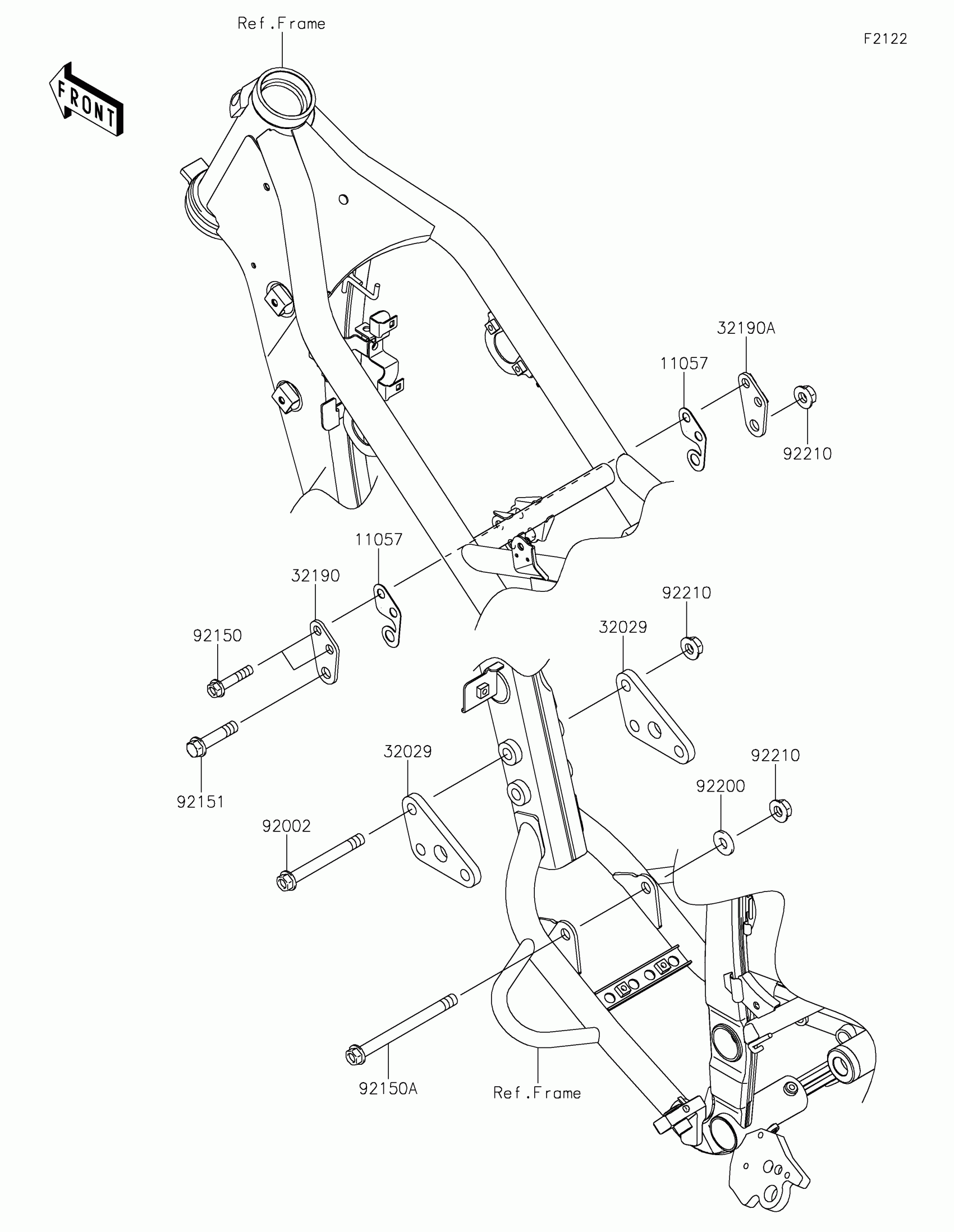

2025 Kawasaki KLX300SM Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-3705

1

$1.56

In stock

32029

BRACKET-ENGINE,FR

32029-1855

1

$20.85

In stock

32190

1

$7.47

In stock

32190A

1

$7.47

In stock

92002

BOLT,10X90

92002-1674

1
Out of stock

92150

BOLT,FLANGED,8X42

92150-1415

1

$2.68

In stock

92150A

BOLT,FLANGED,10X120

92150-1642

1

$16.78

In stock

92151

BOLT,FLANGED,10X45

92151-1413

1

$3.56

In stock

92200

WASHER,10.2X23X2.5

92200-0211

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock
