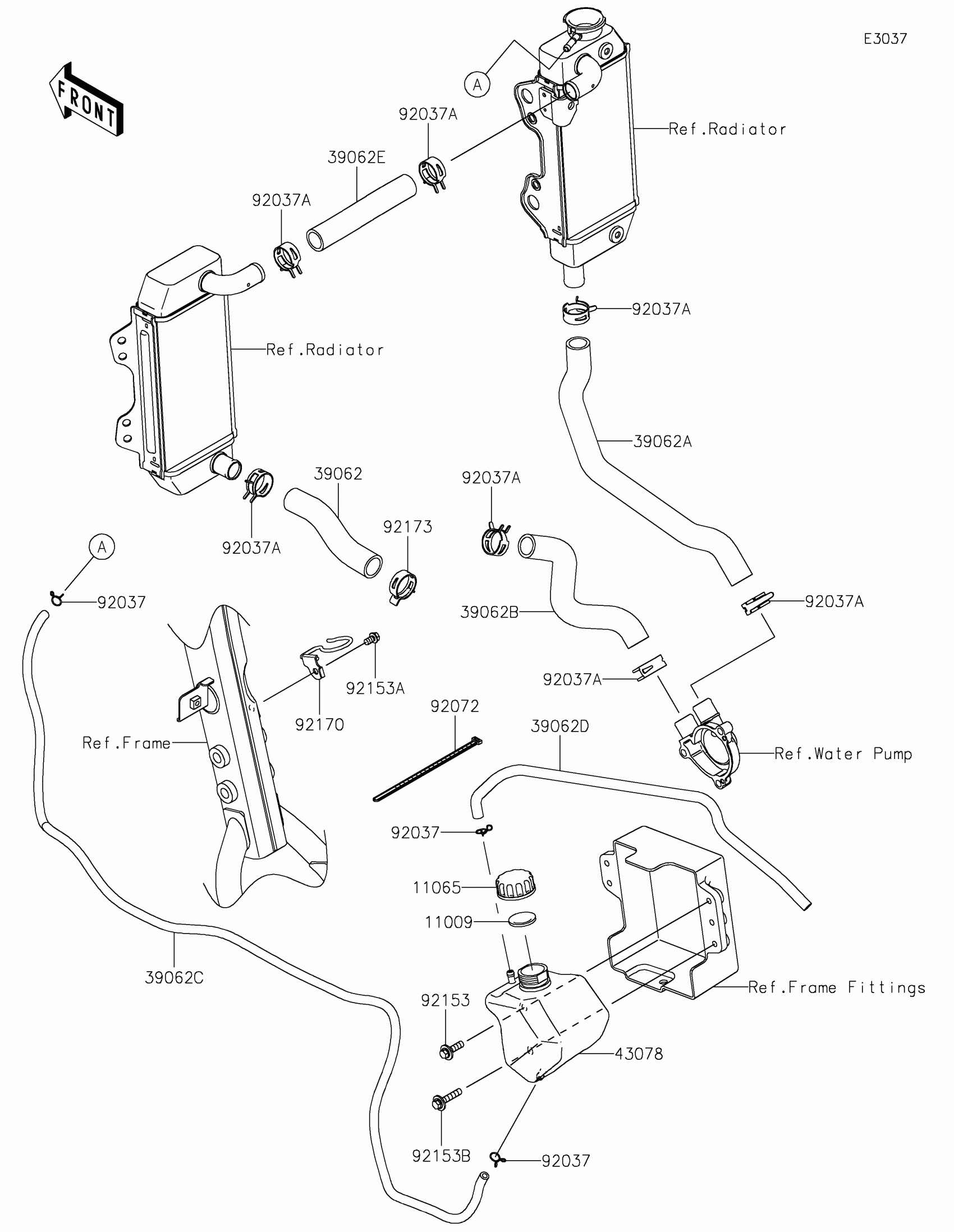

Find the part on the Water Pipe diagram for your 2025 Kawasaki KLX300SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLX300SM Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11065

CAP

11065-0969

1

$1.69

In stock

39062

1

$8.96

In stock

39062A

1

$20.72

In stock

39062B

1

$13.03

In stock

39062C

1

$13.90

In stock

39062D

1

$12.90

In stock

39062E

1

$11.81

In stock

43078

RESERVOIR

43078-0044

1

$44.11

In stock

92037

CLAMP

92037-1712

1

$3.97

In stock

92037A

CLAMP

92037-2109

1

$1.63

In stock

92072

BAND,L=250

92072-0937

1

$1.86

In stock

92153

BOLT,FLANGED,6X22

92153-0950

1
Out of stock

92153A

BOLT,FLANGED,6X10

92153-1354

1
Out of stock

92153B

BOLT,FLANGED,6X30

92153-1457

1
Out of stock

92170

CLAMP

92170-1357

1

$14.29

In stock

92173

CLAMP

92173-2465

1

$5.49

In stock
