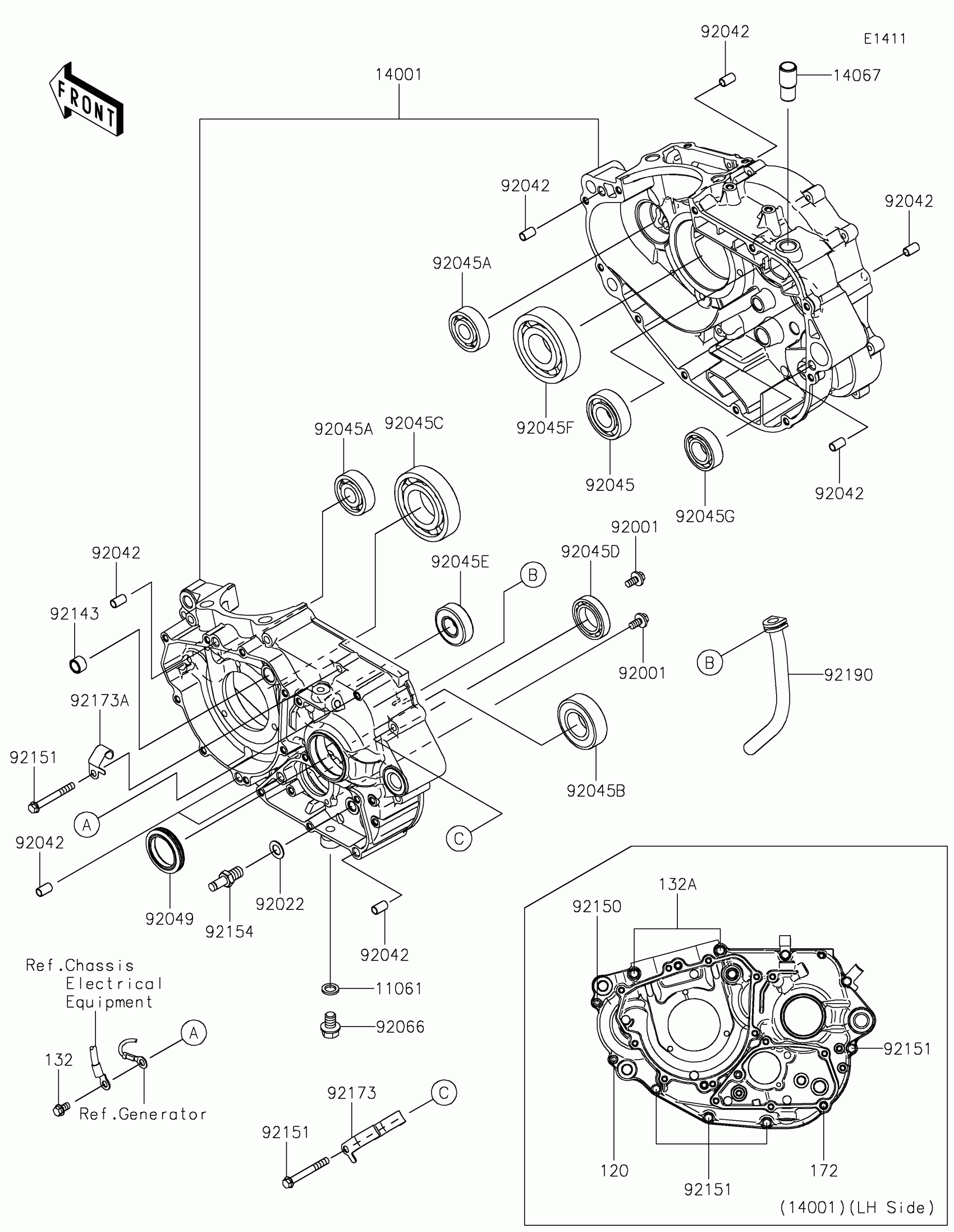

Find the part on the Crankcase diagram for your 2025 Kawasaki KLX300SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLX300SM Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,10.5X16X2

11061-0222

1

$4.44

In stock

14001

SET-CRANKCASE

14001-0728

1

$800.64

In stock

14067

FITTING,BREATHER

14067-006

1

$19.78

In stock

92001

BOLT,W/WASHER,6X14

92001-1829

1

$3.53

In stock

92022

1

$4.17

In stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92045

1

$31.01

In stock

92045A

1

$16.42

In stock

92045B

1

$32.62

In stock

92045C

1

$35.88

In stock

92045D

1

$25.86

In stock

92045E

1

$23.83

In stock

92045F

1

$31.05

In stock

92045G

1

$29.10

In stock

92049

SEAL-OIL,32X45X7.5

92049-0825

1

$20.69

In stock

92066

PLUG,DRAIN

92066-0143

1

$2.92

In stock

92143

COLLAR

92143-1263

1

$4.32

In stock

92150

BOLT,SOCKET,6X35

92150-1875

1

$4.66

In stock

92151

BOLT,6X50

92151-1234

1

$2.03

In stock

92154

BOLT,RETURN SPRING

92154-1306

1

$8.51

In stock

92173

CLAMP

92173-1715

1

$7.47

In stock

92173A

CLAMP

92173-2289

1

$2.63

In stock

92190

TUBE

92190-1493

1

$11.19

In stock

120

BOLT-SOCKET,6X50

120CC0650

1

$2.10

In stock

132

BOLT-FLANGED-SMALL

132BC0610

1

$1.68

In stock

132A

1

$3.51

In stock

172

BOLT-STUD,6X80

172BA0680

1

$2.25

In stock
