2025 Kawasaki KLX300SM Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2025 Kawasaki KLX300SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

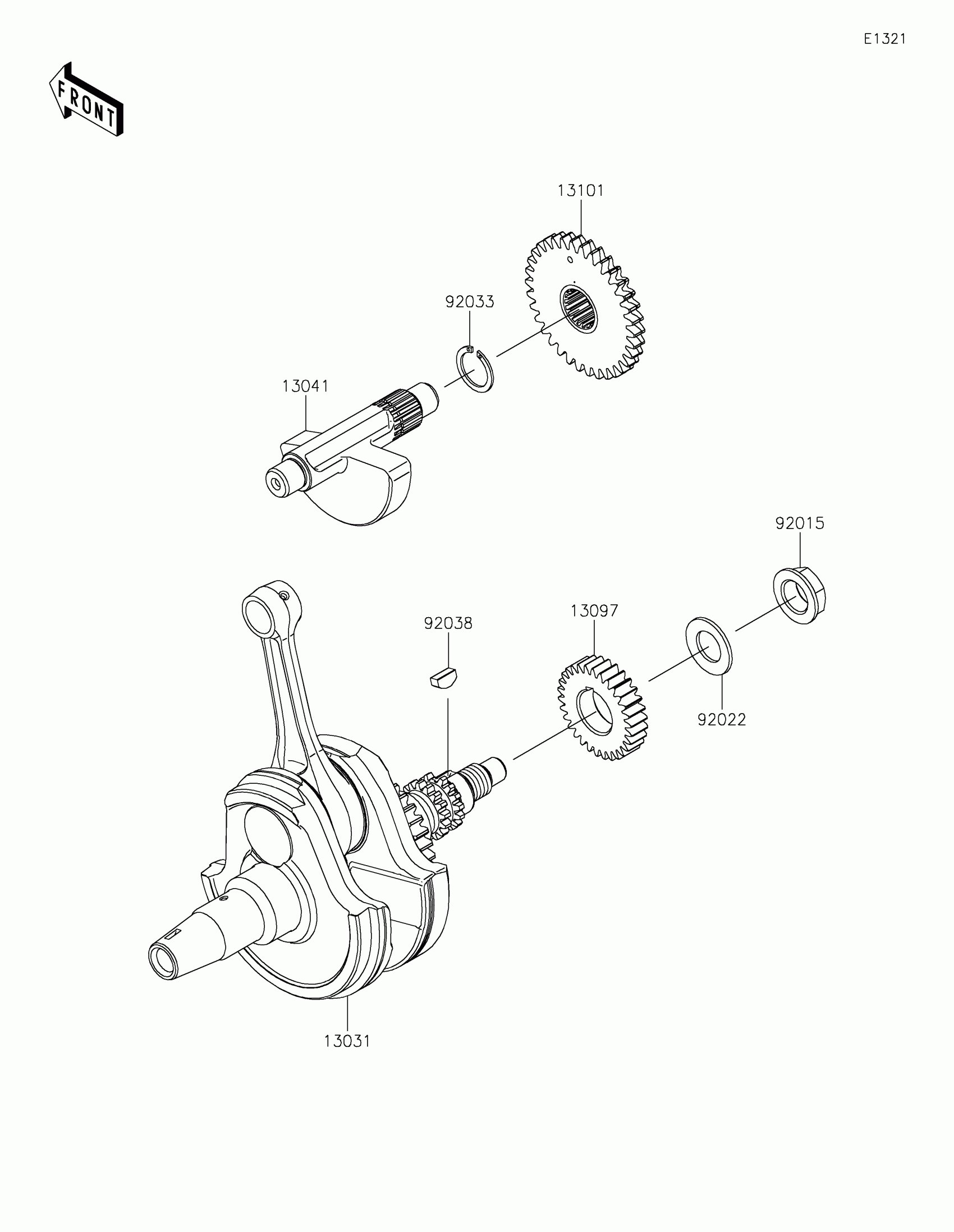

2025 Kawasaki KLX300SM Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-0999

1

$689.65

In stock

13041

BALANCER

13041-0001

1

$91.54

In stock

13097

1

$82.15

In stock

13101

GEAR-ASSY,BALANCER

13101-0629

1

$114.03

In stock

92015

NUT,16MM

92015-1581

1

$15.43

In stock

92022

WASHER,16.3X29X1.75

92022-1356

1

$5.84

In stock

92033

RING-SNAP,18MM

92033-029

1

$7.79

In stock

92038

KEY

92038-1057

1

$4.80

In stock
