2025 Kawasaki KLX300SM Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2025 Kawasaki KLX300SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

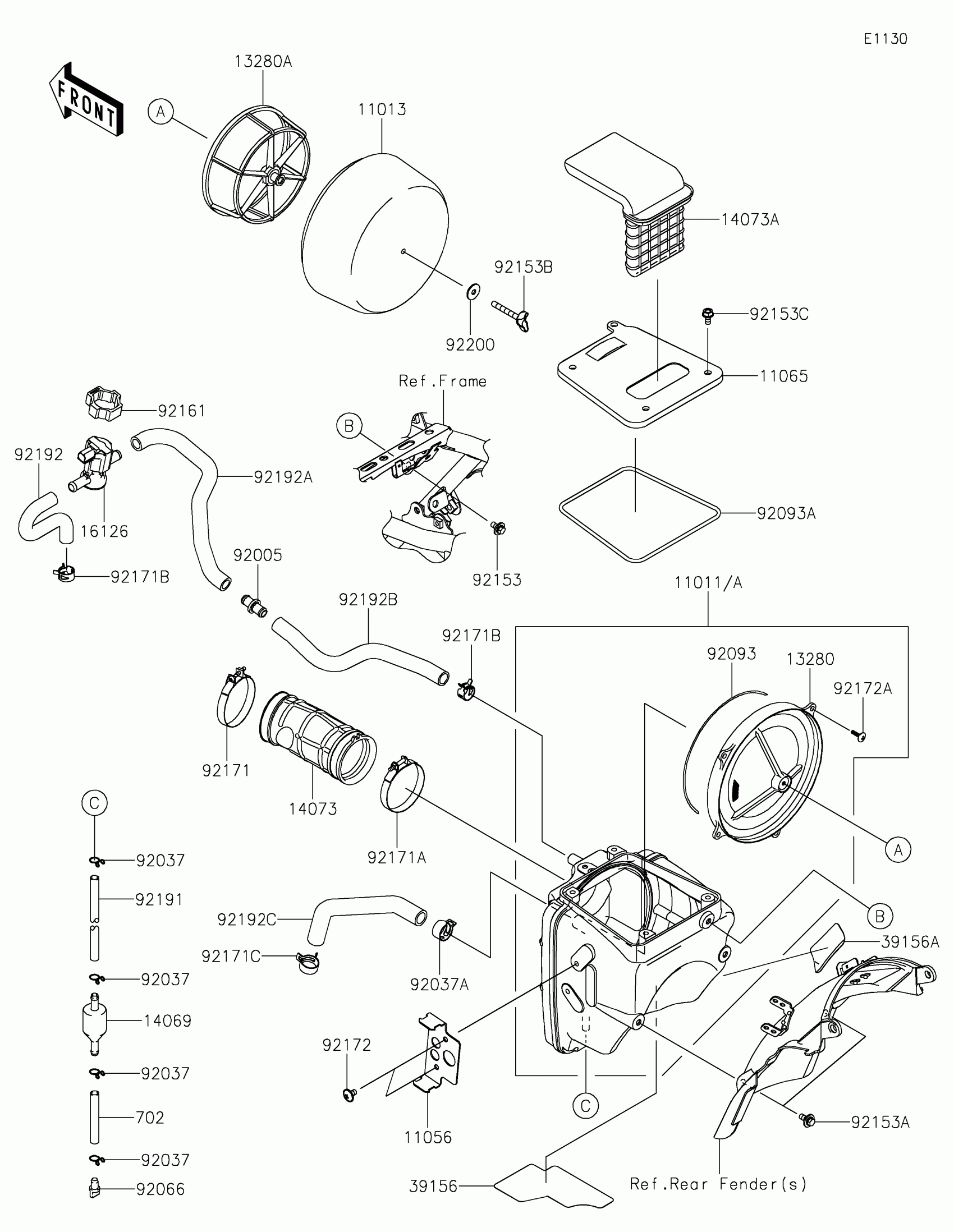

2025 Kawasaki KLX300SM Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11011

CASE-AIR FILTER

11011-0114

1

$139.07

In stock

11013

ELEMENT-AIR FILTER

11013-0030

1

$45.32

In stock

11056

BRACKET,ECU

11056-1515

1

$10.76

In stock

11065

CAP,AIR FILTER

11065-0232

1

$30.79

In stock

13280

HOLDER

13280-0252

1

$53.54

In stock

13280A

HOLDER

13280-0263

1

$55.87

In stock

14069

BREATHER

14069-1051

1

$8.09

In stock

14073

DUCT,A/C-THROBO

14073-0158

1

$41.92

In stock

14073A

DUCT,INTAKE

14073-0185

1

$54.09

In stock

16126

VALVE,AIR SWITCHING

16126-0033

1

$86.26

In stock

39156

PAD,A/F CASE

39156-2429

1

$37.40

In stock

39156A

PAD,A/F CASE

39156-2723

1

$4.83

In stock

92005

FITTING

92005-1379

1
Out of stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92037A

CLAMP

92037-1860

1
Out of stock

92066

PLUG,DRAIN

92066-1211

1

$6.75

In stock

92093

SEAL,3X520

92093-0101

1

$29.01

In stock

92093A

SEAL,4X535

92093-0102

1

$12.44

In stock

92153

BOLT,6X12

92153-0503

1
Out of stock

92153A

BOLT,FLANGED,6X14

92153-0936

1
Out of stock

92153B

BOLT,WING,6X45

92153-1921

1

$7.76

In stock

92153C

BOLT,FLANGED,6X12

92153-1922

1

$2.10

In stock

92161

DAMPER,ASWV

92161-0499

1

$7.15

In stock

92171

CLAMP

92171-0643

1

$11.75

In stock

92171A

CLAMP,62MM

92171-1687

1

$8.25

In stock

92171B

CLAMP

92171-1888

1

$2.58

In stock

92171C

CLAMP

92171-1890

1

$9.10

In stock

92172

SCREW,6X10

92172-0005

1

$2.00

In stock

92172A

SCREW,5X14

92172-0324

1

$3.27

In stock

92191

TUBE,7X10X300

92191-1556

1

$10.39

In stock

92192

TUBE,CAP-ASWV

92192-0433

1
Out of stock

92192A

TUBE,ASWV-FITTING

92192-0434

1
Out of stock

92192B

TUBE,FITTING-A/C

92192-0435

1
Out of stock

92192C

TUBE,BREATHER

92192-0594

1
Out of stock

92200

WASHER,6.5X20X1.6

92200-0411

1
Out of stock

702

1

$5.37

In stock
