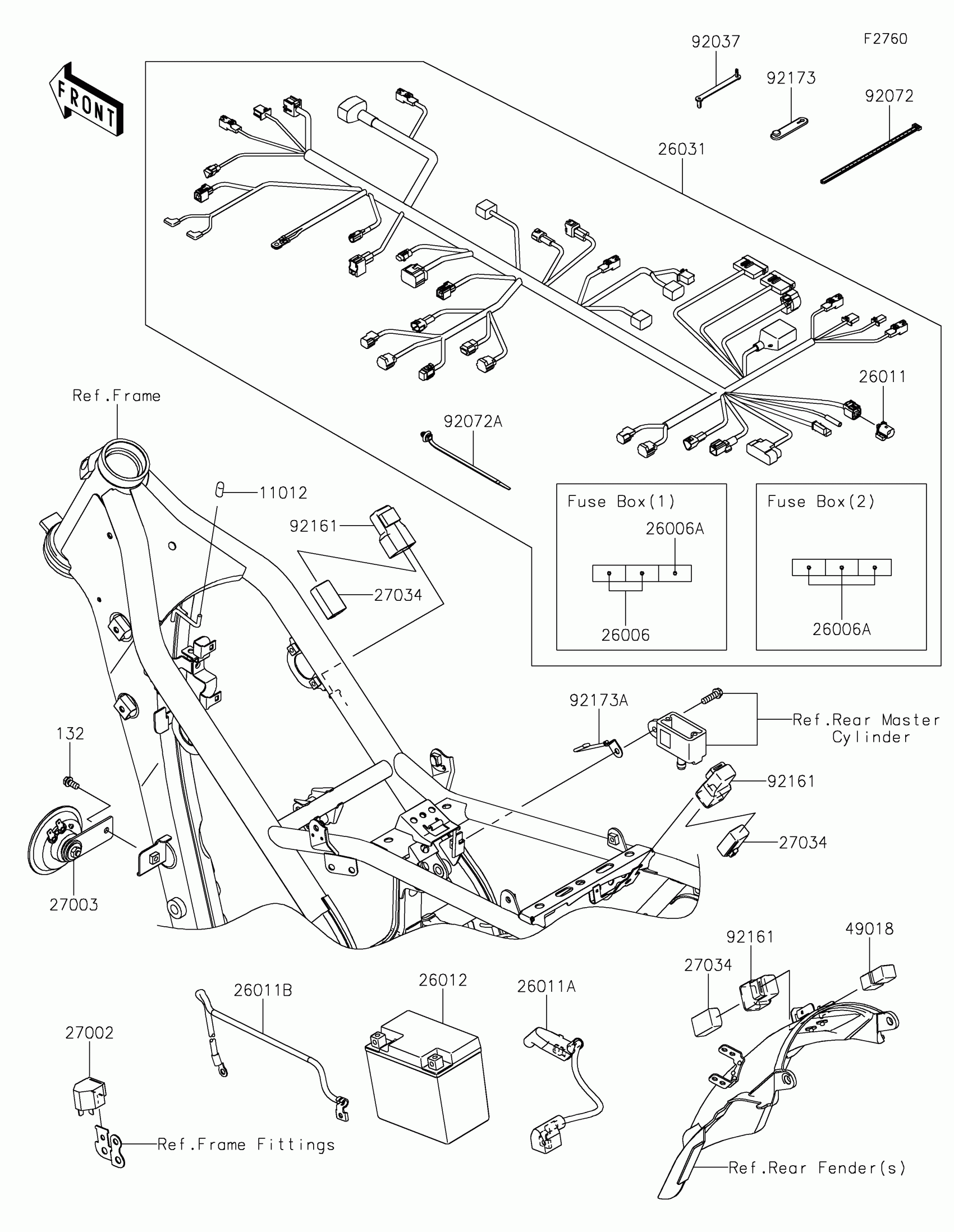

Kawasaki KLX300SM Chassis Electrical Equipment Diagram

Description

Price

11012

CAP,BUNGEE CORD HOOK

11012-1589

$7.63

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$5.34

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

$3.36

26011

WIRE-LEAD,DIAG CONNECTOR

26011-1901

$33.04

26011A

WIRE-LEAD,BATTERY(+)

26011-1926

$37.96

26011B

WIRE-LEAD,BATTERY(-)

26011-2467

$34.84

26012

BATTERY,FTZ7S,12V 6AH

26012-0907

$149.86

26031

HARNESS,MAIN

26031-4043

$835.17

27002

RELAY-ASSY,TURN SIGNAL

27002-0031

$24.24

27003

HORN

27003-0162

$82.95

27034

RELAY

27034-0012

$37.62

49018

DIODE

49018-0005

$41.75

92037

CLAMP,SPEED,L=58

92037-1163

$4.93

92072

BAND,L=250

92072-0937

$1.86

92072A

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92161

DAMPER

92161-2290

$5.27

92173

CLAMP

92173-2198

$1.32

92173A

CLAMP,HARNESS

92173-2734

$8.07

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97
