2025 Kawasaki KLX300SM Wheels/tires Diagram

← All diagrams

Find the part on the Wheels/tires diagram for your 2025 Kawasaki KLX300SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

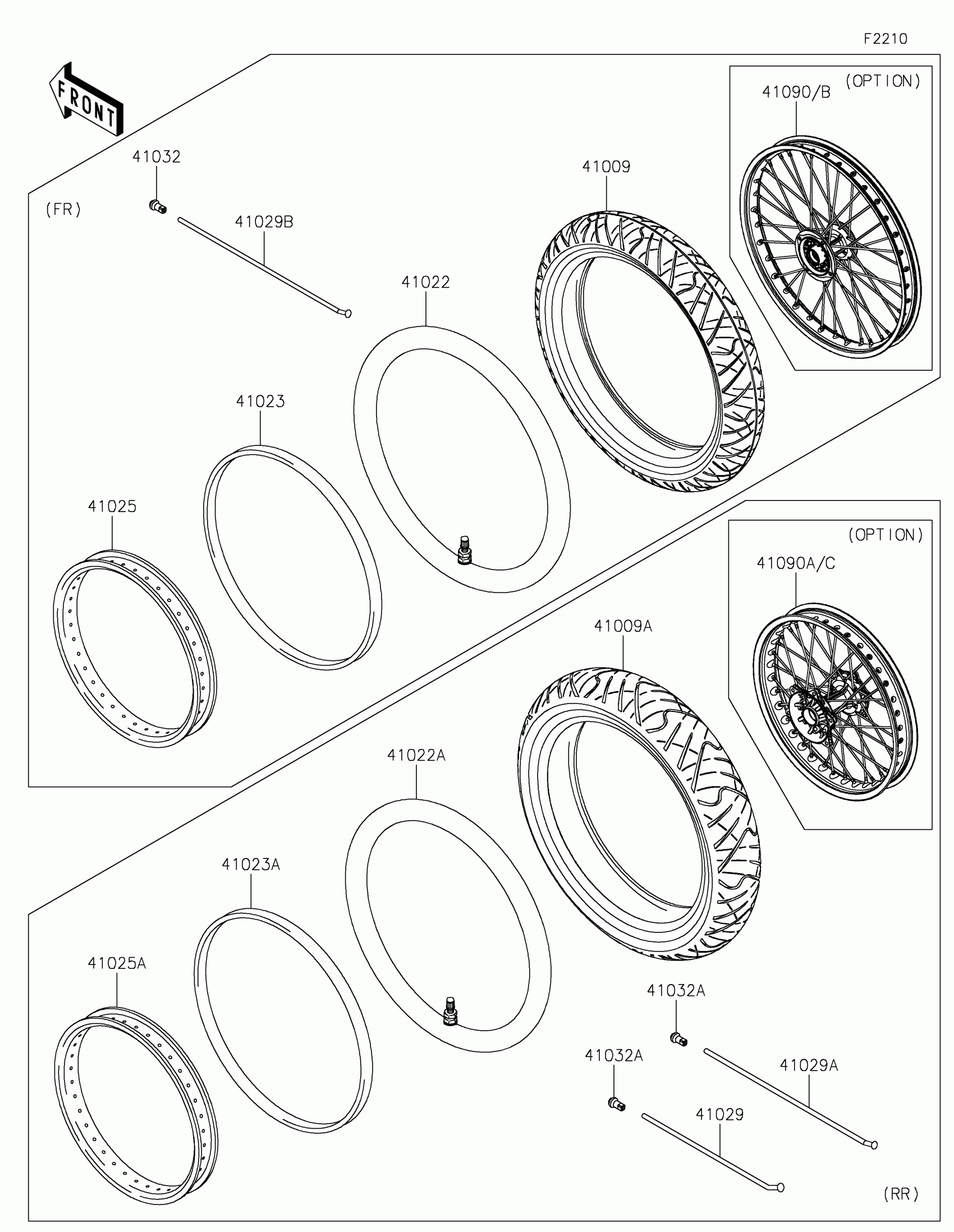

2025 Kawasaki KLX300SM Wheels/tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41009

1

$159.78

In stock

41009A

1

$194.60

In stock

41022

TUBE-TIRE,110/70-17

41022-0105

1

$52.56

In stock

41022A

TUBE-TIRE,130/70-17

41022-0106

1

$52.56

In stock

41023

1

$14.66

In stock

41023A

1

$14.66

In stock

41025

RIM,FR,3.00X17,BLACK

41025-0322-WC

1

$584.14

In stock

41025A

RIM,RR,4.00X17,BLACK

41025-0323-WC

1

$616.27

In stock

41029

1

$4.80

In stock

41029A

1

$4.80

In stock

41029B

1

$2.37

In stock

41032

NIPPLE-SPOKE

41032-0005

1

$1.92

In stock

41032A

NIPPLE-SPOKE

41032-0007

1

$2.63

In stock

41090

1

$875.88

In stock

41090A

1

$985.45

In stock

41090B

1

$875.88

In stock

41090C

1

$985.45

In stock
