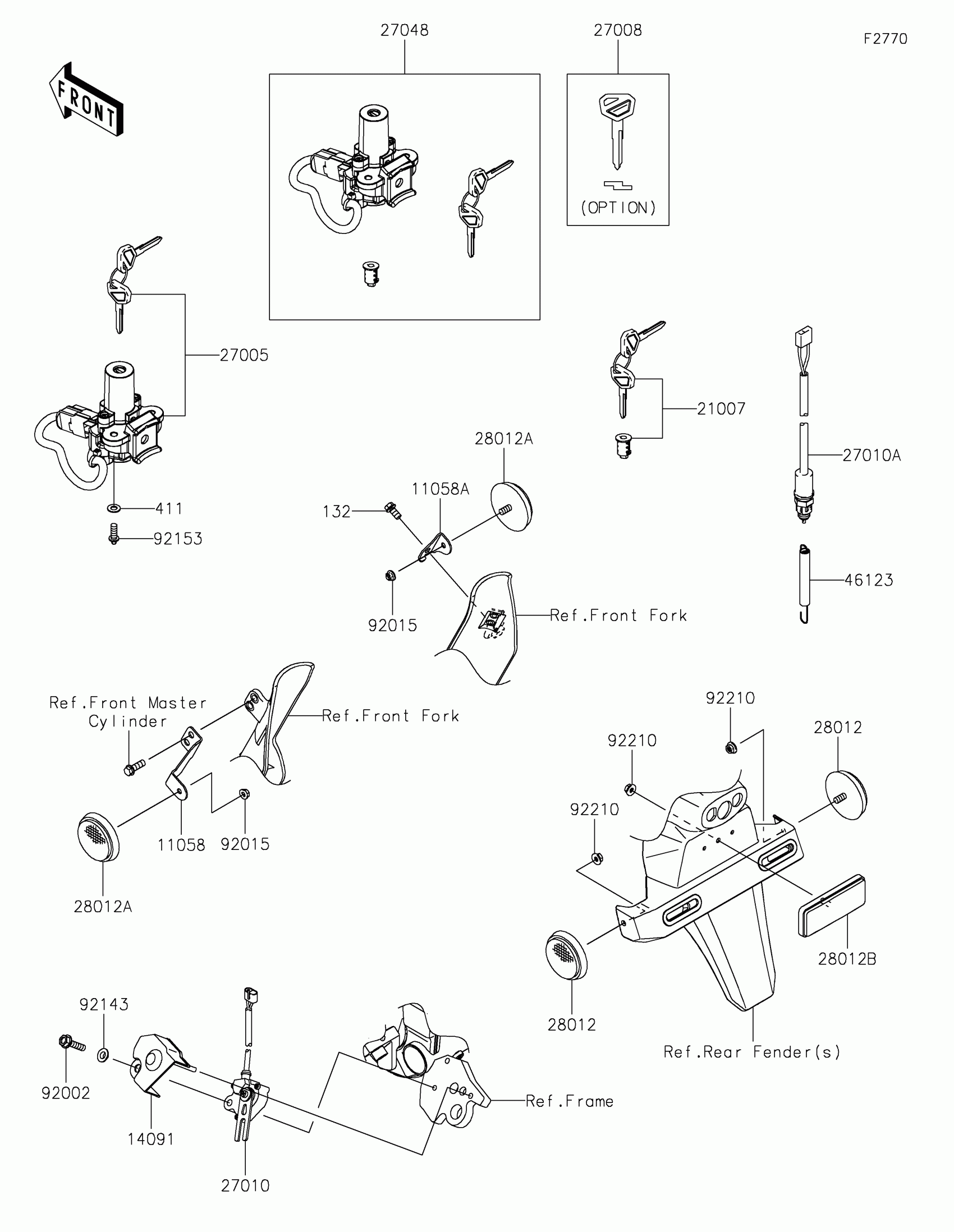

Find the part on the Ignition Switch diagram for your 2025 Kawasaki KLX300SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLX300SM Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

1

$3.78

In stock

11058A

1

$68.84

In stock

14091

1

$7.47

In stock

21007

ROTOR,LOCK,TANK CAP

21007-5035

1

$60.27

In stock

27005

1

$151.87

In stock

27008

KEY-LOCK,BLANK

27008-1170

1

$14.13

In stock

27010

SWITCH,SIDE STAND

27010-0097

1

$119.84

In stock

27010A

SWITCH,REAR BRAKE

27010-1489

1

$42.42

In stock

27048

SWITCH-ASSY

27048-5315

1

$197.80

In stock

28012

REFLECTOR-REFLEX

28012-0002

1

$22.37

In stock

28012A

1

$21.56

In stock

28012B

REFLECTOR-REFLEX

28012-1077

1

$21.76

In stock

46123

1

$5.12

In stock

92002

BOLT,FLANGED,6X25

92002-1582

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92143

COLLAR

92143-1331

1

$3.14

In stock

92153

BOLT,TORX,6X16

92153-1426

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock

132

1

$1.73

In stock

411

WASHER-PLAIN,6MM

411AA0600

1

$2.39

In stock
