2025 Kawasaki KLX300SM Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2025 Kawasaki KLX300SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

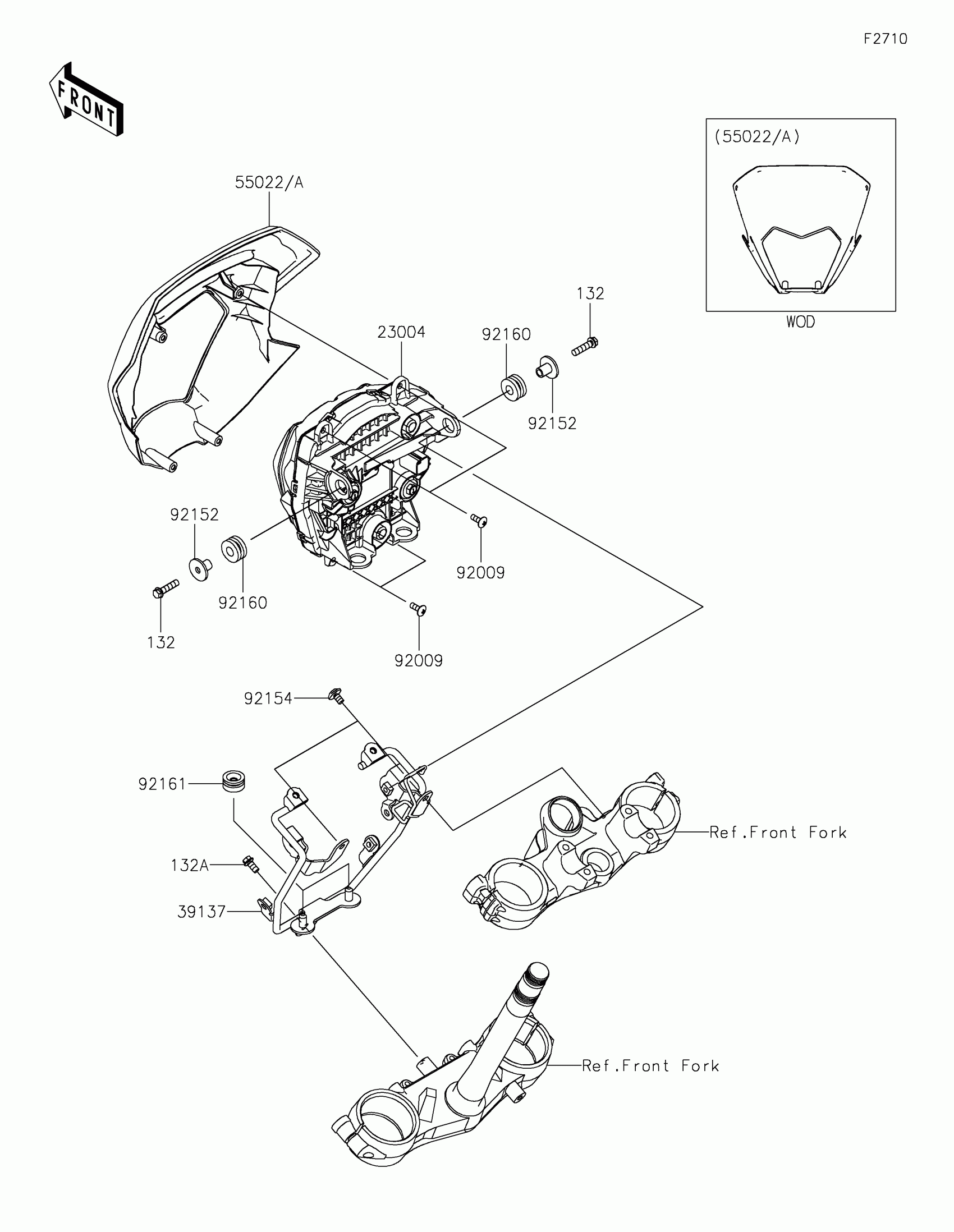

2025 Kawasaki KLX300SM Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23004

LAMP-HEAD,LED

23004-0431

1

$1,055.44

In stock

39137

STAY-COMP,HEAD LAMP

39137-0740

1

$151.18

In stock

55022

COVER-HEAD LAMP,B.GRAY

55022-0331-67A

1

$65.70

In stock

55022A

COVER-HEAD LAMP,P.BLUE

55022-0331-67E

1

$65.70

In stock

92009

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92152

COLLAR,6.8X10X15.3

92152-1574

1

$3.29

In stock

92154

BOLT,SOCKET,6X10

92154-4298

1

$1.44

In stock

92160

DAMPER

92160-1162

1

$3.97

In stock

92161

DAMPER

92161-0537

1

$4.47

In stock

132

1

$2.29

In stock

132A

1

$1.73

In stock
