2025 Kawasaki KLX300SM Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2025 Kawasaki KLX300SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

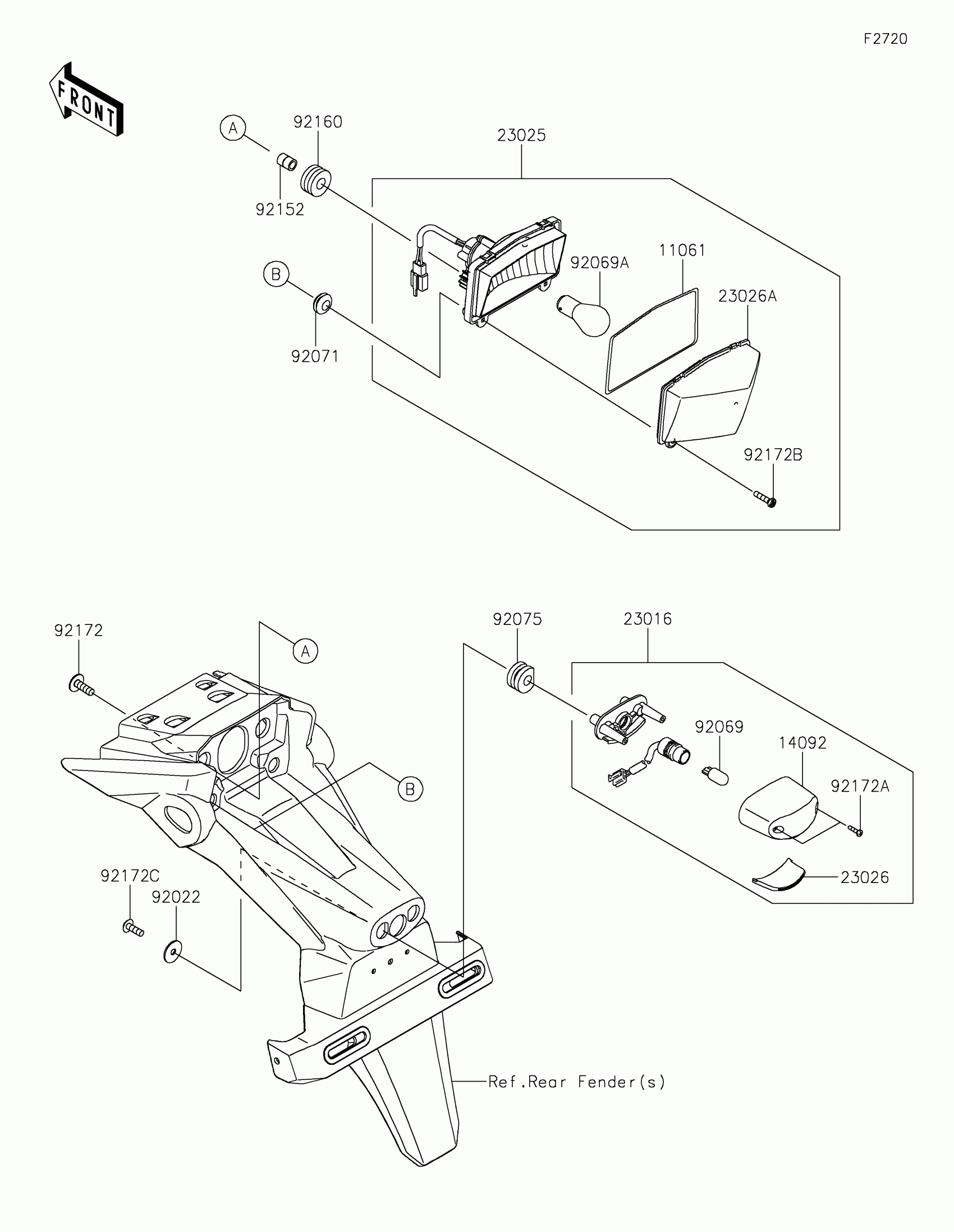

2025 Kawasaki KLX300SM Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

1

$9.34

In stock

14092

COVER,LICENSE LAMP

14092-0001

1

$20.17

In stock

23016

LAMP-ASSY,LICENCE

23016-0657

1

$73.13

In stock

23025

LAMP-TAIL

23025-0392

1

$65.60

In stock

23026

LENS,LICENCE LAMP

23026-0035

1

$29.34

In stock

23026A

LENS,TAIL LAMP

23026-0036

1

$20.35

In stock

92022

WASHER,5.5X20X1.2

92022-104

1

$3.43

In stock

92069

BULB,12V 5W

92069-1016

1

$5.16

In stock

92069A

BULB,12V 21/5W

92069-1084

1

$5.84

In stock

92071

GROMMET

92071-024

1

$4.14

In stock

92075

DAMPER

92075-1870

1

$4.42

In stock

92152

COLLAR,6.8X10X13.5

92152-3818

1

$2.10

In stock

92160

DAMPER

92160-1162

1

$3.97

In stock

92172

SCREW,6X18

92172-0192

1

$10.83

In stock

92172A

1

$1.53

In stock

92172B

SCREW,4.2X19

92172-0411

1
Out of stock

92172C

SCREW,TAPPING,5X16

92172-0427

1

$2.10

In stock
