2025 Kawasaki KLX300SM Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2025 Kawasaki KLX300SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

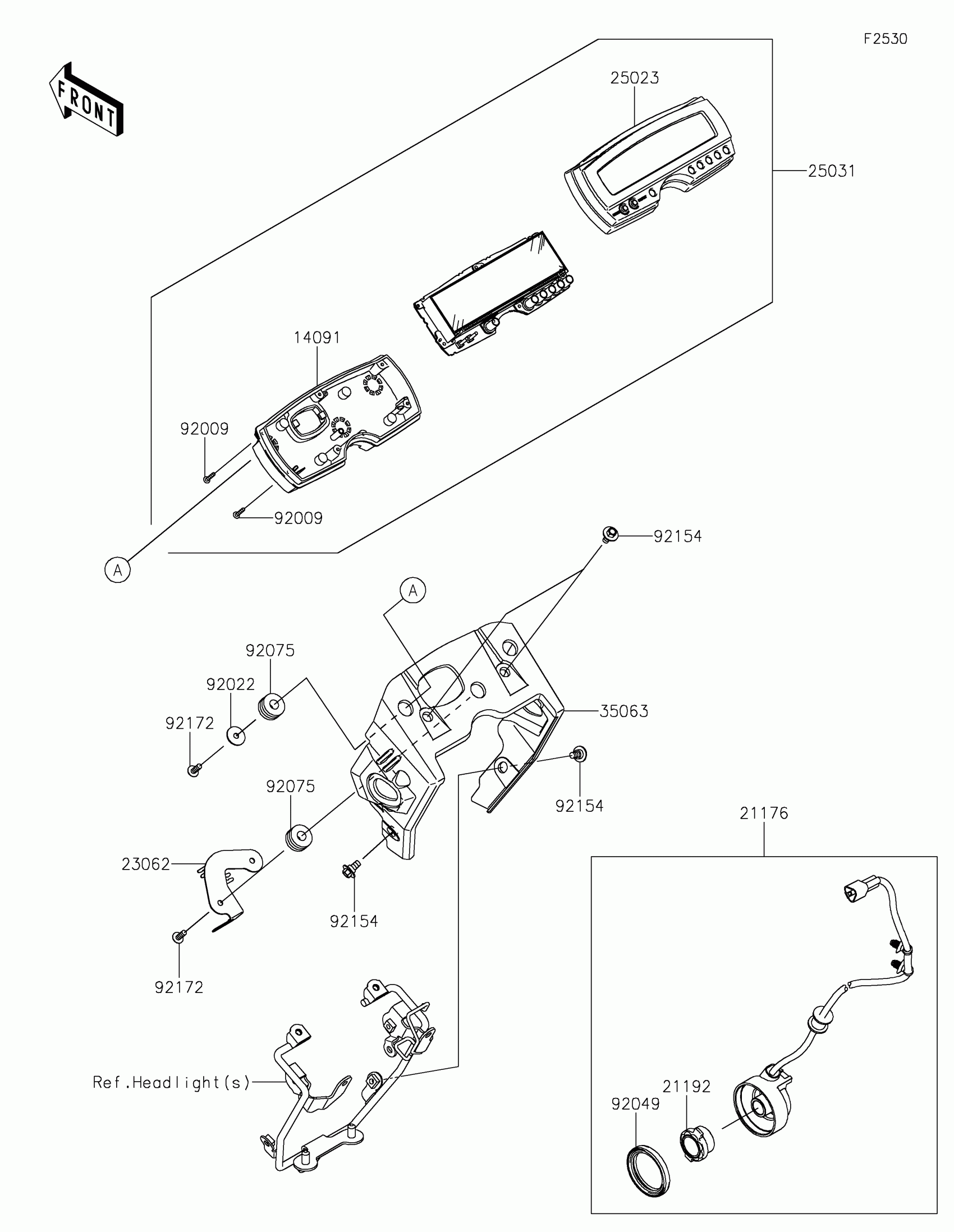

2025 Kawasaki KLX300SM Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

COVER,METER,LWR

14091-0874

1

$235.90

In stock

21176

SENSOR,SPEED

21176-1198

1

$421.89

In stock

21192

MAGNET,SPEED SENSOR

21192-0004

1

$36.81

In stock

23062

BRACKET-COMP

23062-1439

1

$4.76

In stock

25023

1

$150.40

In stock

25031

METER-ASSY,LCD

25031-0943

1

$701.32

In stock

35063

STAY,METER

35063-1594

1

$82.30

In stock

92009

SCREW,TAPPING,3X16

92009-1391

1
Out of stock

92022

WASHER,5.5X20X1.2

92022-104

1

$3.43

In stock

92049

SEAL-OIL,METER GEAR CASE

92049-1172

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92154

BOLT

92154-7139

1

$2.27

In stock

92172

SCREW,TAPPING,5X14

92172-0265

1

$1.20

In stock
