2025 Kawasaki KLX300SM Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 2025 Kawasaki KLX300SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

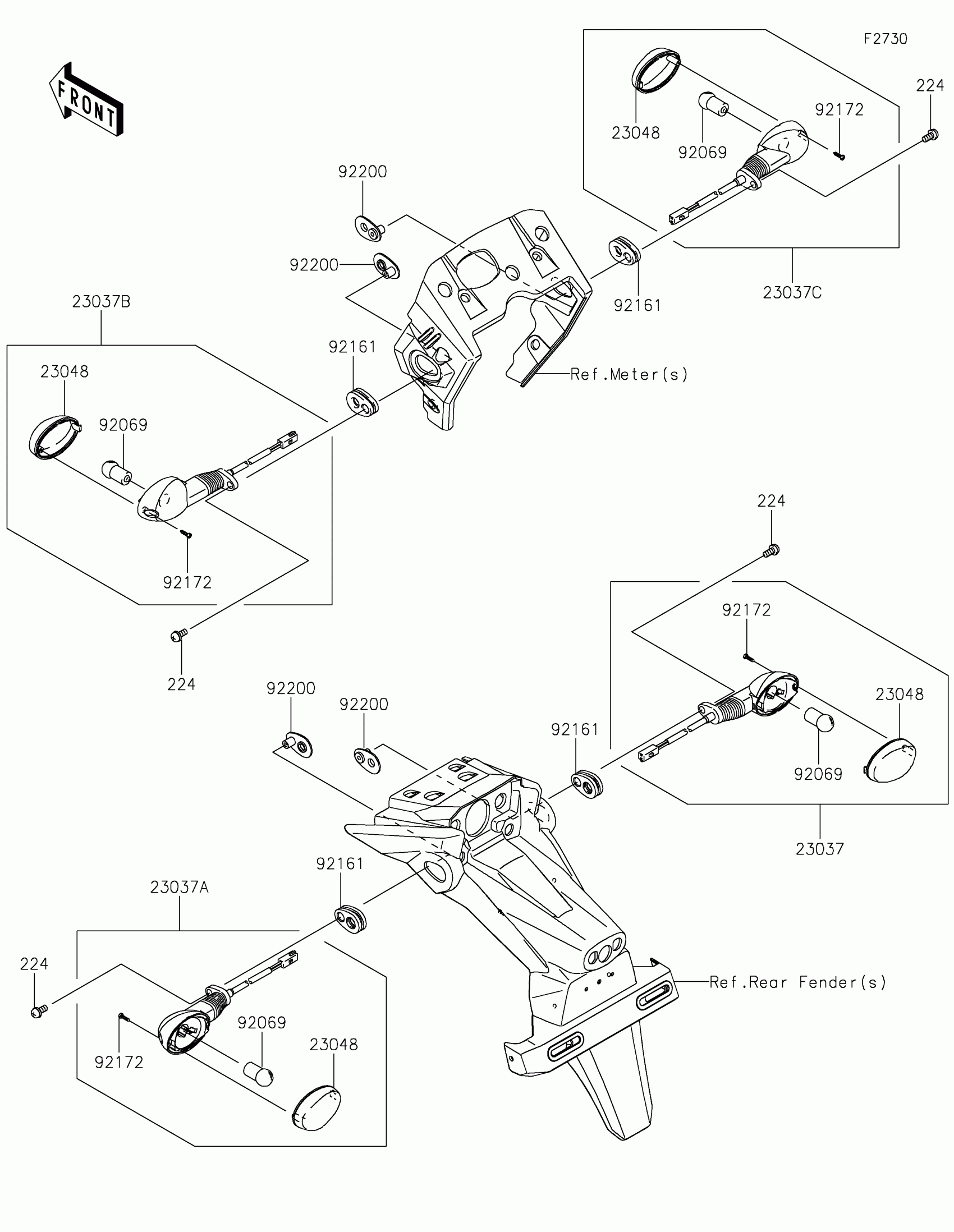

2025 Kawasaki KLX300SM Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23037

1

$44.61

In stock

23037A

1

$44.61

In stock

23037B

1

$73.00

In stock

23037C

1

$73.00

In stock

23048

LENS-SIGNAL LAMP

23048-0035

1

$8.61

In stock

92069

BULB,12V 10W

92069-0106

1

$3.30

In stock

92161

DAMPER,SIGNAL LAMP

92161-0828

1

$6.05

In stock

92172

1

$1.53

In stock

92200

WASHER,SIGNAL LAMP

92200-0370

1
Out of stock

224

1

$3.28

In stock
