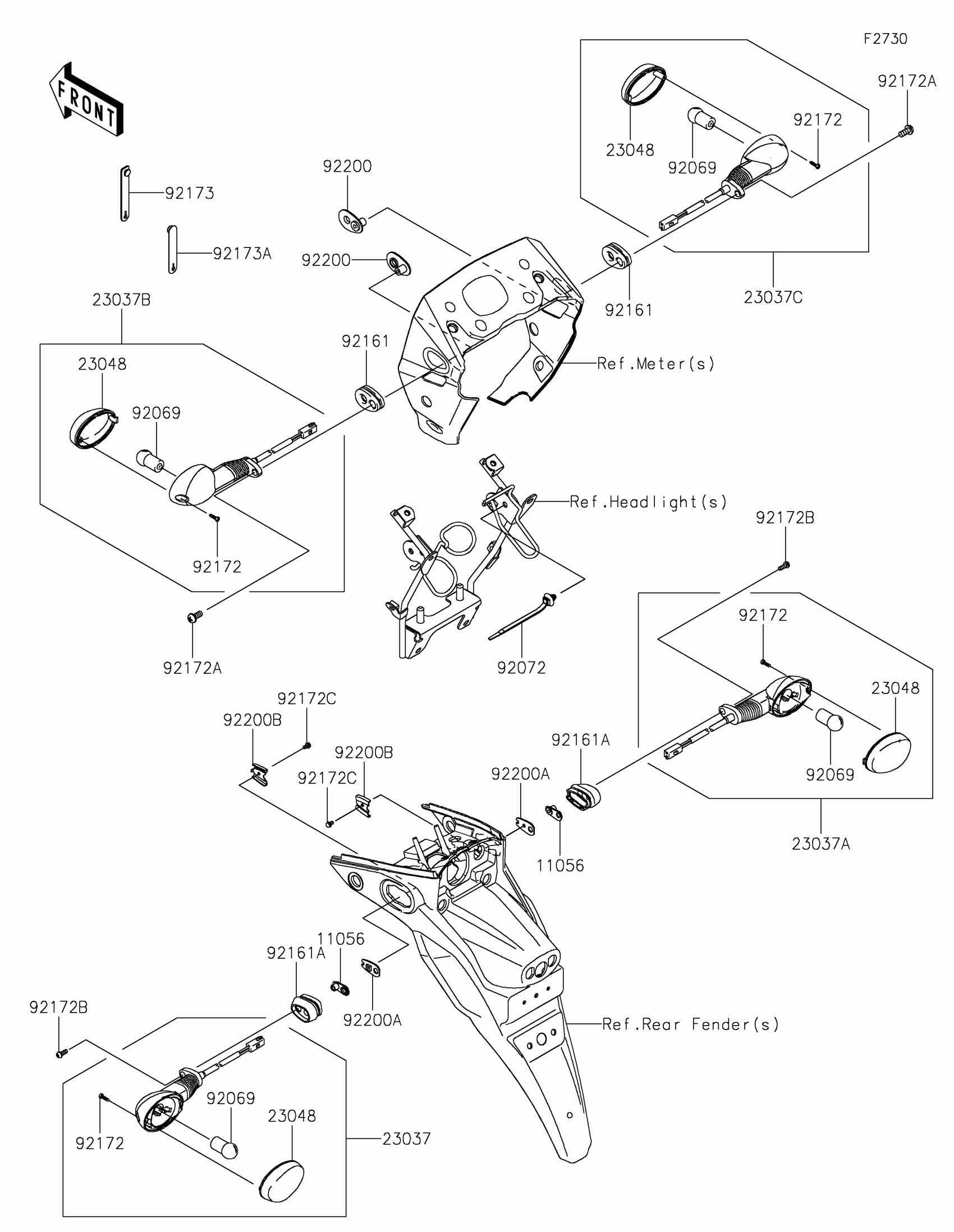

Find the part on the Turn Signals diagram for your 2025 Kawasaki KLX230SM ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLX230SM ABS Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,6MM

11056-4156

1
Out of stock

23037

LAMP-ASSY-SIGNAL,RR,LH

23037-0418

1
Out of stock

23037A

LAMP-ASSY-SIGNAL,RR,RH

23037-0419

1
Out of stock

23037B

LAMP-ASSY-SIGNAL,FR,LH

23037-0456

1
Out of stock

23037C

LAMP-ASSY-SIGNAL,FR,RH

23037-0457

1
Out of stock

23048

LENS-SIGNAL LAMP

23048-0035

1
Out of stock

92069

BULB,12V 10W

92069-0106

1
Out of stock

92072

BAND,OS170-FT7(BLACK)

92072-0947

1
Out of stock

92161

DAMPER,MOUNT,FR

92161-2113

1
Out of stock

92161A

DAMPER,SIGNAL LAMP

92161-2549

1
Out of stock

92172

SCREW,TAPPING,2.9X13

92172-0343

1
Out of stock

92172A

SCREW,6X14

92172-0497

1
Out of stock

92172B

SCREW-PAN-WP-CROS,6X14

92172-1256

1
Out of stock

92172C

SCREW,4X8

92172-1542

1
Out of stock

92173

CLAMP

92173-2198

1
Out of stock

92173A

CLAMP

92173-2199

1
Out of stock

92200

WASHER,SIGNAL LAMP

92200-0370

1
Out of stock

92200A

WASHER,W/NUT,M4

92200-1978

1
Out of stock

92200B

WASHER

92200-1979

1
Out of stock
