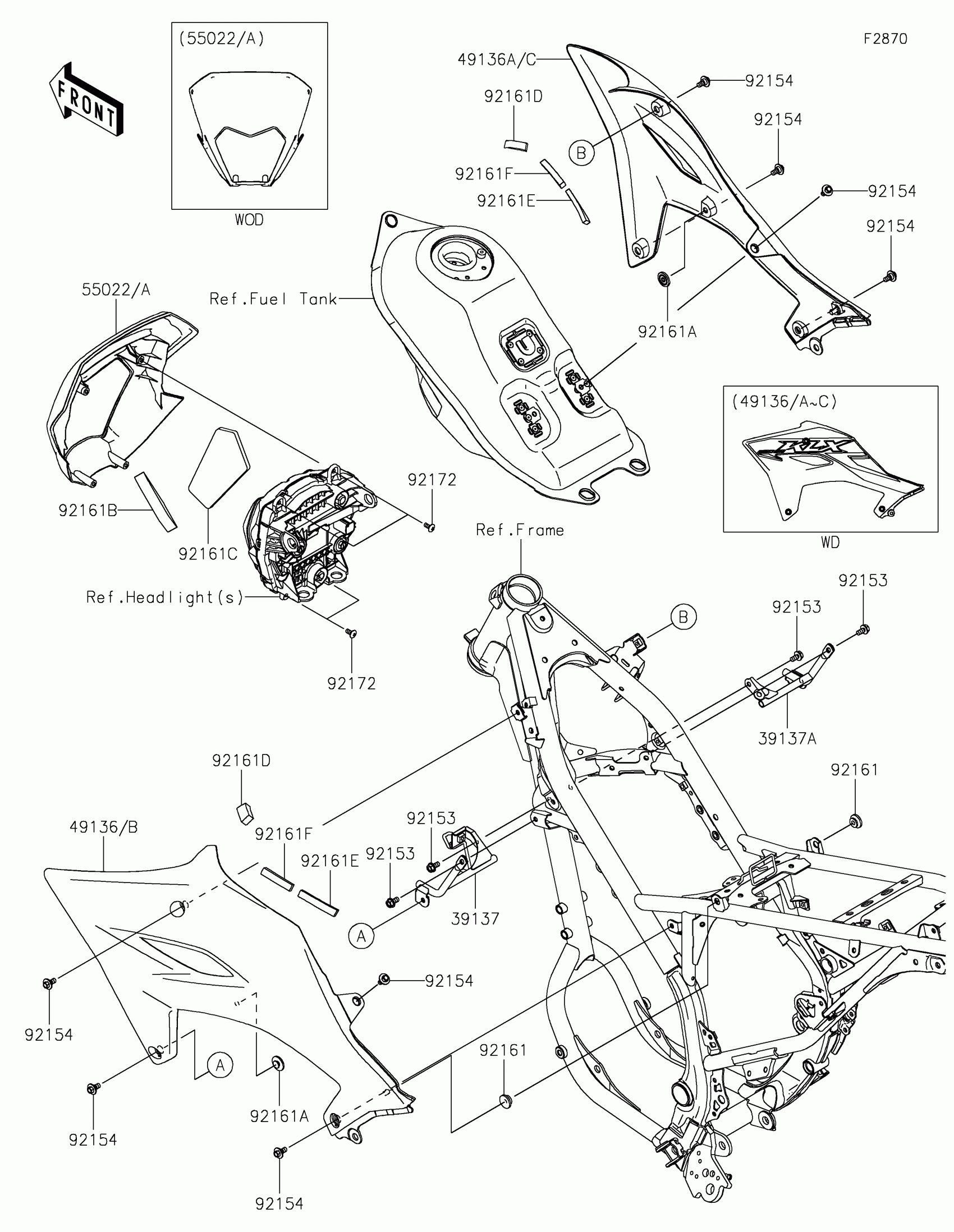

Find the part on the Cowling diagram for your 2025 Kawasaki KLX230SM ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLX230SM ABS Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39137

STAY-COMP,LH,F.S.BLACK

39137-0747-18R

1

$61.53

In stock

39137A

STAY-COMP,RH,F.S.BLACK

39137-0748-18R

1

$54.55

In stock

49136

SHROUD-ENGINE,LH,B.GRAY

49136-5265-67A

1

$189.74

In stock

49136A

SHROUD-ENGINE,RH,B.GRAY

49136-5266-67A

1

$189.74

In stock

49136B

SHROUD-ENGINE,LH,P.BLUE

49136-5267-67E

1

$189.74

In stock

49136C

SHROUD-ENGINE,RH,P.BLUE

49136-5268-67E

1

$189.74

In stock

55022

COVER-HEAD LAMP,B.GRAY

55022-0331-67A

1

$65.70

In stock

55022A

COVER-HEAD LAMP,P.BLUE

55022-0331-67E

1

$65.70

In stock

92153

BOLT,FLANGED,6X12

92153-1283

1
Out of stock

92154

BOLT,FLANGED,6X13

92154-4411

1

$2.97

In stock

92161

DAMPER

92161-1531

1

$2.44

In stock

92161A

DAMPER

92161-2547

1

$0.85

In stock

92161B

1

$4.08

In stock

92161C

1

$4.08

In stock

92161D

DAMPER,15X30X10

92161-2674

1

$1.32

In stock

92161E

DAMPER,10X60X6

92161-2724

1

$1.81

In stock

92161F

DAMPER,10X50X8

92161-2725

1

$1.81

In stock

92172

SCREW,5X12

92172-1095

1

$0.68

In stock
