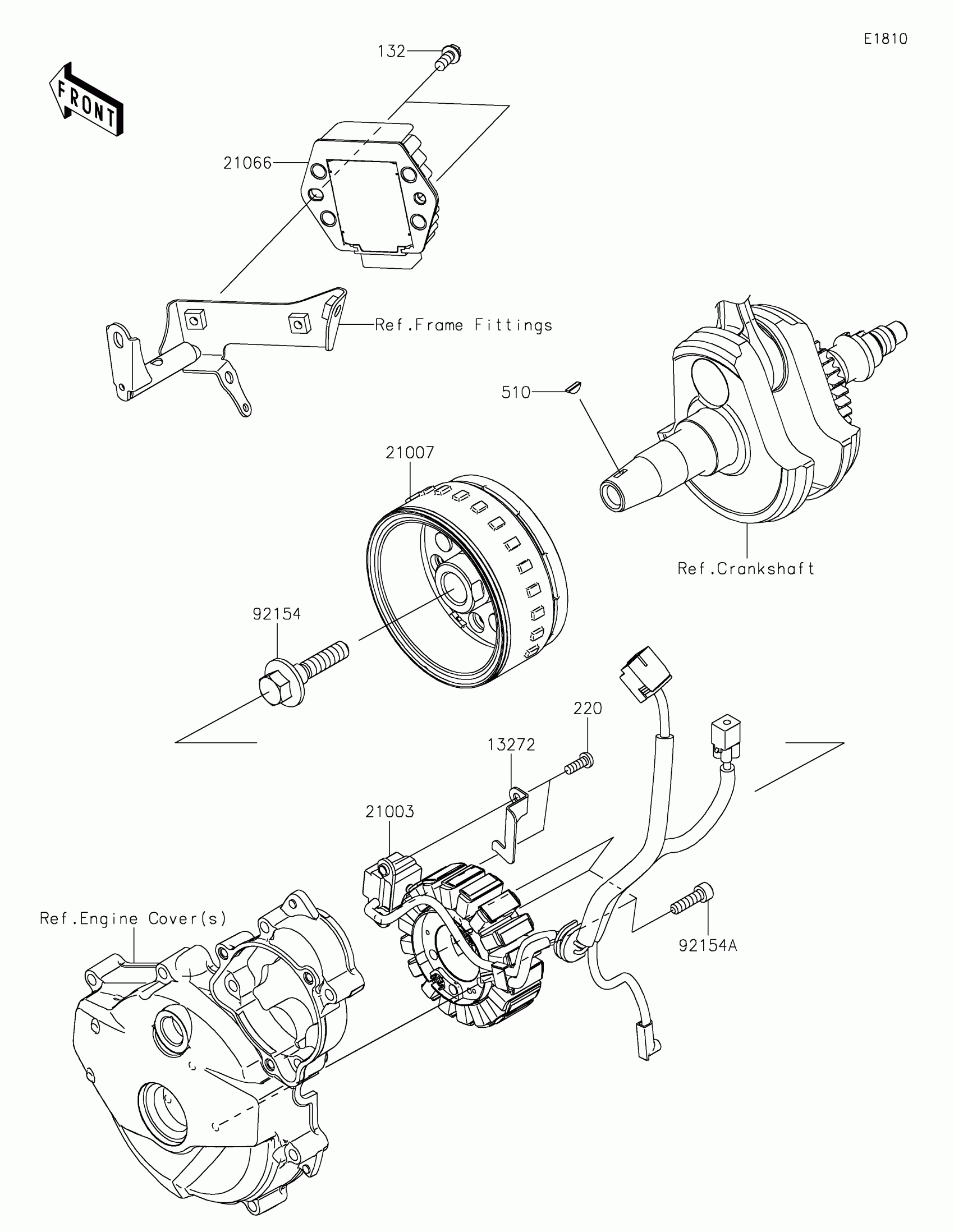

Find the part on the Generator diagram for your 2025 Kawasaki KLX230SM ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLX230SM ABS Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE,PULSING COIL

13272-2615

1

$1.03

In stock

21003

STATOR

21003-0211

1

$608.68

In stock

21007

ROTOR

21007-0722

1

$248.56

In stock

21066

REGULATOR-VOLTAGE

21066-0793

1

$236.87

In stock

92154

BOLT

92154-1309

1

$5.66

In stock

92154A

BOLT,SOCKET,6X22

92154-7473

1

$1.68

In stock

132

1

$1.31

In stock

220

1

$3.52

In stock

510

KEY-WOODRUFF

510A3100

1

$2.17

In stock
