2025 Kawasaki KLX230SM ABS Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 2025 Kawasaki KLX230SM ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

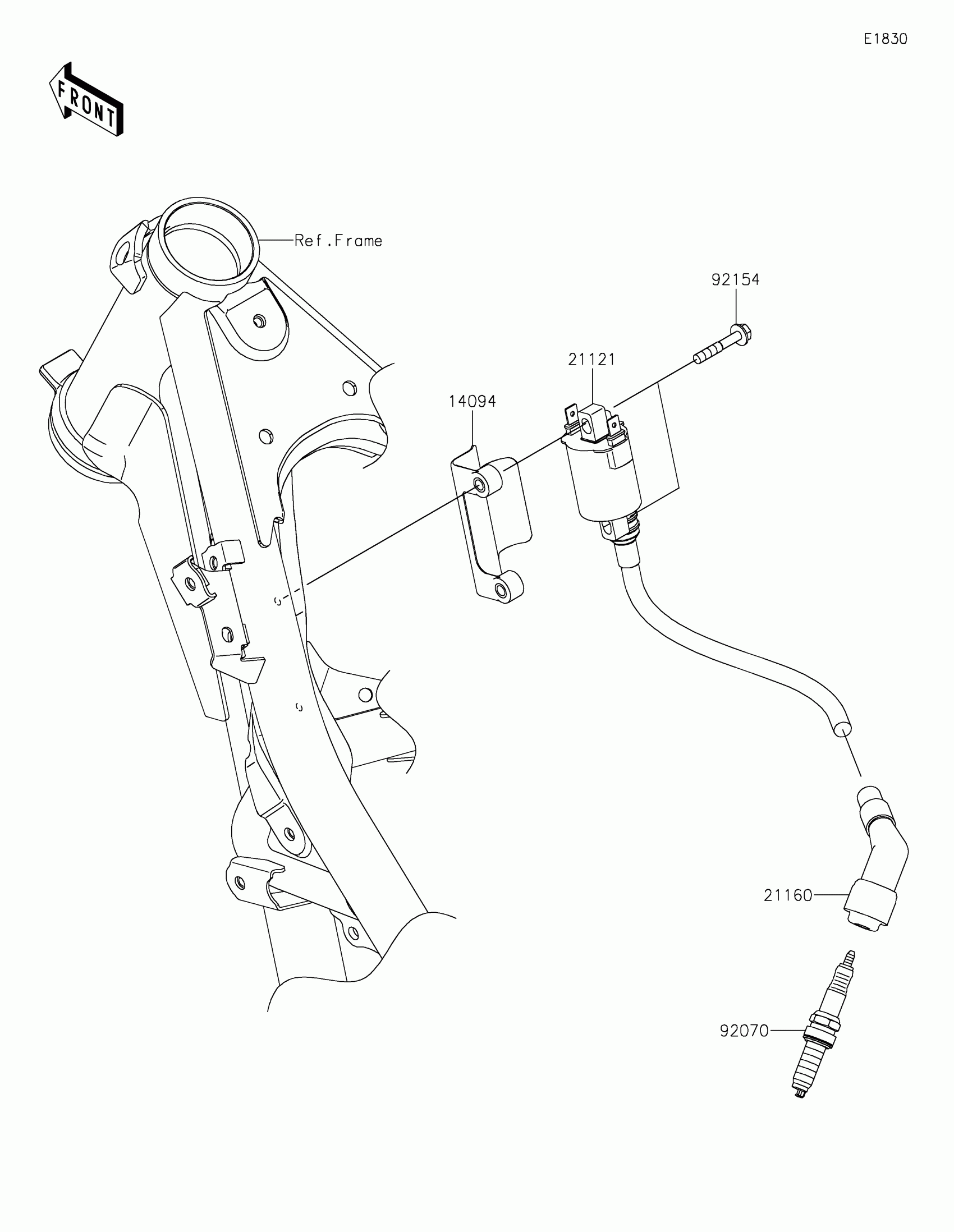

2025 Kawasaki KLX230SM ABS Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14094

COVER

14094-0012

1

$5.88

In stock

21121

COIL-IGNITION

21121-0753

1

$51.65

In stock

21160

CAP-ASSY-PLUG

21160-0026

1

$30.32

In stock

92070

1

$18.97

In stock

92154

BOLT,FLANGED,5X30

92154-7467

1

$2.42

In stock
