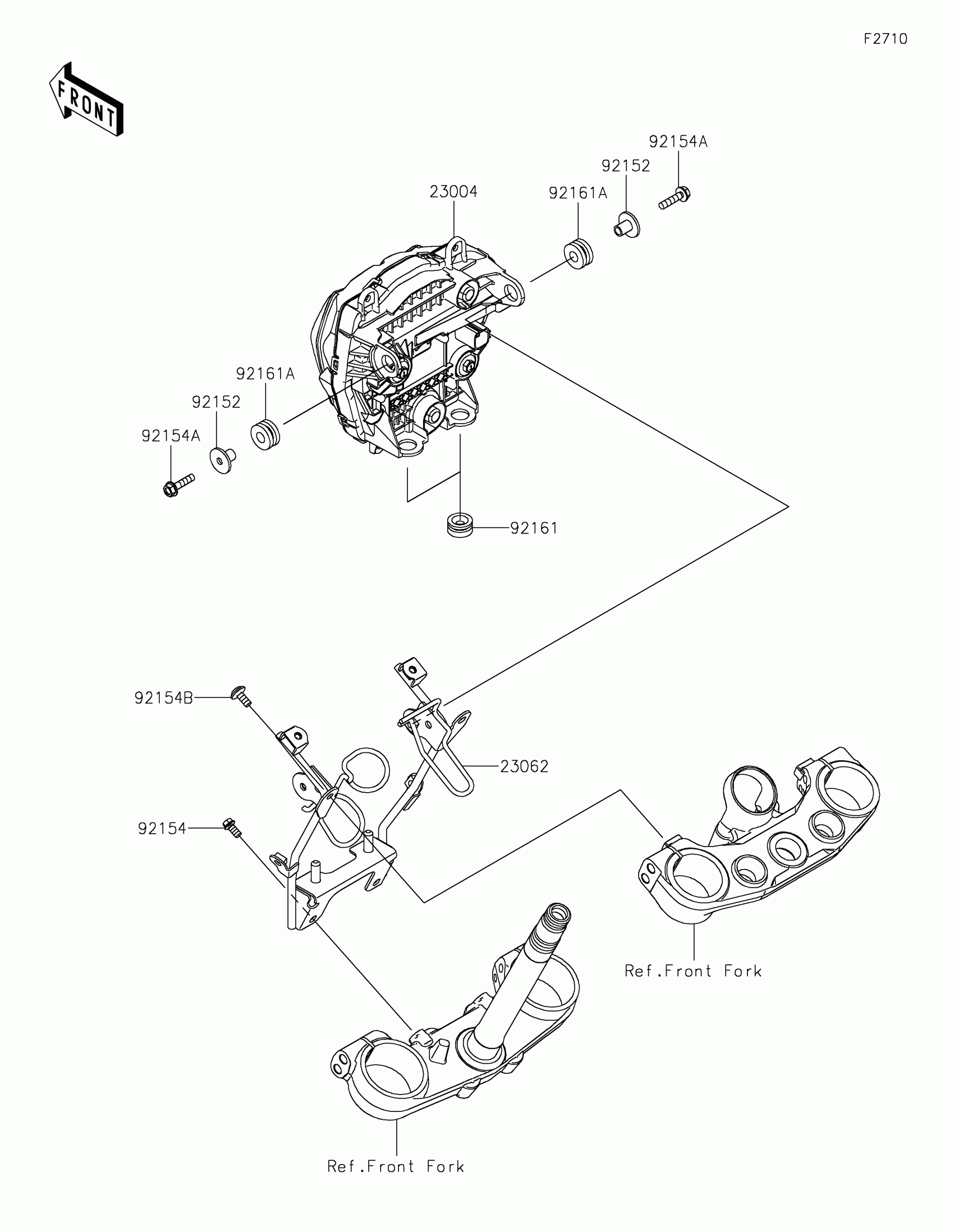

Find the part on the Headlight diagram for your 2025 Kawasaki KLX230SM ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLX230SM ABS Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23004

LAMP-HEAD,LED

23004-0431

1

$1,055.44

In stock

23062

1

$105.91

In stock

92152

COLLAR,6.5X10X15.3

92152-1793

1

$7.75

In stock

92154

BOLT,FLANGED,6X12

92154-2753

1

$2.20

In stock

92154A

BOLT,FLANGED,6X25

92154-2774

1

$2.59

In stock

92154B

BOLT,SOCKET,6X14

92154-3763

1

$1.27

In stock

92161

DAMPER,7.5X22X11

92161-1536

1

$4.95

In stock

92161A

DAMPER,10X24X12

92161-2112

1

$3.97

In stock
