2025 Kawasaki KLX230SM ABS Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2025 Kawasaki KLX230SM ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

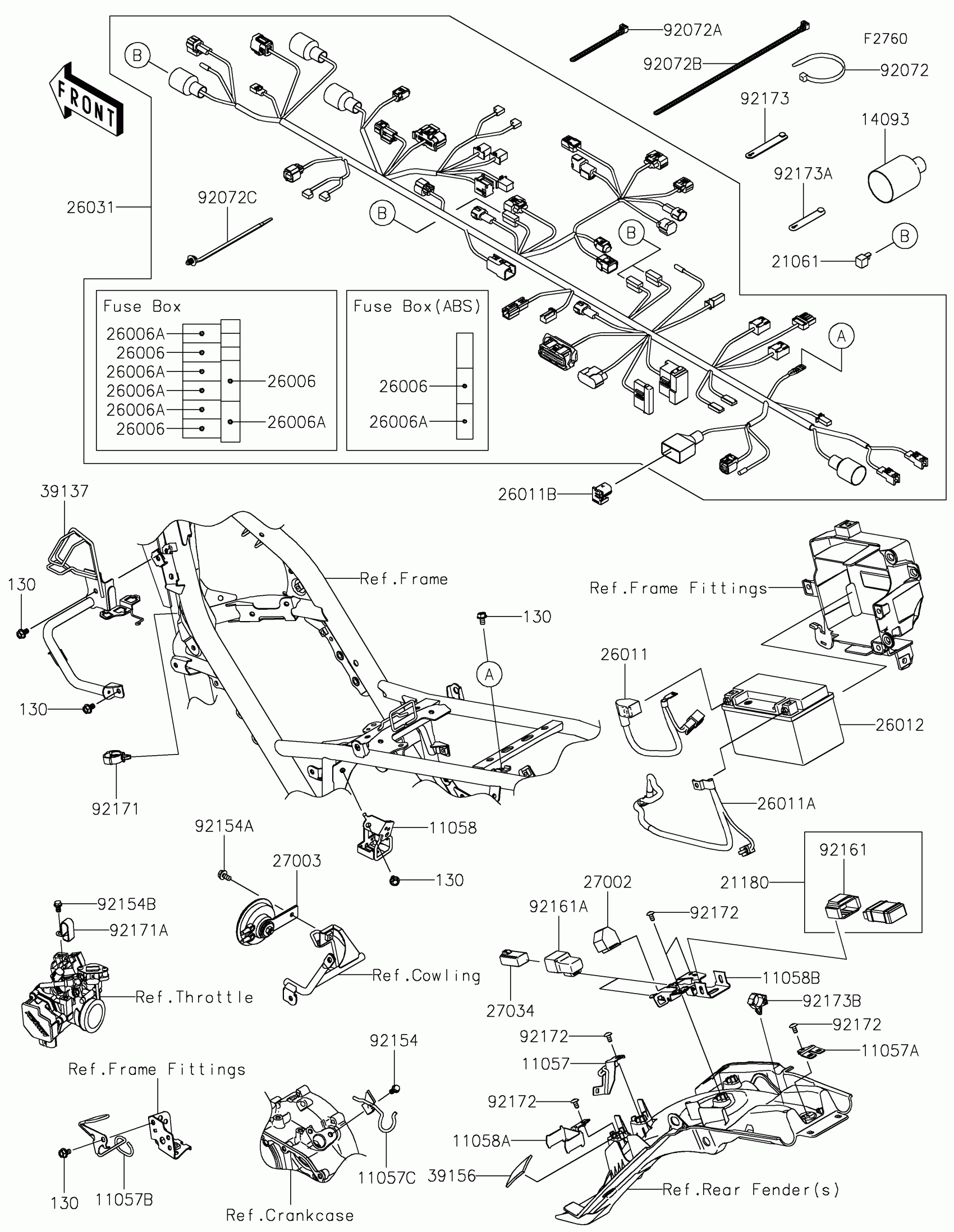

2025 Kawasaki KLX230SM ABS Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,FUSE BOX

11057-2350

1
Out of stock

11057A

BRACKET,RR HARNESS

11057-2351

1
Out of stock

11057B

BRACKET

11057-2463

1
Out of stock

11057C

BRACKET,BRAKE HOSE&HARNESS

11057-2772

1
Out of stock

11058

BRACKET

11058-1293

1
Out of stock

11058A

BRACKET

11058-1296

1
Out of stock

11058B

BRACKET

11058-1299

1
Out of stock

14093

COVER,HARNESS

14093-0720

1
Out of stock

21061

RECTIFIER

21061-1003

1
Out of stock

21180

TRANSCEIVER,BLUETOOTH

21180-0007

1
Out of stock

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

1
Out of stock

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

1
Out of stock

26011

WIRE-LEAD,BATTERY(+)

26011-2455

1
Out of stock

26011A

WIRE-LEAD,BATTERY(-)

26011-2456

1
Out of stock

26011B

WIRE-LEAD,DIAG CONNECTOR

26011-2468

1
Out of stock

26012

BATTERY,YTX7A-BS,12V 6.3AH

26012-0989

1
Out of stock

26031

HARNESS,MAIN

26031-4406

1
Out of stock

27002

RELAY-ASSY,TURN SIGNAL

27002-0031

1
Out of stock

27003

HORN

27003-0166

1
Out of stock

27034

RELAY

27034-0012

1
Out of stock

39137

STAY-COMP

39137-0749

1
Out of stock

39156

PAD,55X30X5

39156-2451

1
Out of stock

92072

BAND,L=152

92072-0948

1
Out of stock

92072A

BAND,L=140

92072-0949

1
Out of stock

92072B

BAND,L=250

92072-0950

1
Out of stock

92072C

BAND,OS170-FT7(BLACK)

92072-1414

—
Out of stock

92154

BOLT,FLANGED,6X12

92154-1776

1
Out of stock

92154A

BOLT,FLANGED,6X12

92154-2776

1
Out of stock

92154B

BOLT,FLANGED,6X10

92154-7280

1
Out of stock

92161

DAMPER

92161-2516

1
Out of stock

92161A

DAMPER,RELAY

92161-2546

1
Out of stock

92171

CLAMP,20MM DIA.

92171-0069

1
Out of stock

92171A

CLAMP

92171-0911

1
Out of stock

92172

SCREW,CROS,5X10

92172-1255

1
Out of stock

92173

CLAMP

92173-2194

1
Out of stock

92173A

CLAMP

92173-2199

1
Out of stock

92173B

CLAMP

92173-2737

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1
Out of stock
