2025 Kawasaki KLX230SM ABS Wheels/tires Diagram

← All diagrams

Find the part on the Wheels/tires diagram for your 2025 Kawasaki KLX230SM ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

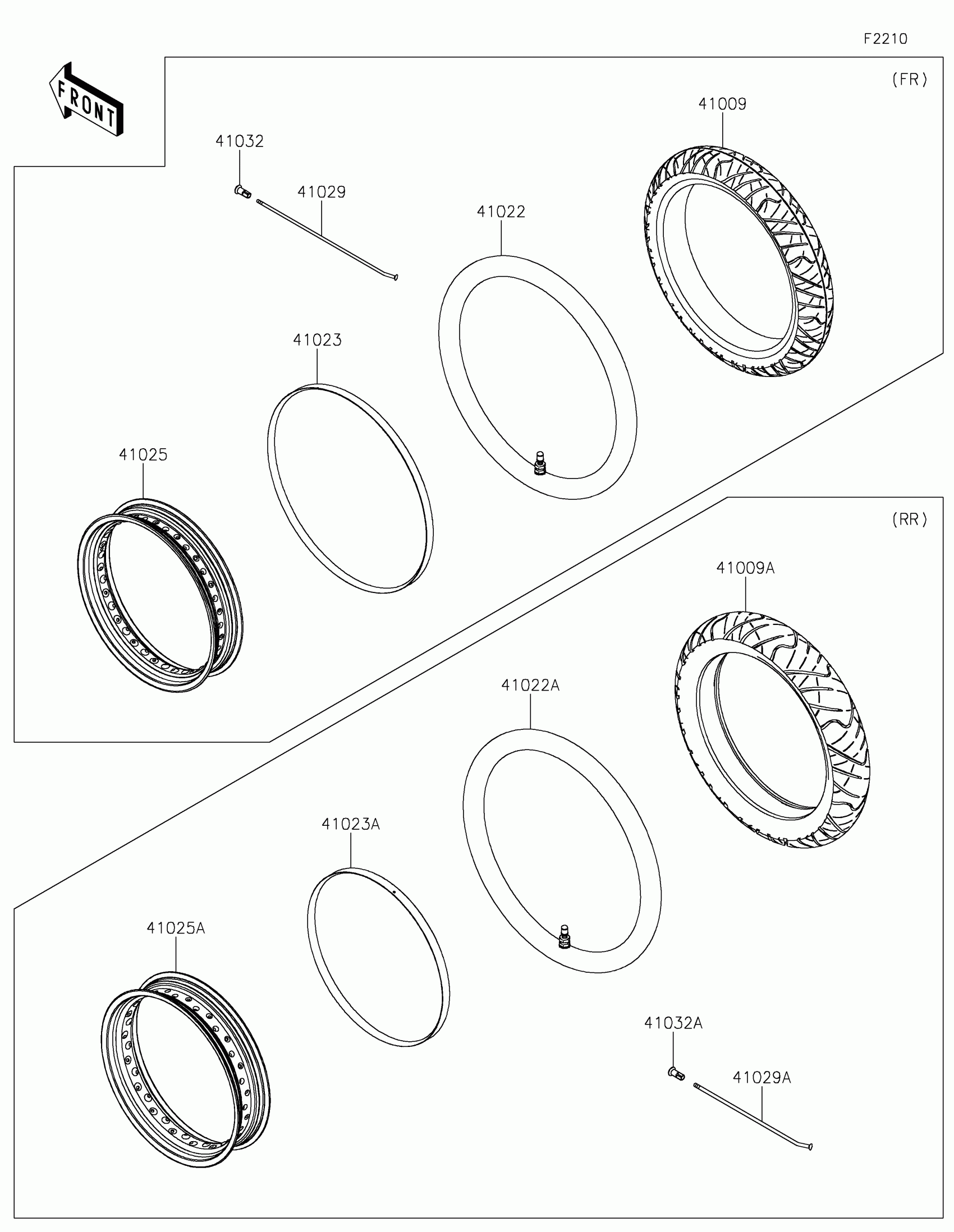

2025 Kawasaki KLX230SM ABS Wheels/tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41009

1

$156.11

In stock

41009A

1

$204.33

In stock

41022

TUBE-TIRE,110/70-17

41022-0135

1

$49.90

In stock

41022A

TUBE-TIRE,120/70-17

41022-0136

1

$49.90

In stock

41023

BAND-RIM,25-17

41023-0034

1

$13.64

In stock

41023A

BAND-RIM

41023-0046

1

$5.66

In stock

41025

1

$418.61

In stock

41025A

1

$418.61

In stock

41029

1

$3.63

In stock

41029A

1

$3.63

In stock

41032

NIPPLE-SPOKE

41032-0010

1

$2.92

In stock

41032A

NIPPLE-SPOKE

41032-0013

1

$2.66

In stock
