2022 Kawasaki KLX®230 S Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2022 Kawasaki KLX®230 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

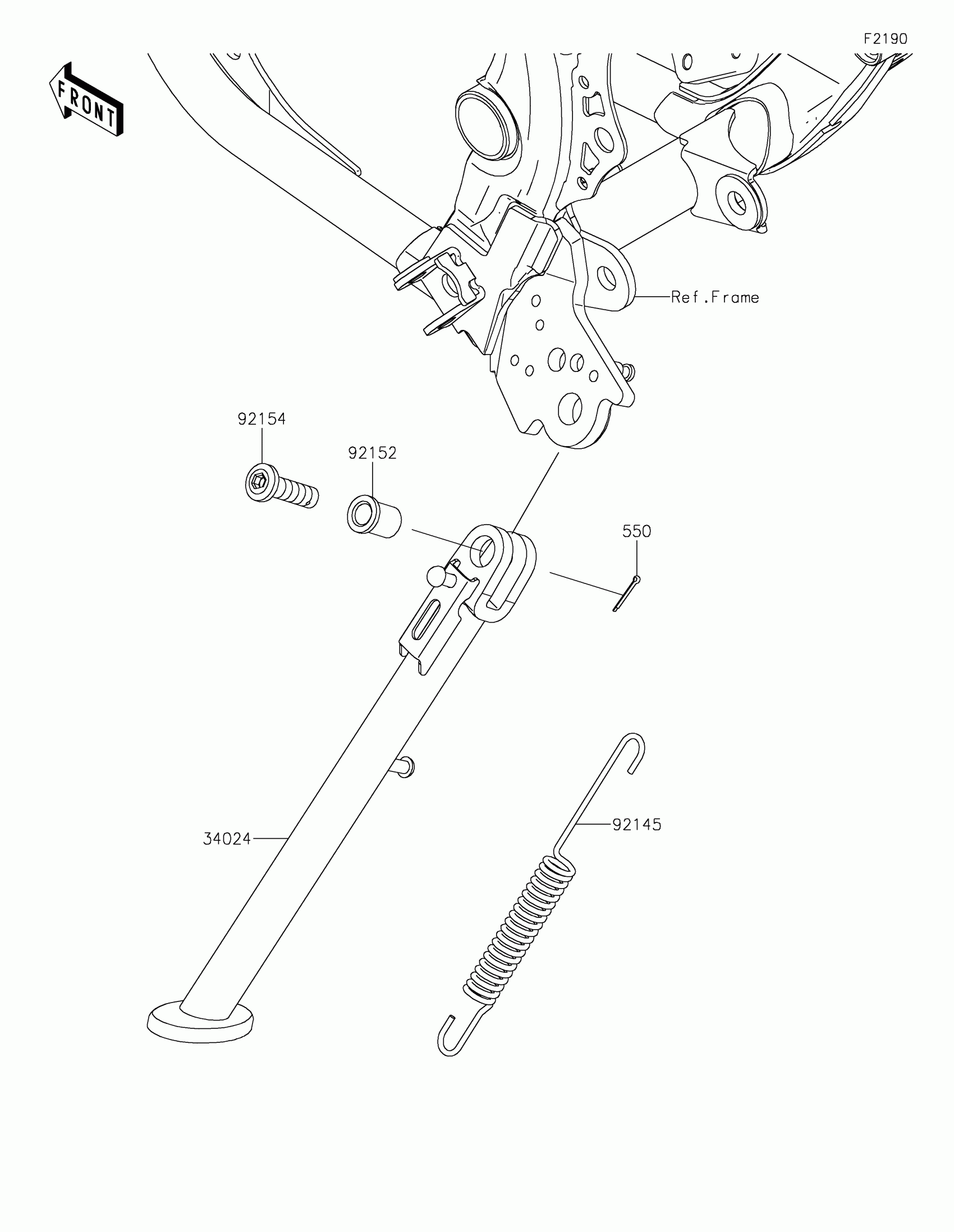

2022 Kawasaki KLX®230 S Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34024

STAND-SIDE,P.SILVER

34024-0176-458

1

$90.00

In stock

92145

SPRING,SIDE STAND

92145-1910

1

$9.25

In stock

92152

COLLAR

92152-2561

1

$10.29

In stock

92154

BOLT,SIDE STAND

92154-3895

1

$3.14

In stock

550

PIN-COTTER,2.0X15

550AA2015

1

$0.94

In stock
