2022 Kawasaki KLX®230 S Frame Diagram

← All diagrams

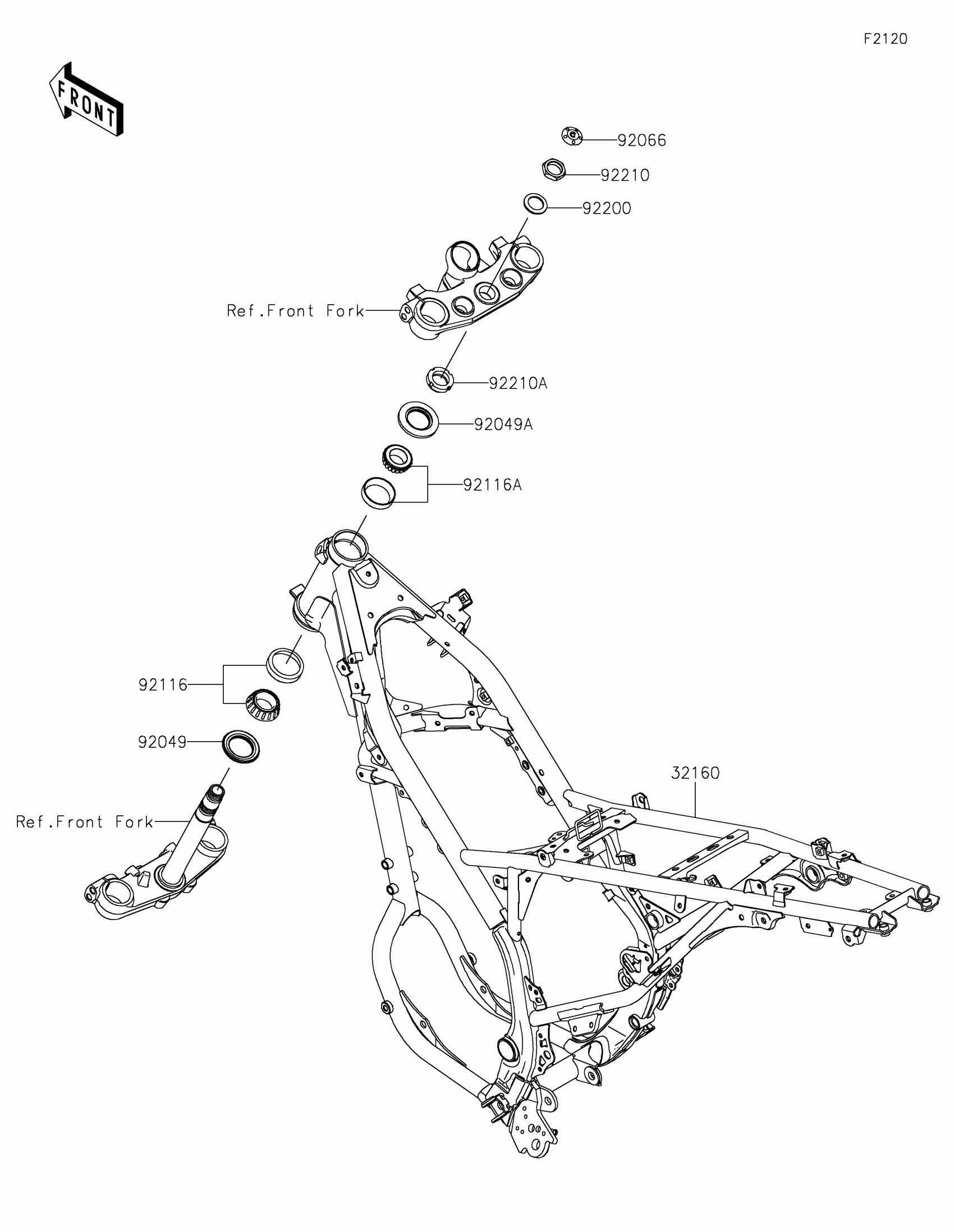

Find the part on the Frame diagram for your 2022 Kawasaki KLX®230 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki KLX®230 S Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32160

FRAME-COMP,P.SILVER

32160-1963-458

1

$1,167.47

In stock

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

1
Out of stock

92049A

SEAL-OIL,STEERING STEM

92049-1214

1
Out of stock

92066

PLUG

92066-0162

1

$4.22

In stock

92116

1

$33.21

In stock

92116A

1

$37.01

In stock

92200

WASHER,STEERING STEM

92200-0517

1
Out of stock

92210

NUT,STEERING STEM,22MM

92210-1521

1
Out of stock

92210A

1

$18.66

In stock
