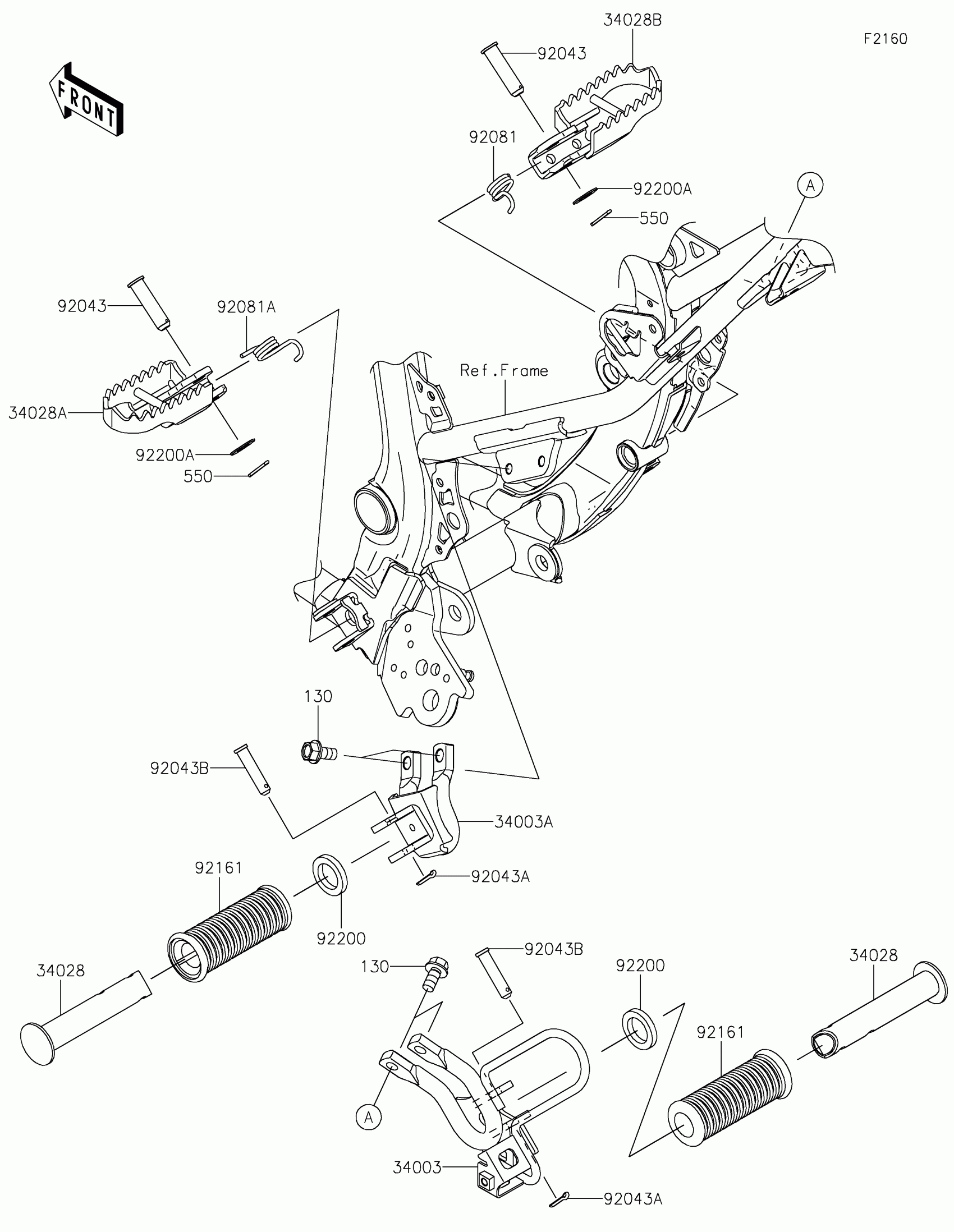

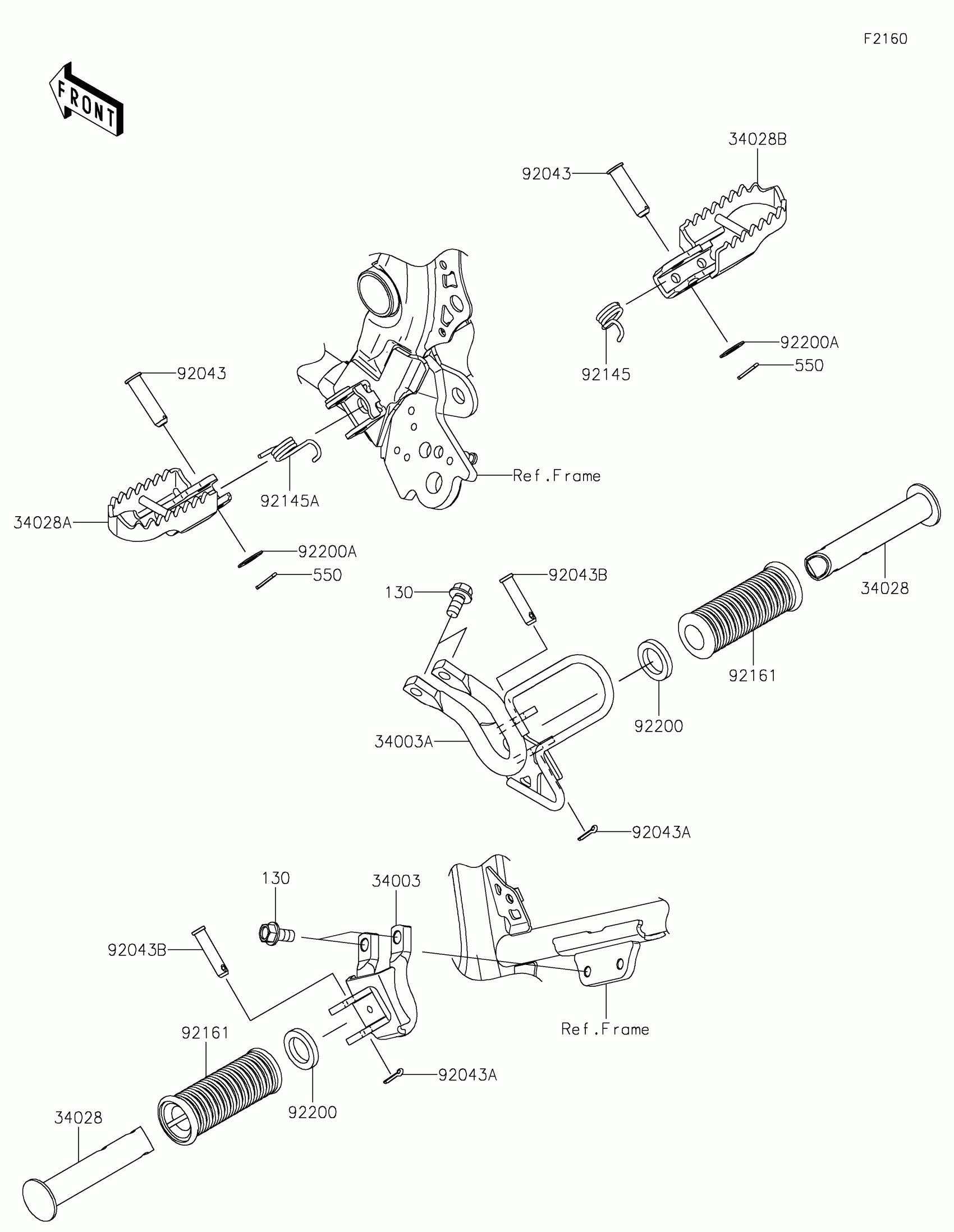

Find the part on the Footrests diagram for your 2022 Kawasaki KLX®230 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki KLX®230 S Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34003

HOLDER-STEP,RH,P.SILVER

34003-0182-458

1

$54.12

In stock

34003A

HOLDER-STEP,LH,P.SILVER

34003-0183-458

1

$36.23

In stock

34028

STEP,RR

34028-0007

1

$8.25

In stock

34028A

STEP,LH

34028-0369

1

$43.20

In stock

34028B

STEP,RH

34028-0371

1

$43.20

In stock

92043

PIN,10X35

92043-0744

1

$5.24

In stock

92043A

PIN,COTTER,2.5X18

92043-0771

1

$0.69

In stock

92043B

PIN

92043-1714

1

$1.56

In stock

92081

SPRING,STEP,LH

92081-1606

1

$9.49

In stock

92081A

SPRING,STEP,RH

92081-1607

1

$9.49

In stock

92161

DAMPER,REAR STEP

92161-0866

1

$12.85

In stock

92200

WASHER,20X30X4.5

92200-0869

1
Out of stock

92200A

WASHER,10.5X20X1.0

92200-0870

1
Out of stock

130

BOLT-FLANGED,8X16

130CA0816

1

$2.05

In stock

550

PIN-COTTER,2.0X18

550AA2018

1

$2.08

In stock
