2022 Kawasaki KLX®230 S Labels Diagram

← All diagrams

Find the part on the Labels diagram for your 2022 Kawasaki KLX®230 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

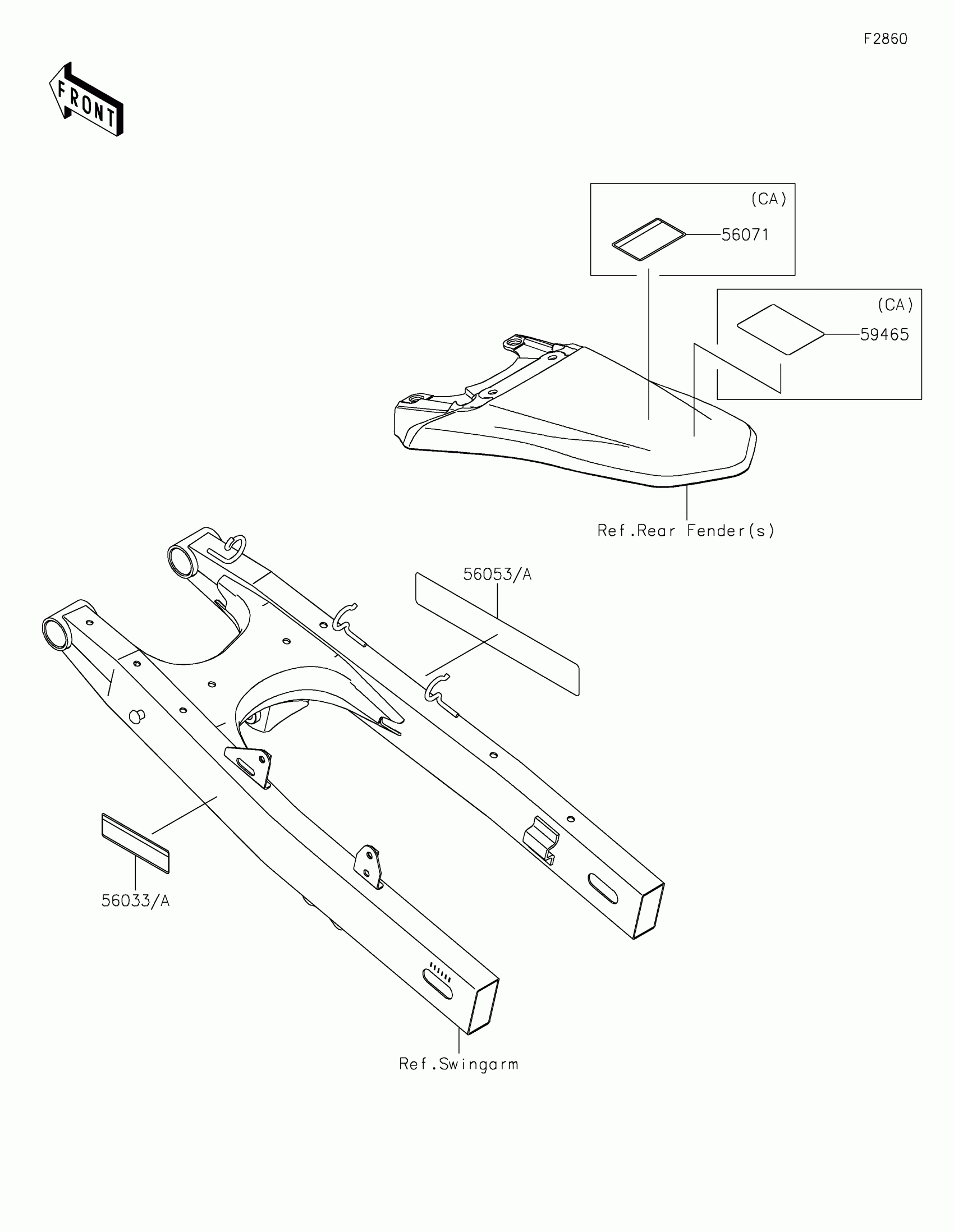

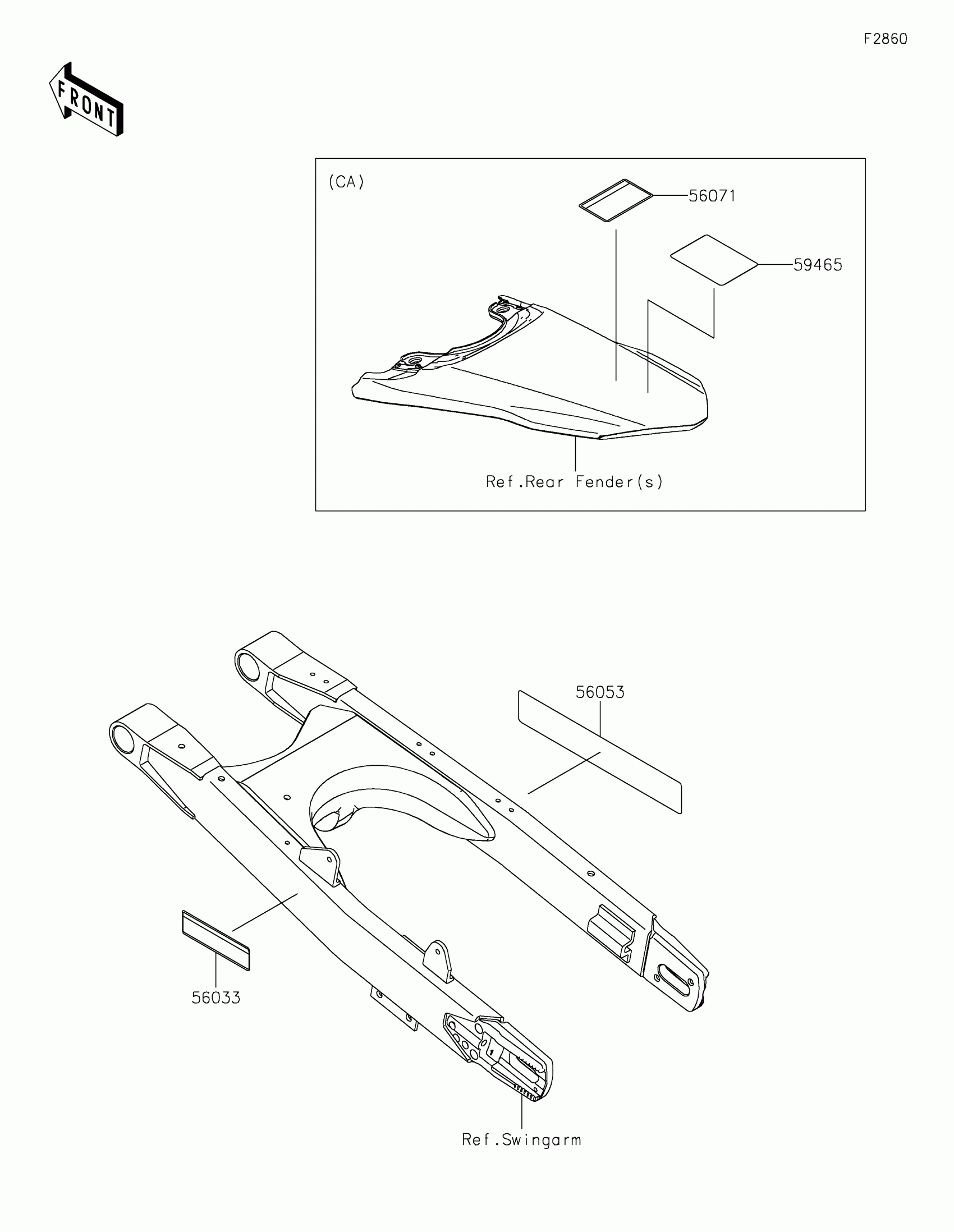

2022 Kawasaki KLX®230 S Labels Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56033

LABEL-MANUAL,CHAIN

56033-1466

1

$7.97

In stock

56033A

LABEL-MANUAL,CHAIN

56033-1468

1
Out of stock

56053

1

$44.94

In stock

56053A

LABEL-SPECIFICATION,TIRE&LOAD

56053-1780

1
Out of stock

56071

LABEL-WARNING,EVAPO

56071-0158

1

$5.45

In stock

59465

1

$17.31

In stock
← Front Fender Rear Fender →
