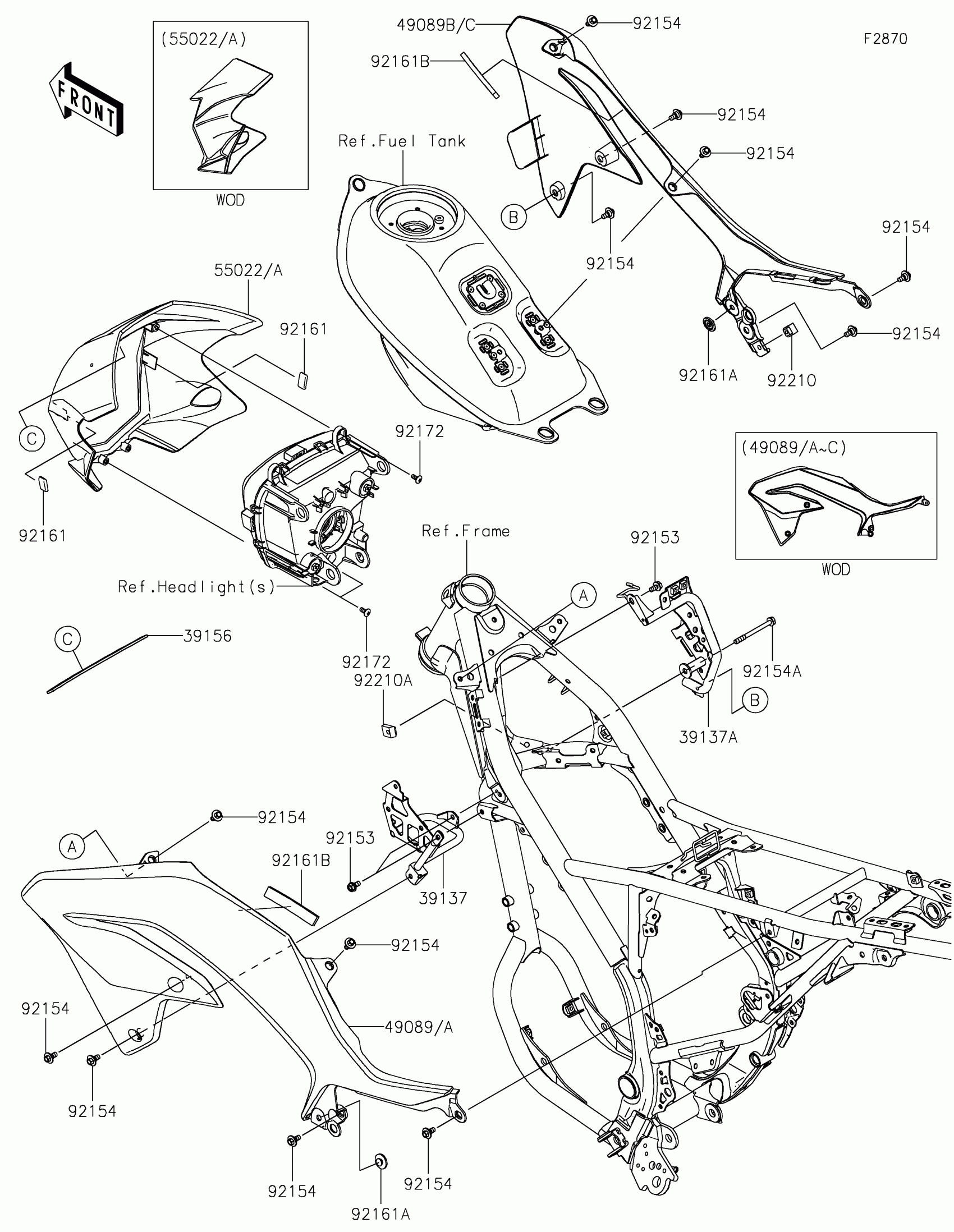

Find the part on the Cowling diagram for your 2022 Kawasaki KLX®230 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

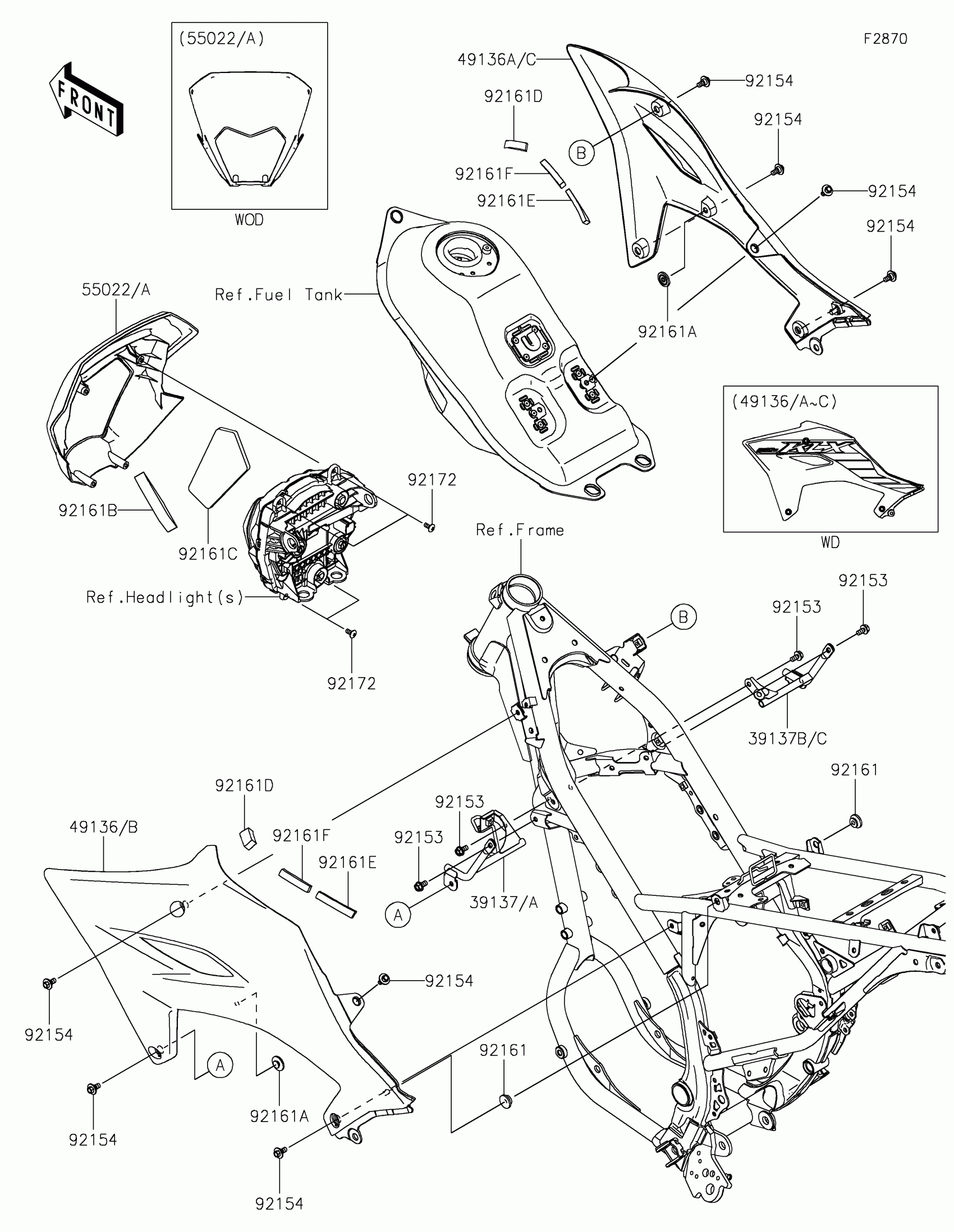

2022 Kawasaki KLX®230 S Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39137

STAY-COMP,LH,P.SILVER

39137-0704-458

1

$90.79

In stock

39137A

STAY-COMP,RH,P.SILVER

39137-0706-458

1

$115.01

In stock

39156

PAD

39156-2562

1

$2.27

In stock

49089

SHROUD-ENGINE,LH,L.GREEN

49089-0957-290

1

$58.46

In stock

49089A

1

$62.54

In stock

49089B

SHROUD-ENGINE,RH,L.GREEN

49089-0958-290

1
Out of stock

49089C

1

$62.54

In stock

55022

COVER-HEAD LAMP,B.WHITE

55022-0324-266

1

$61.95

In stock

55022A

COVER-HEAD LAMP,EBONY

55022-0324-68L

1

$57.90

In stock

92153

BOLT,FLANGED,6X12

92153-1283

1
Out of stock

92154

BOLT,FLANGED,6X9

92154-0546

1

$2.97

In stock

92154A

BOLT-FLANGED,6X70

92154-4093

1

$4.31

In stock

92161

DAMPER,12X23

92161-1367

1

$1.10

In stock

92161A

DAMPER,8X22X10

92161-1685

1

$0.86

In stock

92161B

DAMPER,70X15X6

92161-1838

1

$2.59

In stock

92172

SCREW,5X12

92172-1095

1

$0.68

In stock

92210

NUT,6MM

92210-0218

1
Out of stock

92210A

NUT

92210-1771

1

$20.47

In stock
