2022 Kawasaki KLX®230 S Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2022 Kawasaki KLX®230 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

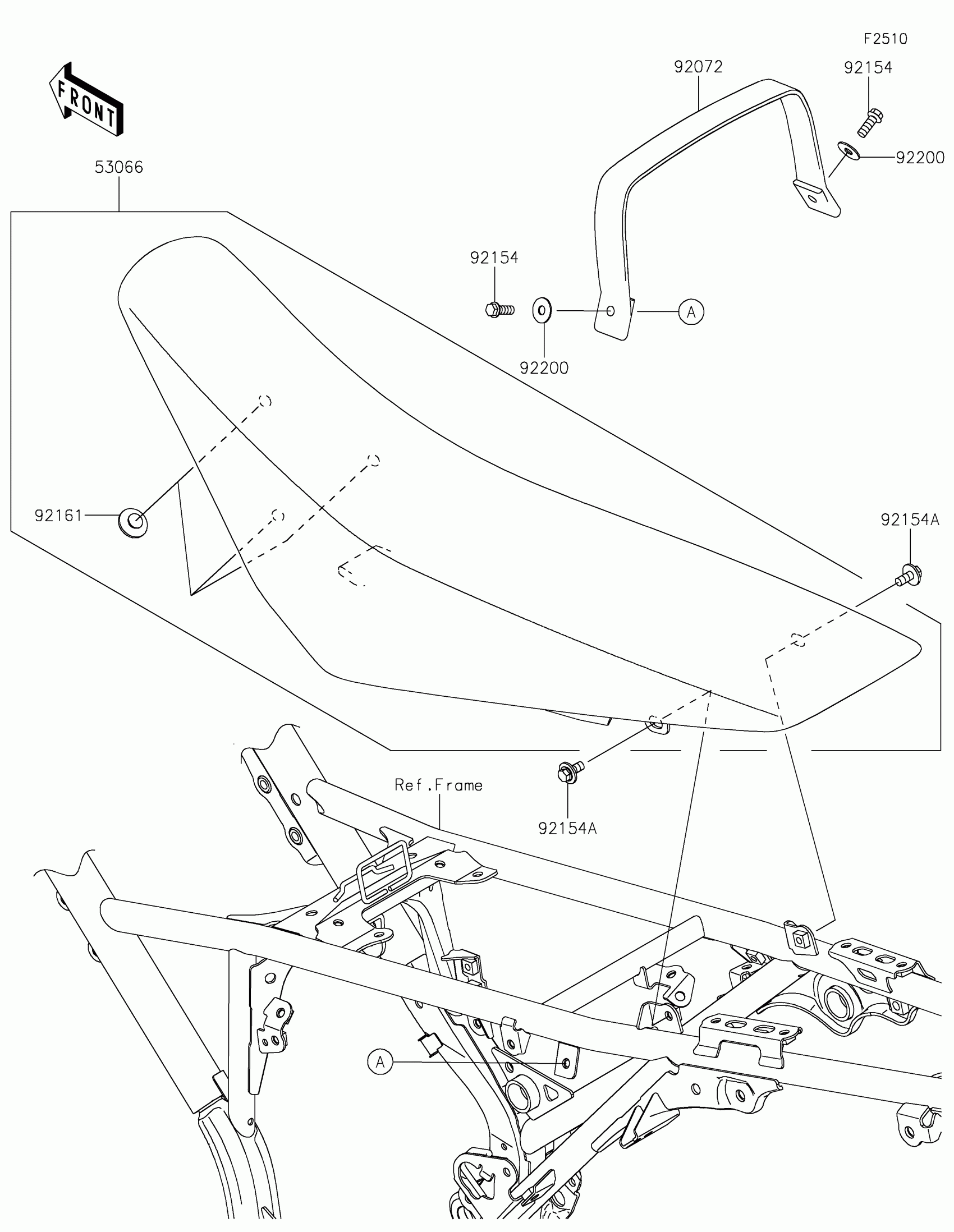

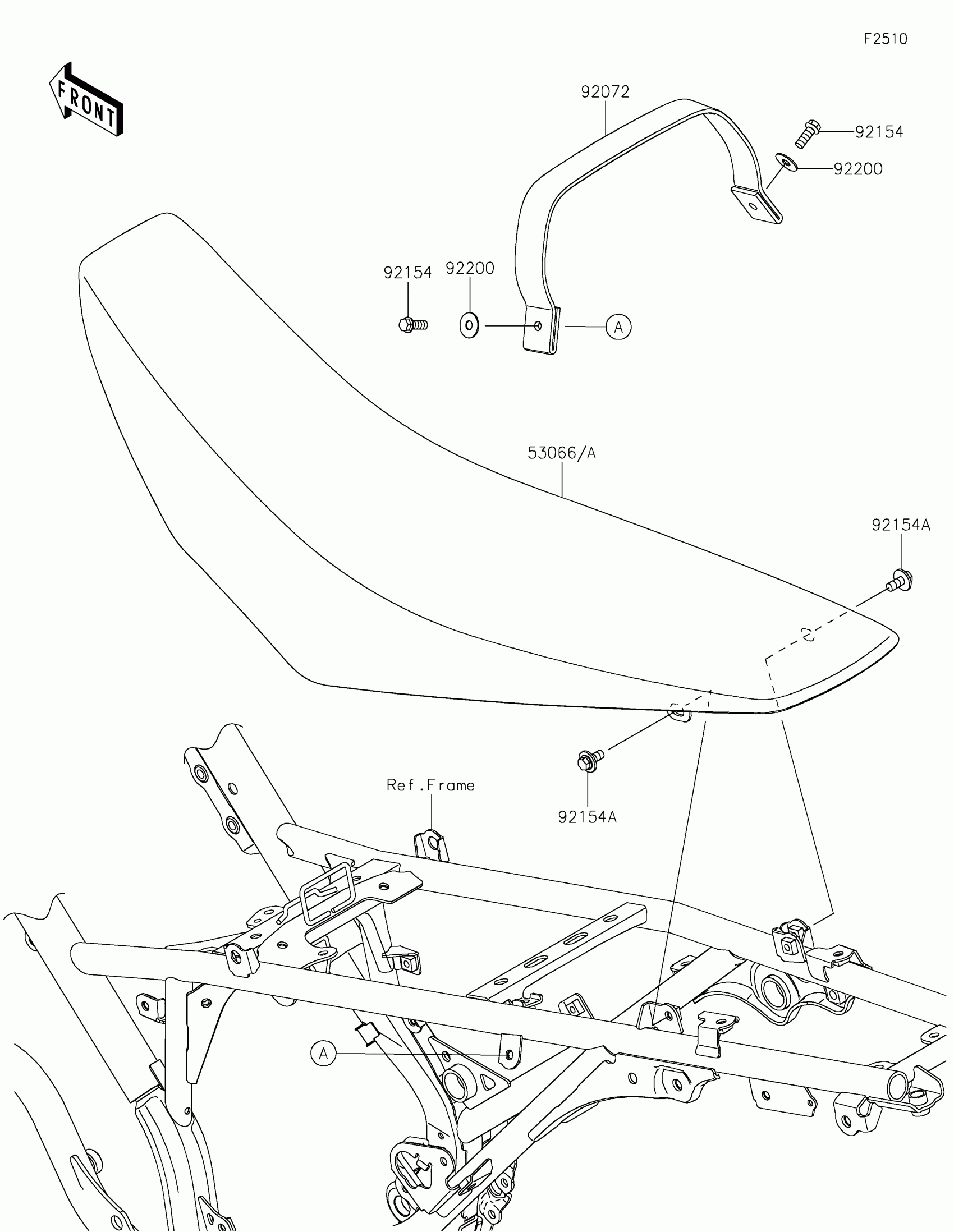

2022 Kawasaki KLX®230 S Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

53066

SEAT-ASSY,BLACK

53066-0692-MA

1

$265.60

In stock

92072

BAND,BLACK

92072-0837-MA

1

$34.16

In stock

92154

BOLT,FLANGED,6X16

92154-0460

1

$1.56

In stock

92154A

BOLT,FLANGED,6X14

92154-1231

1

$2.42

In stock

92161

DAMPER,8X22X10

92161-1685

1

$0.86

In stock

92200

WASHER,6.5X18X1

92200-0544

1
Out of stock
← Rear Fender Stand →

More Body & Frame diagrams
