1991 Kawasaki KLR650 Oil Pump Diagram

← All diagrams

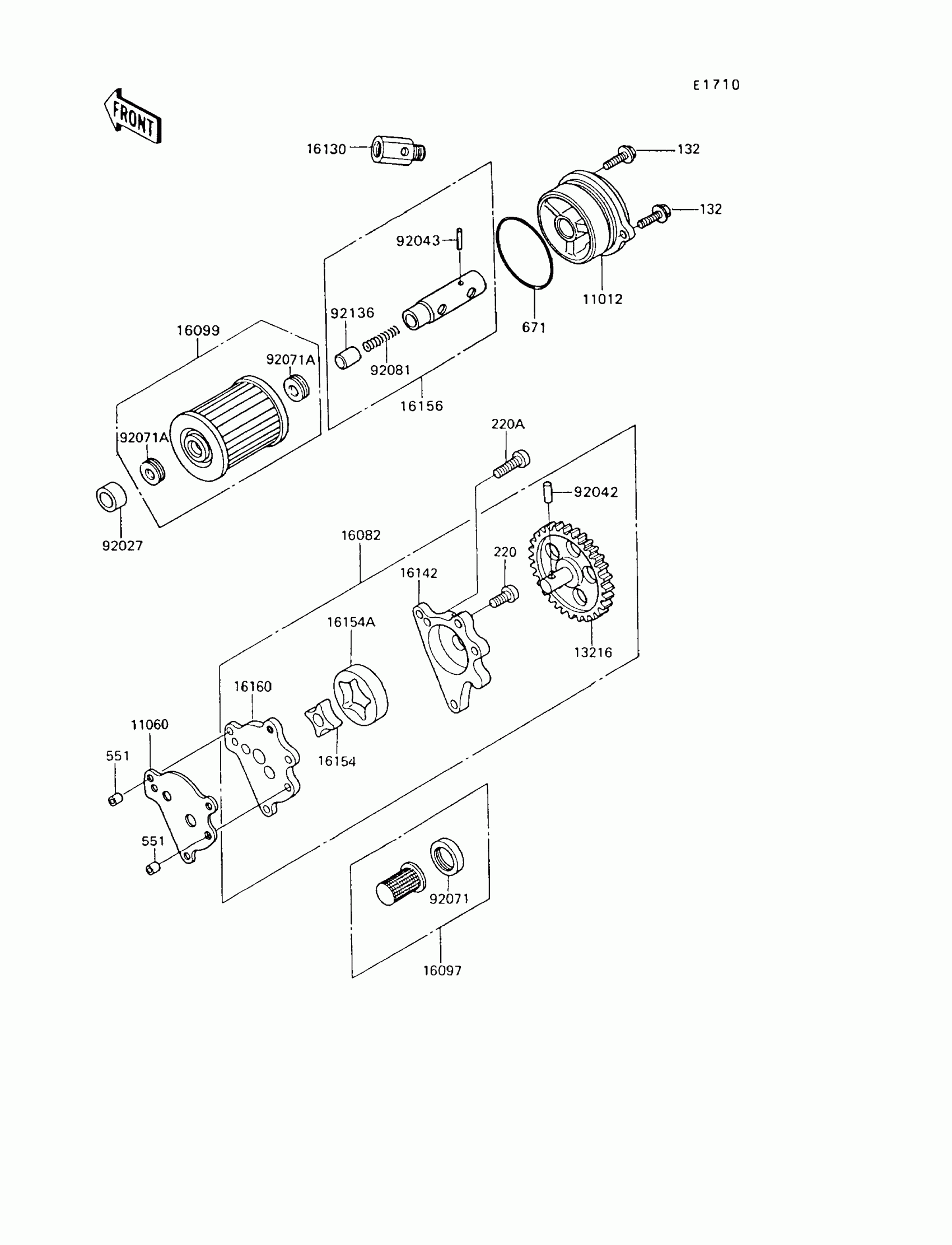

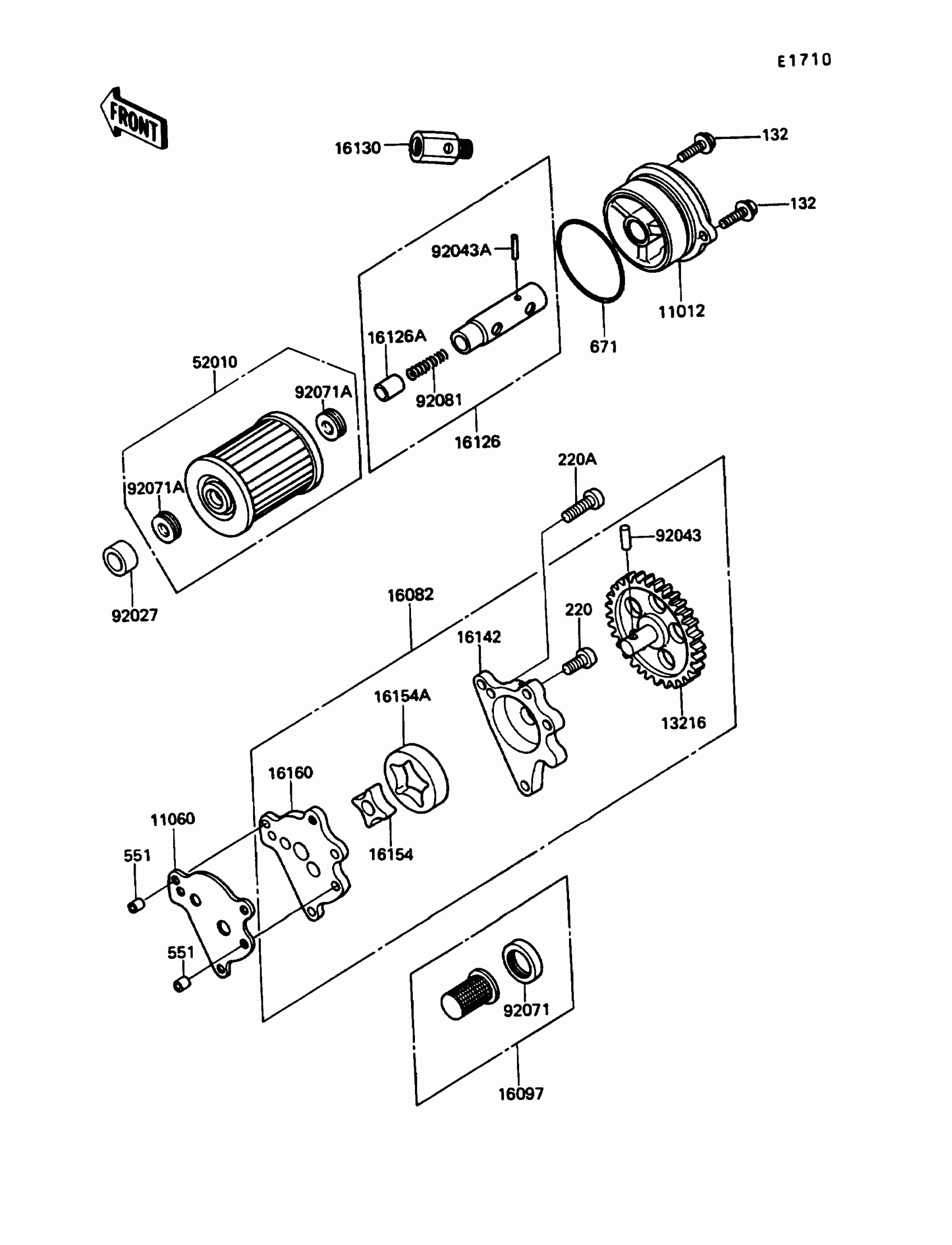

Find the part on the Oil Pump diagram for your 1991 Kawasaki KLR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Kawasaki KLR650 Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,OIL FILTER

11012-1538

1

$52.71

In stock

11060

GASKET,OIL PUMP

11060-1115

1

$4.58

In stock

13216

GEAR-COMP,OIL PUMP

13216-1110

1
Out of stock

16082

PUMP-ASSY-OIL

16082-1088

1

$171.98

In stock

16097

FILTER-ASSY-OIL

16097-1001

1

$9.69

In stock

16126

1

$21.56

In stock

16126A

VALVE

92136-002

1

$4.14

In stock

16130

VALVE-ASSY-RELIEF

16130-1001

1

$41.95

In stock

16142

COVER-PUMP

16142-1078

1

$38.81

In stock

16154

ROTOR-PUMP,INNER

16154-1069

1

$35.48

In stock

16154A

ROTOR-PUMP,OUTER

16154-1070

1

$35.48

In stock

16160

BODY

16160-1137

1

$36.42

In stock

52010

ELEMENT-OIL FILTER

16099-004

1

$7.36

In stock

92027

COLLAR,13X20X9

92027-1695

1

$7.86

In stock

92043

PIN,DOWEL,4X12.8

92042-041

1

$5.71

In stock

92043A

1

$4.17

In stock

92071

1

$4.34

In stock

92071A

GROMMET,OIL FILTER

92071-101

1

$4.34

In stock

92081

SPRING,PISTON

92081-043

1

$4.34

In stock

132

BOLT-FLANGED-SMALL,6X20

132J0620

1
Out of stock

220

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

220A

SCREW PAN HEAD 6X25

220B0625

1
Out of stock

551

PIN-DOWEL,6X8

551A0608

1

$3.53

In stock

671

O RING,55MM

671B2555

1

$4.93

In stock
