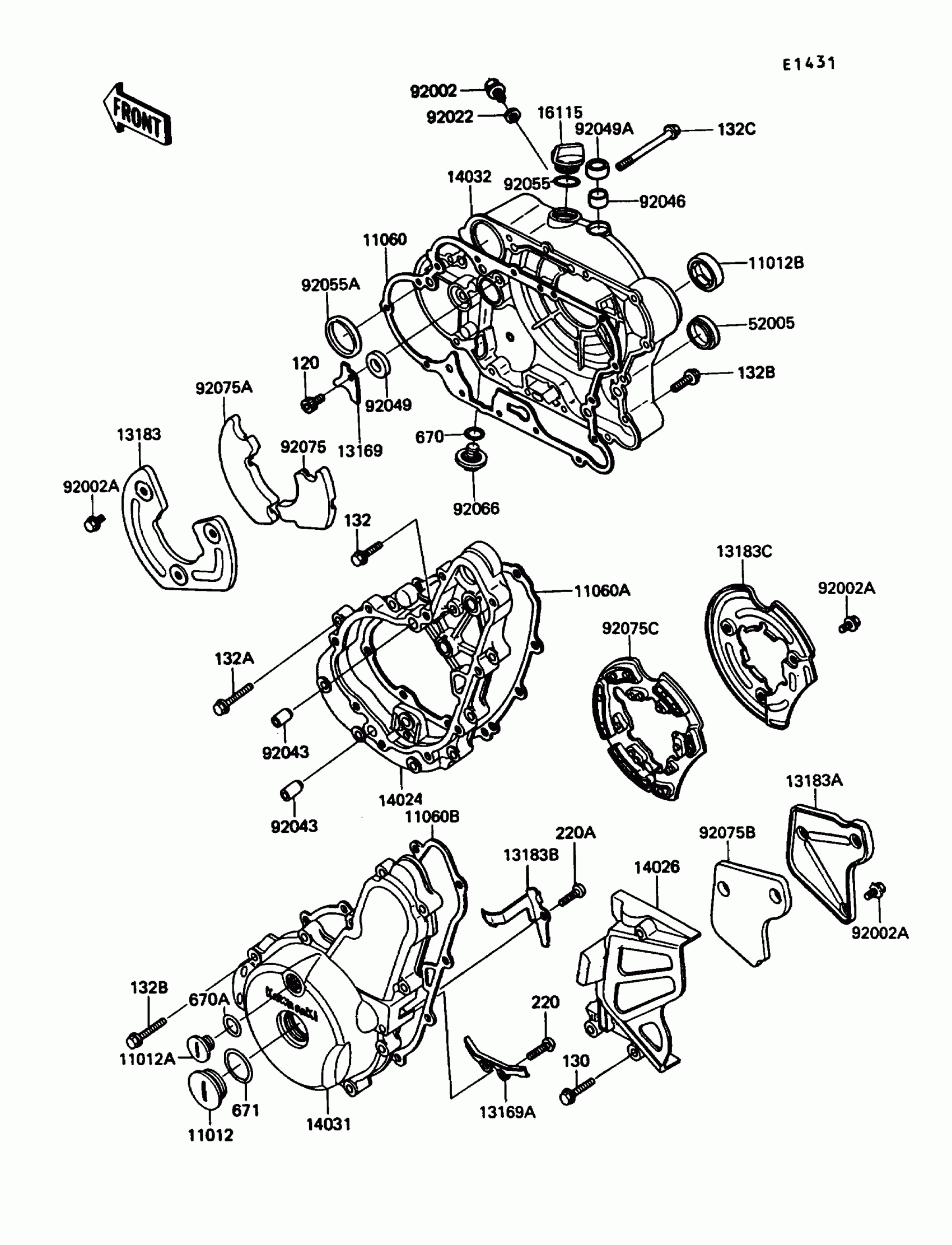

Kawasaki KLR650 Engine Cover Diagram

#

Description
Price

11012

CAP

11012-1362

$6.70

11012A

CAP,TOP MARK

11012-1363

$4.88

11012B

CAP

11012-1567

$9.49

11060

GASKET,CLUTCH COVER

11060-1111

$32.74

11060A

GASKET,GENERATOR CASE COVER

11060-1112

Unavailable

11060B

GASKET,GENERATOR COVER

11060-1113

Unavailable

13169

PLATE,OIL SEAL

13169-1735

$7.49

13169A

PLATE,PULSING COIL LEAD

13169-1882

$8.63

13183

PLATE

13183-1122

Unavailable

13183A

PLATE

13183-1133

Unavailable

13183B

PLATE,GENERATOR

13183-1144

Unavailable

13183C

PLATE

13183-1146

Unavailable

14024

COVER,GENERATOR CASE

14025-1990

Unavailable

14026

COVER-CHAIN

14026-1131

Unavailable

14031

COVER-GENERATOR

14031-1210

Unavailable

14032

COVER-CLUTCH

14032-1230

Unavailable

16115

CAP-OIL FILLER

16115-1009

$10.86

52005

GAUGE,OIL LEVEL

52005-1009

$13.87

92002

BOLT,FLANGED,6X9.5

92002-1356

$5.64

92002A

BOLT,6X8

92002-1944

$4.17

92022

WASHER,6.2X11X1

92022-304

$2.76

92043

PIN,6.2X8X14

92043-1263

$0.46

92046

BEARING-NEEDLE,HK1210

92046-1010

Unavailable

92049

SEAL-OIL,SCY 15X30X7

92049-1158

$20.47

92049A

SEAL-OIL,TB12205.5

92049-1271

$7.08

92055

RING-O,31.5X2.6

92055-049

$3.29

92055A

RING-O,62.6X66X3.1

92055-1221

$6.75

92066

PLUG,DRAIN

92066-1156

$8.93

92075

DAMPER

92075-1939

$12.86

92075A

DAMPER

92075-1940

$13.71

92075B

DAMPER

92075-1943

Unavailable

92075C

DAMPER

92075-1959

Unavailable

120

BOLT-SOCKET,6X10

120P0610

Unavailable

130

BOLT-FLANGED,6X25

130J0625

Unavailable

132

BOLT-FLANGED-SMALL,6X20

132J0620

Unavailable

132A

BOLT-FLANGED-SMALL,6X25

132J0625

Unavailable

132B

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

132C

BOLT-FLANGED-SMALL

132J0680

Unavailable

220

SCREW PAN HEAD 5X10

220B0510

Unavailable

220A

SCREW PAN HEAD 6X12

220B0612

Unavailable

670

O RING,11MM

670B2011

$0.98

670A

O RING,18MM

670B2018

$1.08

671

O RING,40MM

671B2540

$4.67
