1991 Kawasaki KLR650 Camshaft/tensioner Diagram

← All diagrams

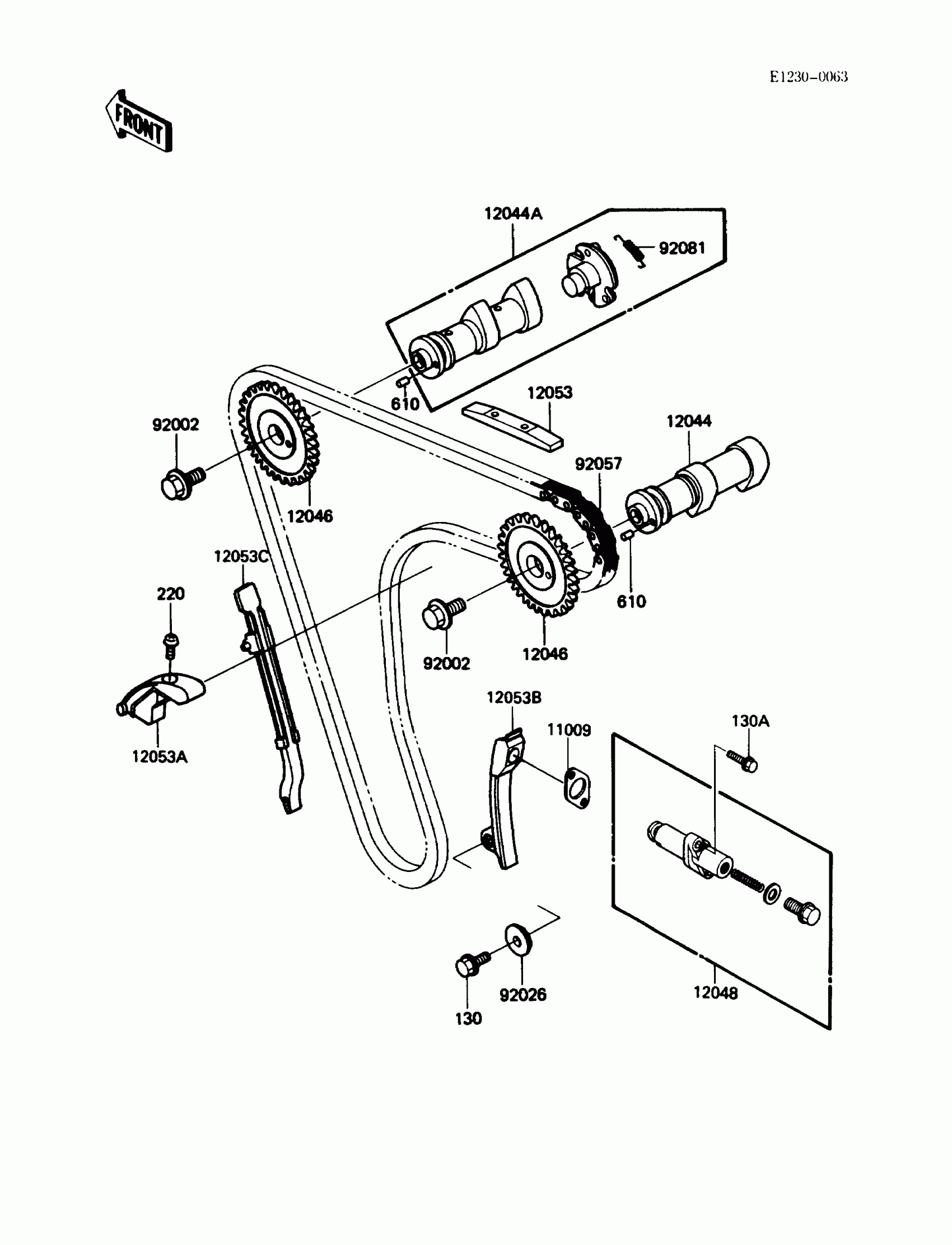

Find the part on the Camshaft/tensioner diagram for your 1991 Kawasaki KLR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Kawasaki KLR650 Camshaft/tensioner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,TENSIONER

11009-1858

1
Out of stock

12044

CAMSHAFT-VALVE,INTAKE

12044-1114

1
Out of stock

12044A

CAMSHAFT-VALVE,EXHAUST

12044-1197

1
Out of stock

12046

SPROCKET,CAMSHAFT,48T

12046-1062

1
Out of stock

12048

TENSIONER-ASSY

12048-1086

1
Out of stock

12053

GUIDE-CHAIN,UPP

12053-1107

1
Out of stock

12053A

GUIDE-CHAIN,LWR

12053-1134

1
Out of stock

12053B

GUIDE-CHAIN,RR

12053-1222

1
Out of stock

12053C

GUIDE-CHAIN,FR

12053-1223

1
Out of stock

92002

BOLT,10X23

92001-1859

1
Out of stock

92026

SPACER

92026-1146

1
Out of stock

92057

CHAIN,CAM,75RH2015-174L

92057-1226

1
Out of stock

92081

SPRING,DECOMPRESSOR

92081-1626

1
Out of stock

130

BOLT-FLANGED,8X25

130G0825

1
Out of stock

130A

BOLT-FLANGED,6X25

130J0625

1
Out of stock

220

SCREW-PAN-CROS,6X14

220B0614

1
Out of stock

610

ROLLER,4X10

610A0410

1
Out of stock
