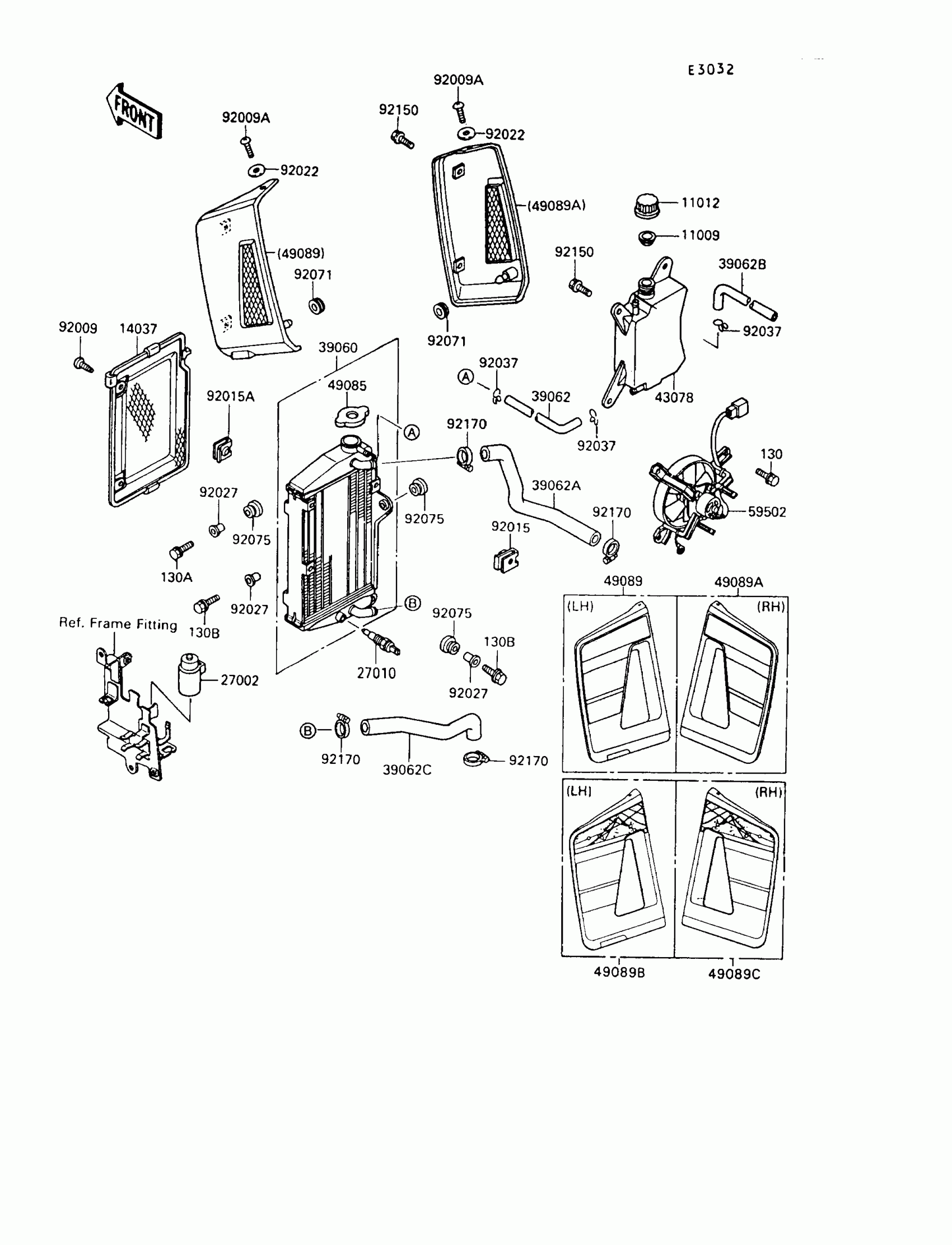

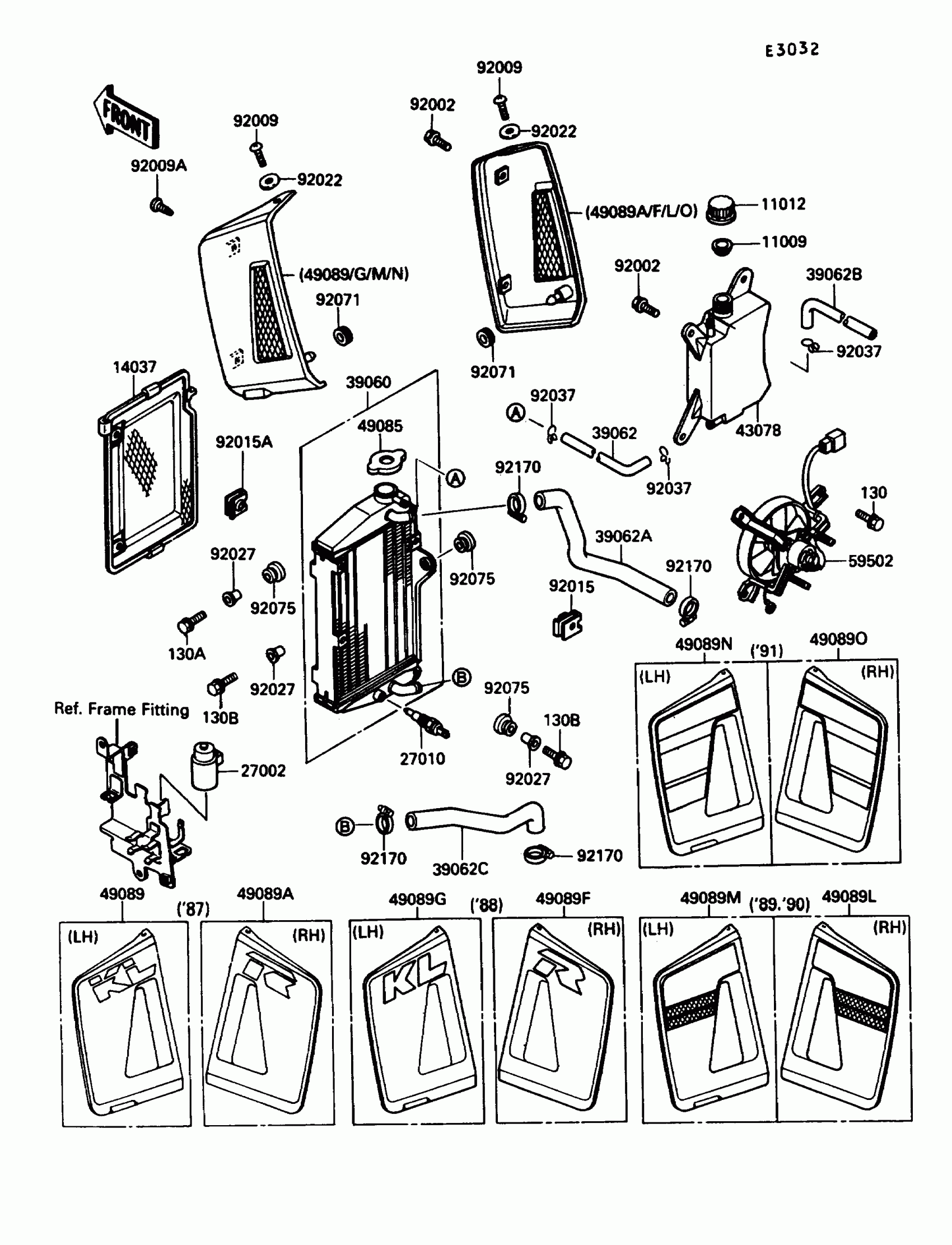

Kawasaki KLR650 Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

14037

SCREEN

14037-1088

$98.73

27002

RELAY-ASSY

27002-1051

$48.39

27010

SWITCH,FAN

27010-1167

$119.71

39060

RADIATOR

39060-1074

$559.95

39062

HOSE-COOLING

39062-1125

$21.40

39062A

HOSE-COOLING,HEAD-RADIATOR

39062-1217

$49.75

39062B

HOSE-COOLING,RESERVOIR

39062-1220

$21.40

39062C

HOSE-COOLING,RADIATOR-PUMP

39062-1243

$37.36

43078

RESERVOIR

43078-1083

$57.12

49085

CAP-ASSY-PRESSURE

49085-1003

$33.19

49089N

SHROUD-ENGINE,LH,P.WHITE

49089-5123-6F

$136.55

49089O

SHROUD-ENGINE,RH,P.WHITE

49089-5124-6F

$136.55

59502

FAN-ASSY

59502-1082

$609.59

92002

BOLT,6X16

92002-1461

$3.81

92009

SCREW,5X14,BLACK

92009-1383

$3.03

92009A

SCREW,6X12

92009-1480

$2.23

92015

NUT

92015-1487

$3.64

92015A

NUT,6MM

92015-1758

$5.15

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$2.99

92027

COLLAR,6.5X10X14.1

92027-1183

$4.18

92037

CLAMP,TUBE

92037-147

$5.61

92071

GROMMET

92071-056

$3.25

92075

DAMPER

92075-1352

$4.88

92170

CLAMP,COOLING HOSE

92170-1033

$11.50

130

BOLT-FLANGED,6X12

130J0612

Unavailable

130A

BOLT-FLANGED

130J0620

Unavailable

130B

BOLT-FLANGED,6X25

130J0625

Unavailable
