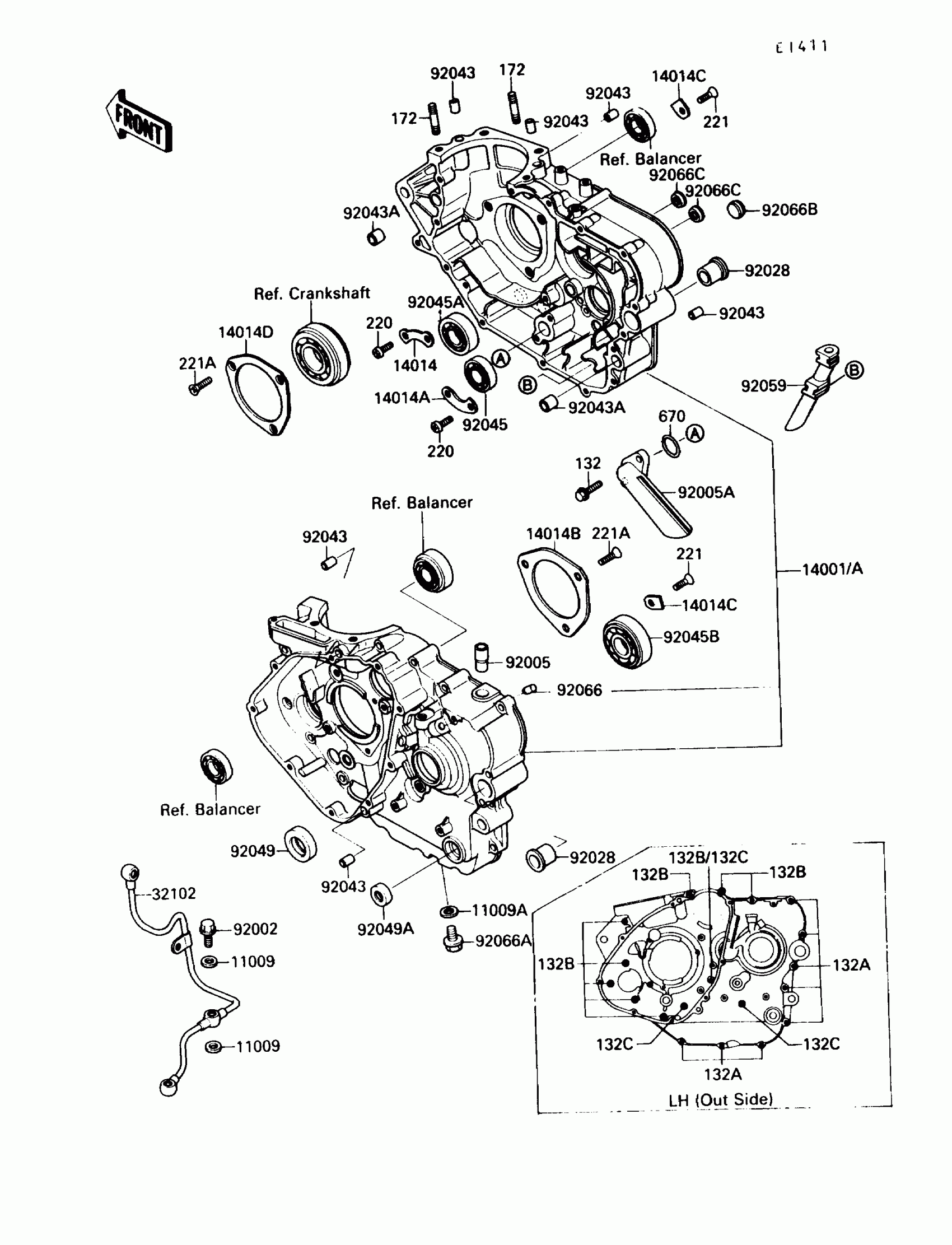

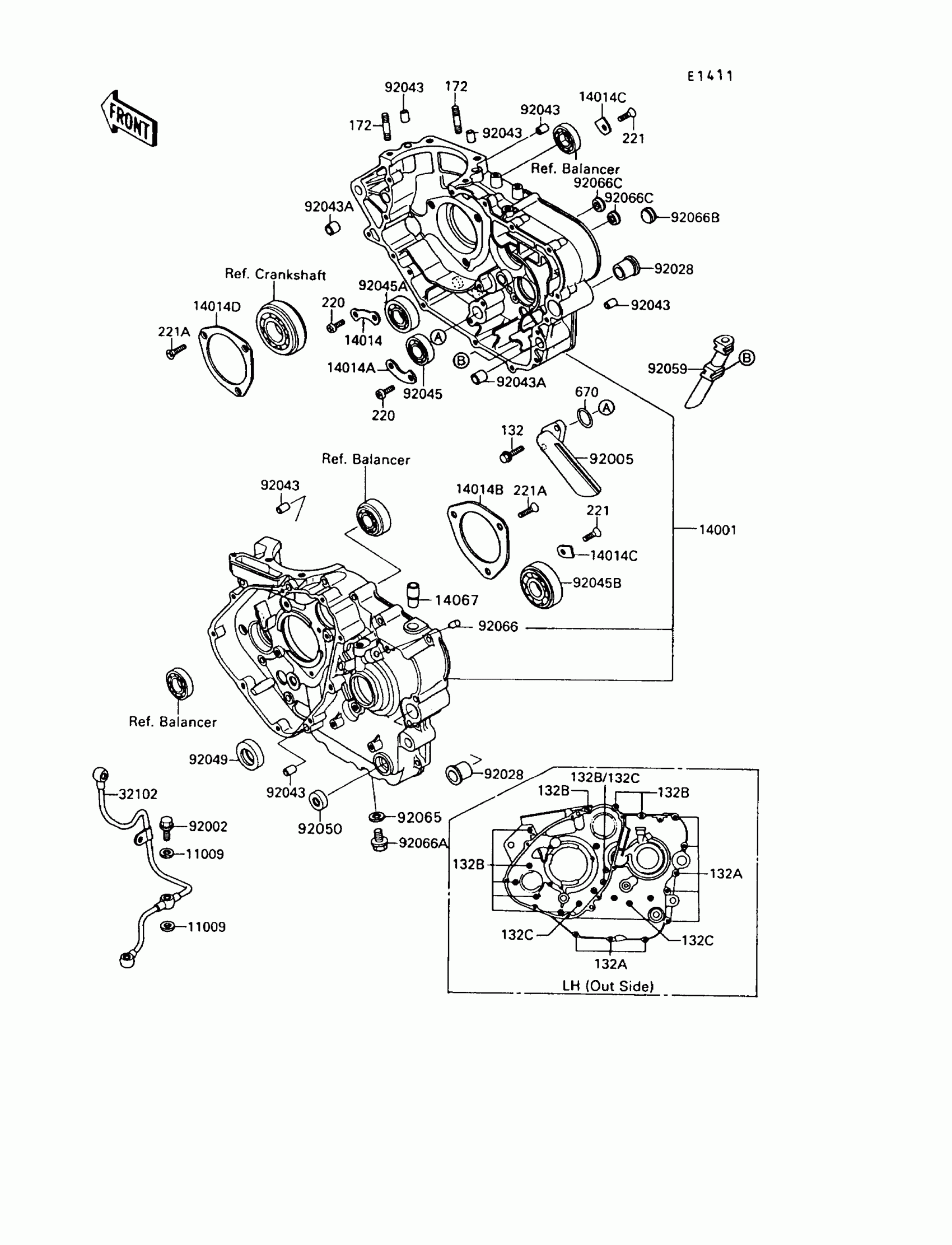

Kawasaki KLR650 Crankcase Diagram

#

Description
Price

11009

GASKET,10X14.5X1.5

11009-1105

$4.88

11009A

GASKET,12X22X2

92065-097

$0.66

14001A

SET-CRANKCASE

14001-5251

Unavailable

14014

PLATE-POSITION

14014-037

$4.08

14014A

PLATE-POSITION

14014-1015

$7.69

14014B

PLATE-POSITION

14014-1051

$36.42

14014C

PLATE-POSITION

14014-1057

$4.17

14014D

PLATE-POSITION

14014-1083

$36.42

32102

PIPE,CRANKCASE-HEAD

32102-1353

$111.49

92002

BOLT,BANJO,10X25

92002-1170

$9.22

92005

FITTING,BREATHER

14067-006

$19.78

92005A

FITTING

92005-1152

$29.14

92028

BUSHING,SWING ARM

92028-1261

$16.31

92043

PIN,6.2X8X14

92043-1263

$0.46

92043A

PIN,11.5X14X14

92043-1279

$3.81

92045

BEARING-BALL,#6905

92045-036

$22.57

92045A

BEARING-BALL,TMB205

92045-1105

$24.68

92045B

BEARING-BALL,TM-SX0597LU

92045-1127

$44.18

92049

SEAL-OIL,TC32457

92049-1159

$6.56

92049A

SEAL-OIL

92050-082

$6.55

92059

TUBE,BREATHER

92059-1833

$13.54

92066

PLUG,OIL LINE,7.2X8

92066-1012

$4.65

92066A

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

92066B

PLUG,RCA207

92066-1264

$7.88

92066C

PLUG

92066-1282

$5.66

132

BOLT-FLANGED-SMALL

132G0620

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

132B

BOLT-FLANGED-SMALL,6X50

132J0650

Unavailable

132C

BOLT-FLANGED-SMALL

132J0880

Unavailable

172

BOLT-STUD,8X22

172G0822

Unavailable

220

SCREW PAN HEAD 6X12

220B0612

Unavailable

221

SCREW-CSK-CROS,6X12

221B0612

$1.49

221A

SCREW-CSK-CROS,6X16

221B0616

$0.54

670

O RING,18MM

670D2018

$1.39
