2025 Kawasaki KLR650 Adventure ABS Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 2025 Kawasaki KLR650 Adventure ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

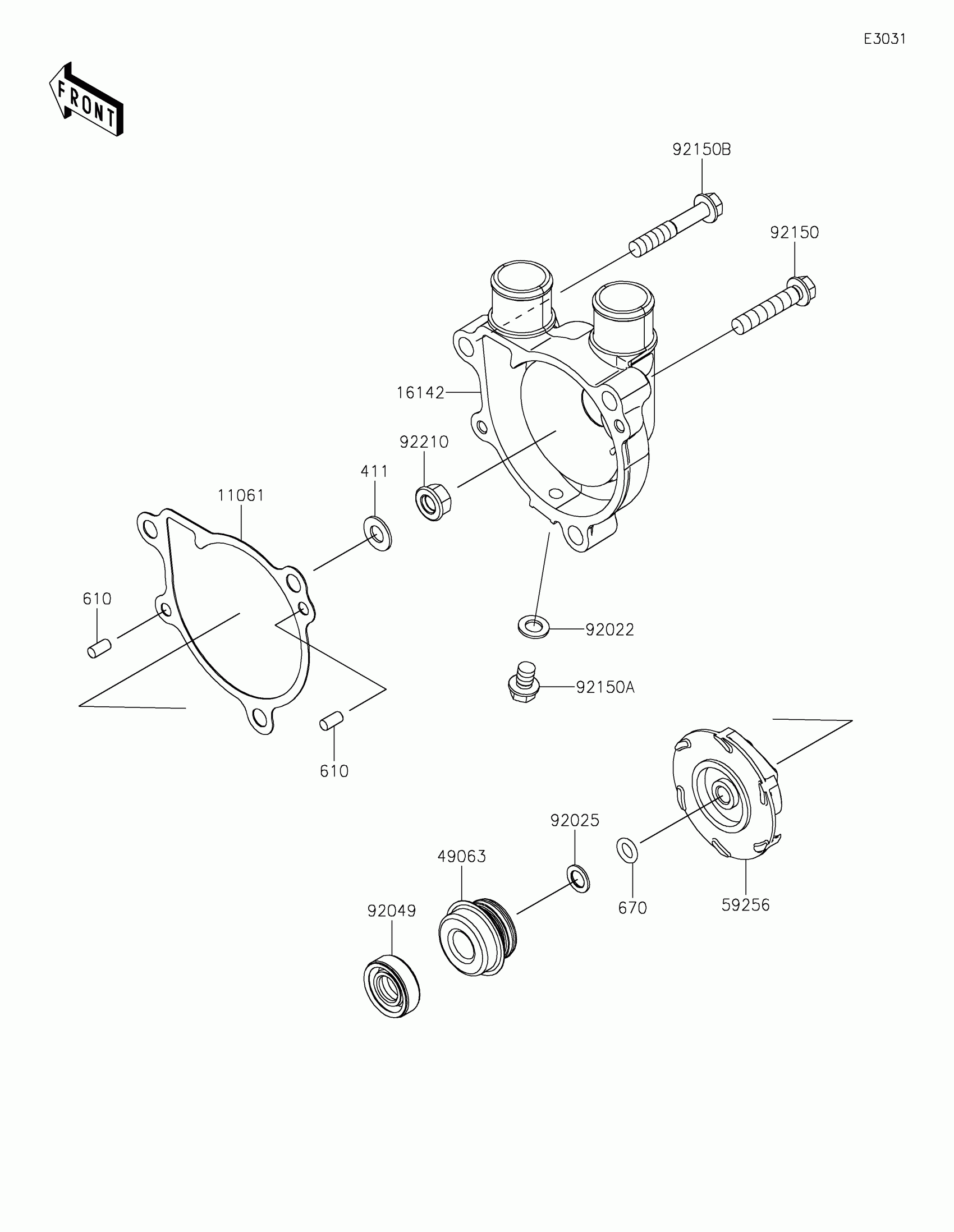

2025 Kawasaki KLR650 Adventure ABS Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,WATER PUMP COVER

11061-1485

1
Out of stock

16142

COVER-PUMP

16142-0067

1
Out of stock

49063

SEAL-MECHANICAL

49063-0002

1
Out of stock

59256

IMPELLER

59256-1055

1
Out of stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92025

SHIM,T=0.8

92025-1503

1
Out of stock

92049

SEAL-OIL,SC10227

92049-1157

1
Out of stock

92150

BOLT,6X30

92150-1021

1
Out of stock

92150A

BOLT,6X8

92150-1966

1
Out of stock

92150B

BOLT,6X35

92150-1967

1
Out of stock

92210

NUT,FLANGED,6MM

92210-0630

1
Out of stock

411

WASHER-PLAIN,6MM

411AB0600

1
Out of stock

610

ROLLER,4X8

610A0408

1
Out of stock

670

O RING,6MM

670B1506

1
Out of stock
