2025 Kawasaki KLR650 Adventure ABS Air Cleaner Diagram

← All diagrams

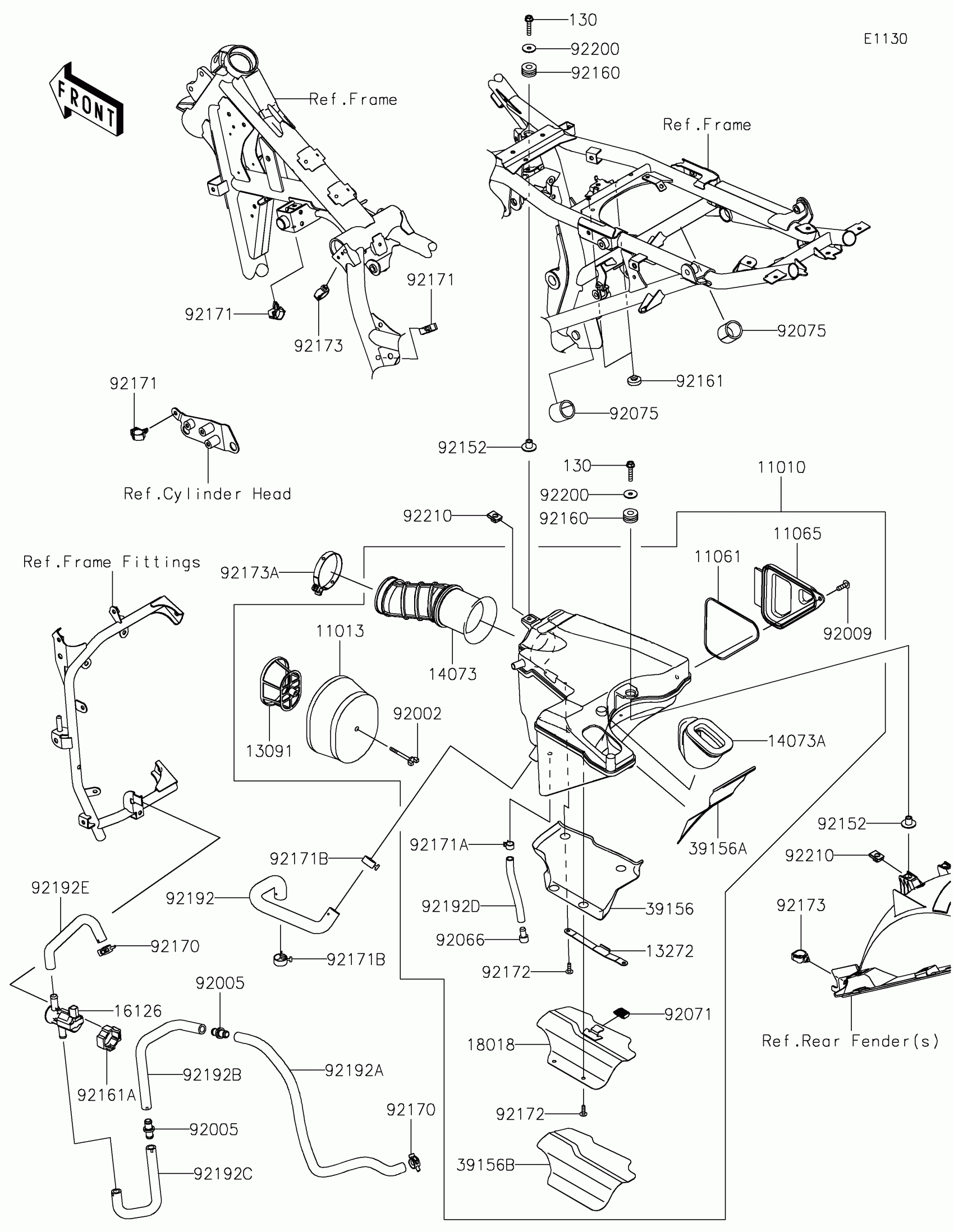

Find the part on the Air Cleaner diagram for your 2025 Kawasaki KLR650 Adventure ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 Adventure ABS Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR

11010-1805

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-1152

1
Out of stock

11061

GASKET

11061-1393

1
Out of stock

11065

CAP

11065-1373

1
Out of stock

13091

HOLDER

13091-1473

1
Out of stock

13272

PLATE

13272-3875

1
Out of stock

14073

DUCT

14073-0993

1
Out of stock

14073A

DUCT

14073-0994

1
Out of stock

16126

VALVE,AIR SWITCHING

16126-0033

1
Out of stock

18018

PLATE-HEAT GUARD

18018-0641

1
Out of stock

39156

PAD

39156-2760

1
Out of stock

39156A

PAD

39156-2761

1
Out of stock

39156B

PAD

39156-2793

1
Out of stock

92002

BOLT

92002-1904

1
Out of stock

92005

FITTING

92005-1379

1
Out of stock

92009

SCREW

92009-1460

1
Out of stock

92066

PLUG,DRAIN,8.5X15

92066-0127

1
Out of stock

92071

GROMMET

92071-0786

1
Out of stock

92075

DAMPER,25X31X30

92075-1906

1
Out of stock

92152

COLLAR,6.5X10.5X13.1

92152-0547

1
Out of stock

92160

DAMPER

92160-1162

1
Out of stock

92161

DAMPER

92161-0336

1
Out of stock

92161A

DAMPER,ASWV

92161-0499

1
Out of stock

92170

CLAMP

92170-1118

1
Out of stock

92171

CLAMP,BRAKE HOSE

92171-0316

1
Out of stock

92171A

CLAMP,12MM

92171-1870

1
Out of stock

92171B

CLAMP

92171-1890

1
Out of stock

92172

SCREW,TAPPING,5X16

92172-0280

1
Out of stock

92173

CLAMP,HOLDER CLIP

92173-0868

1
Out of stock

92173A

CLAMP,62MM

92173-0922

1
Out of stock

92192

TUBE,BREATHER

92192-2463

1
Out of stock

92192A

TUBE,FITTING-A/C

92192-2464

1
Out of stock

92192B

TUBE,FITTING-FITTING

92192-2465

1
Out of stock

92192C

TUBE,ASWV-FITTING

92192-2466

1
Out of stock

92192D

TUBE

92192-2493

1
Out of stock

92192E

TUBE,ASWV-REED VALVE

92192-2500

1
Out of stock

92200

WASHER,6.5X22X1.6

92200-1087

1
Out of stock

92210

NUT,6MM

92210-0474

1
Out of stock

130

BOLT-FLANGED,6X30

130BB0630

1
Out of stock
